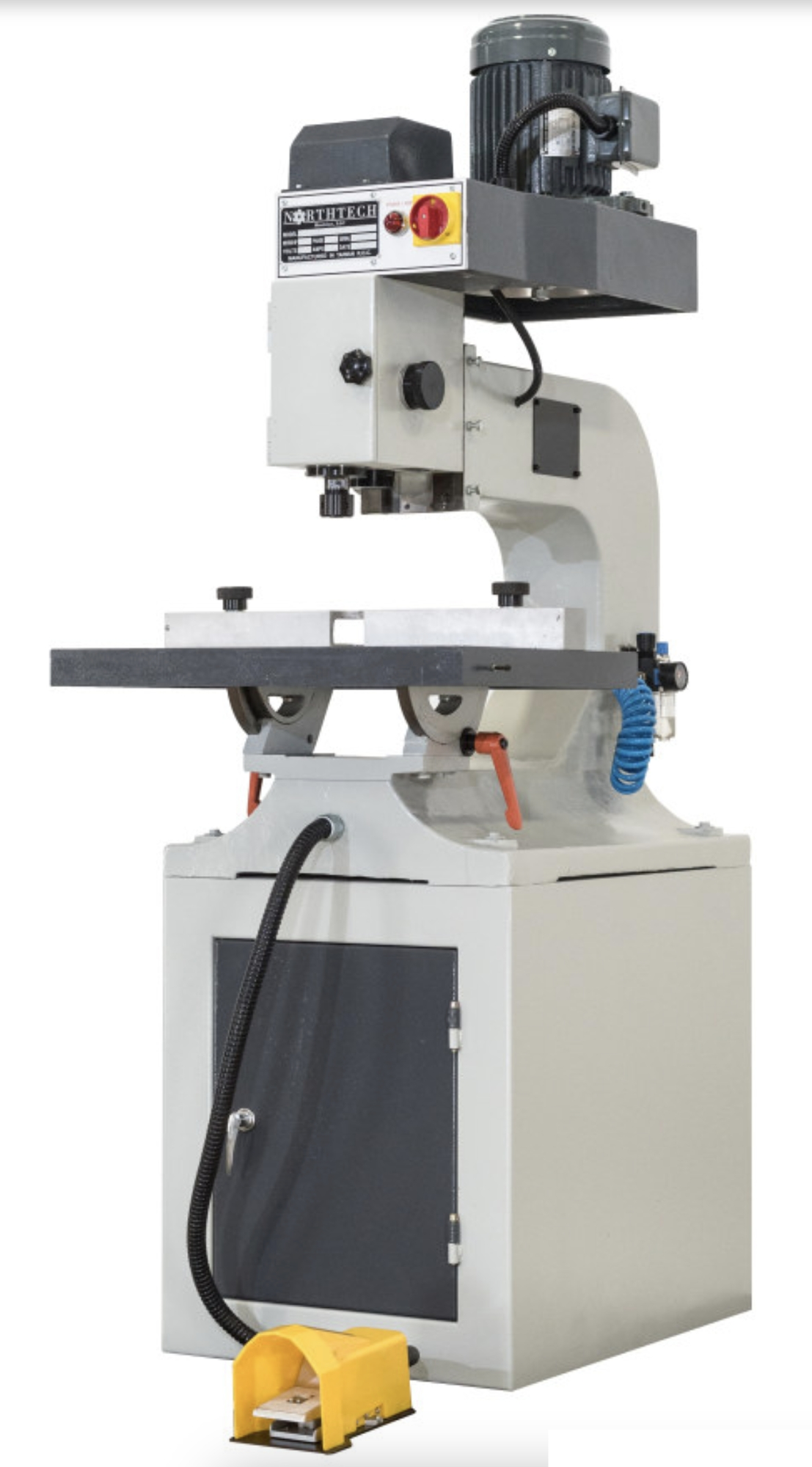

NEW NORTHTECH NT-555

Northtech model NT-555 Overarm Pin Router
Features:
Spindle Motor: available 3 HP single-phase 230V only, or 5 HP three-phase 230V only
Spindle Speed: 18,000 RPM for single-phase model, 10,000 and 18,000 RPM for three-phase model
Spindle Travel: pneumatic 3-3/8" vertical stroke
Forward Tilting Table: 0 to 45-degrees
Three depth-of-cut adjustments easily set with turret gauge
Pneumatic foot control of spindle
Adjustable plunge speed
Oiler to facilitate smooth movement of spindle

Standard Equipment
Precision high speed spindle bearings
1/4", 3/8", and 1/2" guide pins included
Guide fence with adjustable stop
Blow gun and hose for detail cleaning
Comes with tools and tool box

Specifications:
Table Size: 18" x 24"
Table Size with Extensions: 40" x 24"
Spindle to Table Distance: min. 1", max. 7-1/2"
Distance Spindle to Column: 22"
Vertical Head Adjustment: 3-3/8"
Overall Dimensions: 40" x 24" x 71"
Net Weight: 625 lbs.
