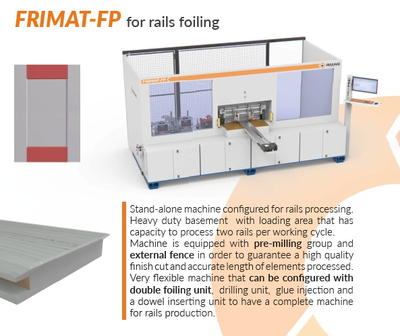

Friulmac Frimat-FP-3WS Foiling Machine for Profile Wrapped Rails

Fruilmac Frimat-FP-3WS
The Purpose of the machine is to perform precision machining such as milling or mortising of Profiled-Wrapped Cabinet Door Rails, plus Foiling
Working Dimensions
Min-Max Length: 2"-59"
Min-Max Width: 1.5"-7.9"
Min-Max Thickness: 0.5-1.5
Working Units:

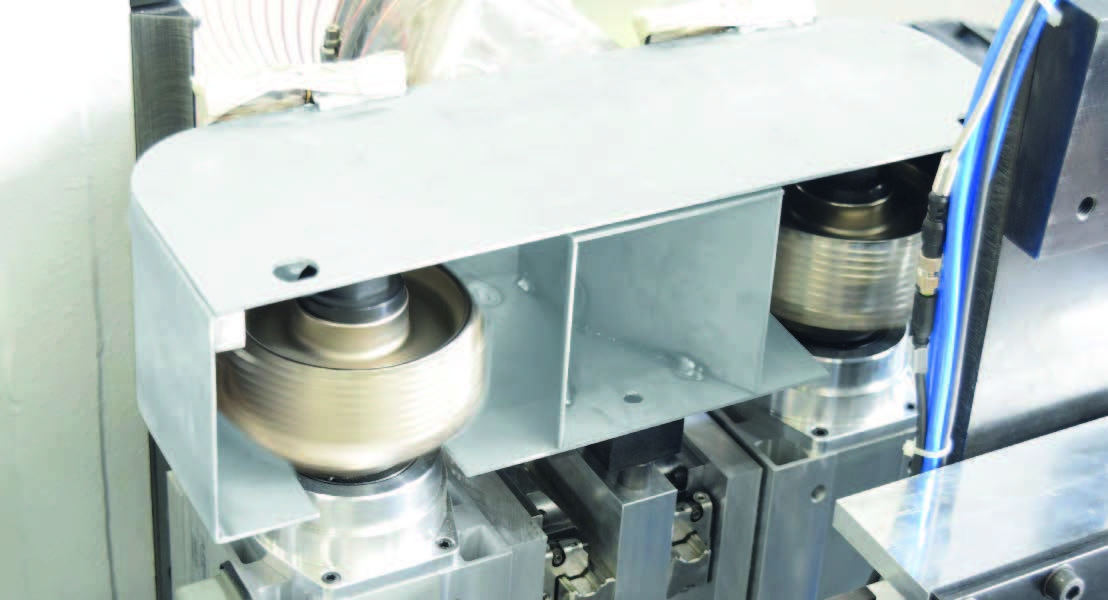

Upper/Lower Edge Units (CNC): Electric Motor - 5 kW (6.7HP) @ 9000-12000.

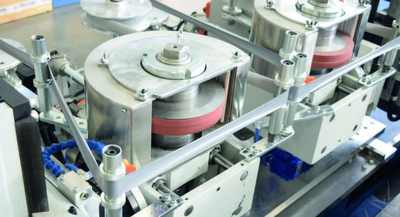

Thermoprinting Unit T "Borgonovo" (2nd & 3rd Station)
External Diameter - 200mm (7.875")
80 Shore Buffer Diameter - 190mm (7.5")
Copier Diameter - 200mm (7.875")
No. Resistances - KW 0.5x6
Rotation Motor Unit Power - 0.09 kW
Motor Power - 0.09 kW
Pre-Torque Head Motor Power - 0.22 kW
Total Machine Power - 13 kW
Full Load Current - 24 Amp
Working Air Pressure - 6 Bar
Pedal Safety Switch.
Push Button Controls
HMI Control Panel
Safety Enclosure
Current Voltage: 460V 3PH
