Friulmac Frimat-EB Edgebanding Machine for Profile-Wrapped Stiles

Friulmac Frimat-EB

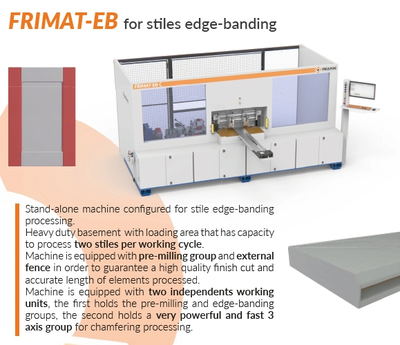

Stand-Alone Machine Configured for Stiles Edgebanding Processing
Working Dimensions:
Min-Max Length: 3.5" - 59"
Min-Max Width: 1.5" - 7.9"
Min-Max Thickness: 0.5" - 1.5"

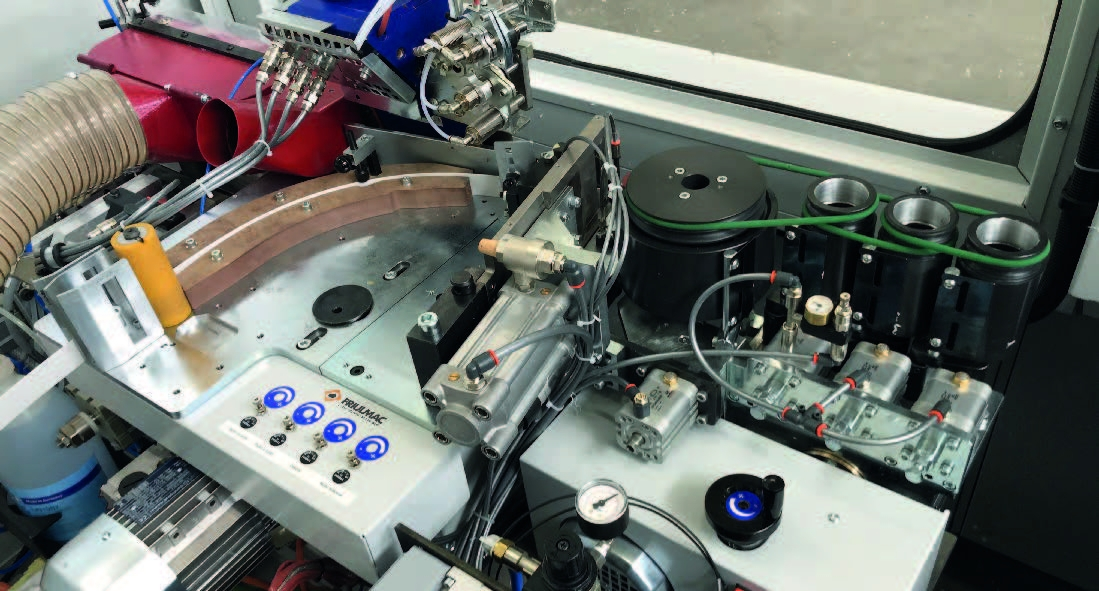

Working Units:
Max Roll Diameter: 2.625"
Independent Glue Spreader: Glue Type - EVA
Automatic Feed Speed Syncronization
Pneumatic Guillotine
Automatic Edge Detection
Rubber Roll Edge Applicators
3 Steel Rolls Edge Fixing
Min-Max Edge Thickness: 0.3mm - 3mm
Max Feed Rate: 49.2 Ft/Min
Cutting Accuracy @ 49.2 Ft/Min: +/- 3mm
Min-Max Edge Height: 14mm - 45mm
Min Edge Length: 60mm
Total Unit Power: 27 kW
Full Load Power: 52 Amp
Working Air Pressure: 6 Bar
Push Button Controls
HMI Control Panel
Safety Enclosure
Current Voltage: 460V 3PH
