NEW OMEC F13S

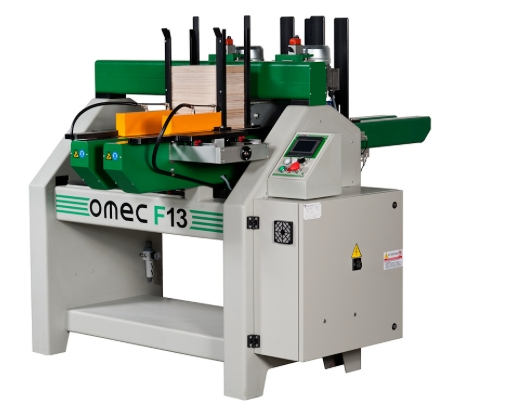

Omec Model F13S Automatic Milling Machine
Technical Data:
Power installed of machine: 4.55 HP
Working pressure: 0.7 Mpascal
Number of blades: 2
Blade revolutions: 5,600 RPM
Position of grooves: Variable
Piece production: 1200 n/h
Workpiece Limits
Lengths: Min. 40mm Max. 600mm
Width: Min. 40 mm Max. 850mm
Thickness: Min. 5mm Max. 17mm
Groove Width: Min. 3mm Max. 12mm
Distance from Edge: Min.0mm Max. 150mm
Standard Equipment
Tool kit for adjustments and maintenance
User's and instruction manual
Automatic dado or rabbet milling machine has been designed to produce bottom grooves for box covers or inset slots for bottle racks
Two blades for cutting slots in various dimensions and positions
The machine cuts single pieces
Touchscreen control panel with easy data entry and 40-file stored memory
Controlled by a PLC programmed for the maximum flexibility and highest machining speedAdjuster shafts and position indicators.
