NEW OMEC SA

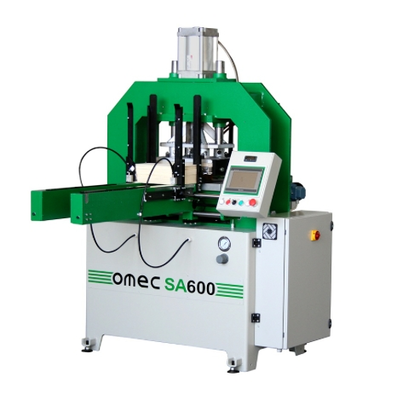

Omec Model SA 600 Automatic Hot Stamping Press
Technical Data:
On board machine installed power: 8.5 Kw
Working pressure: 0.7 MPascal
Stamping pressure: 120 MPascal/kg
Travel of the pressing head: 60 Mm
Nominal cycles/hour: 700 n/h
Workpiece Limits
Draw Length: min. 80mm max. 400mm
Draw Width: min. 200mm max. 600mm
Draw Thickness: min. 5mm max. 30mm
Standard Equipment
Tool Kit for adjustments and maintenance
User's and instructions manual
Automatic stamping press was designed for the press-stamping of covers for wine crates and drawer sides on pieces of furniture

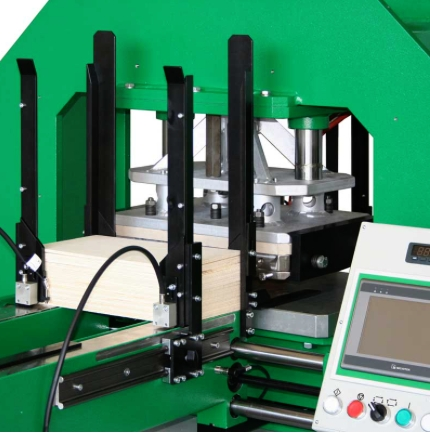

Features a pusher unit with a heating plate that is suitable to obtain burn effects on wooden items
Machines single pieces

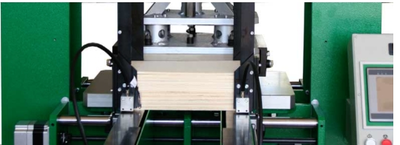

The pieces are fed out of the in feed magazine to the blocking zone, then they undergo the pressing cycle, they are unblocked and finally fed to the out feed magazine stacker: and the whole working cycle is automatic
Controlled by a pushbutton panel and a control panel
Controlled by a CNC system that is programmed to achieve maximum flexibility and the highest machining speed
The only necessary manual adjustment is the work piece length
Press is fitted with a quick-connect/disconnect system for relief plates
