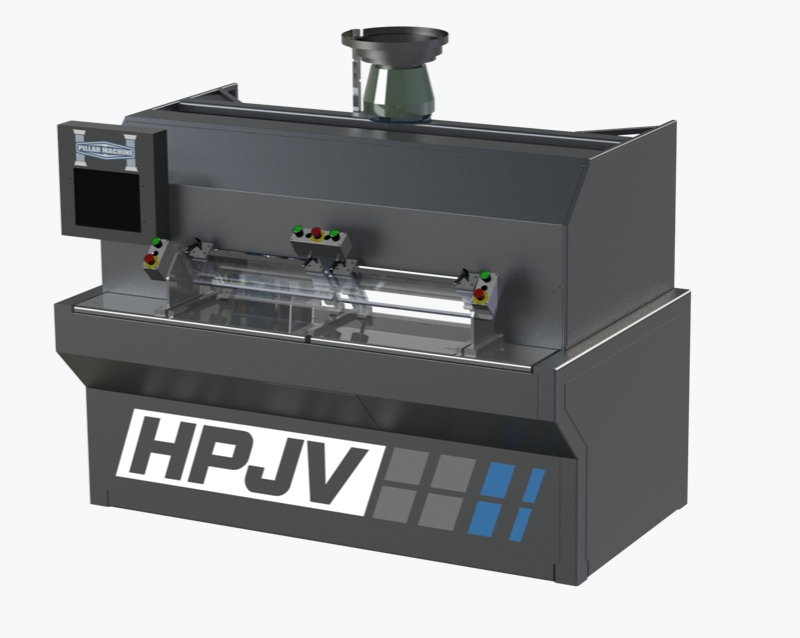

NEW PILLAR HPJV

Pillar Model HPJV Horizontal/Vertical Bore and Dowel
The HPJV machine is a horizontal and vertical point to point bore and dowel insertion machine center used for case construction in cabinet or furniture manufacturing
The HPJV has separate independent horizontal and vertical spindles allowing machining in both positions to happen in one operation
This lends itself to drawer box construction as well as MiniFix or Cam Lock hardware
With the HPJV, you get quick and accurate assembly, gaining production times on CNC routers and point to points by shifting horizontal boring to the HPJ
It is designed to CNC position the spindle, bore a hole, then CNC position the inserter, inject glue or water, then insert a dowel into the hole
While one part is being machined, the other 3 zones can be loaded and queued for machining
All of this is done during a cycle time of less than one second
The HPJV has a 49" working table with 4 work zones
Standard Features
CNC controlled X-Axis
3 HP Direct Drive Horizontal Spindle
3 HP Direct Drive Vertical Spindle
49" Work Are with 4 Work Zones
Sealed Glue System
15" Color Touchscreen
8mm Dowel Inserter
18" Dowel Bowl
One 3" dust port
350CFM
Options
96" Work Area
Barecode Reader
Dowel Diameter from 6mm to 5/8"
Dowel Length from 30mm to 5"
Slot Mortising
Servo Controlled Z and Y Axis
