NEW PILLAR HPLD

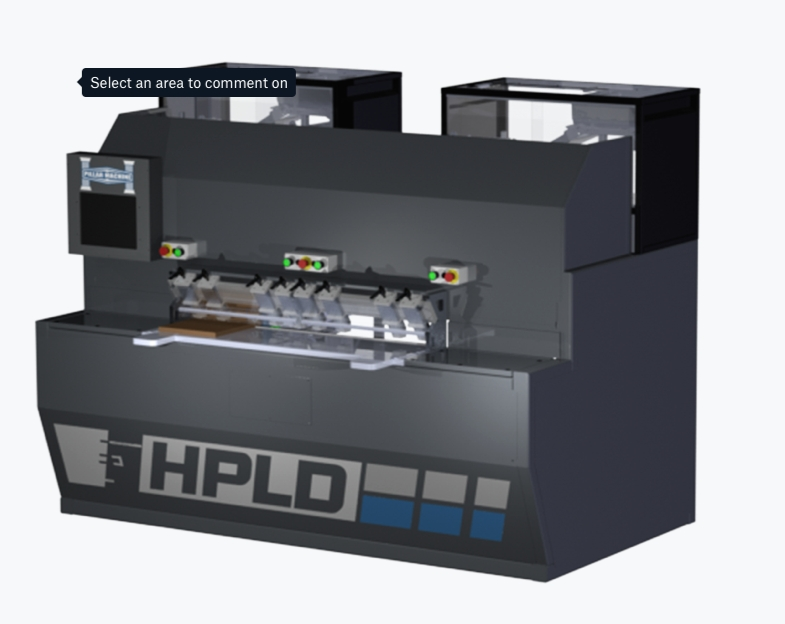

Pillar Model HPLD Horizontal Point To Point Lockdowel Inserter
The HPLD is a horizontal point to point Lockdowel inserting machine
This machine will insert H-clips, Channel Locks and Spring Pins with ease
Using CNC control, this machine positions the drilling spindle to bore holes and insert the Lockdowel hardware
Using the HPLD will allow you to produce three times as
much product without needing more employees
There's no need for glue or clamping with the HPLD and Lockdowel system
Lockdowels help reduce assembly time by 80% or more
Putting together cases, cabinets and furniture should take minutes, not hours
Cabinets built with EClips are SEFA 8 tested and passed
They are in compliance with AWI standards
You also have the ability to link the HPLD through Cabinet Vision's screen-to-machine software
Standard Features
CNC X-Axis
15" Touch Screen
4 Work Zones
3 HP Direct Drive Routing Spindle
Digital Readouts for height and depth
49" Work Area
Lockdowel Eclips, feeders and inserters
Lockdowel Spring Pin, feeder and inserter
One 3" dust port
CFM 350
Options
96" Work Area
Laser Part Measuring
Barcode Reader
Servo Controlled Y and Z Axis
Wooden Dowel Insertion Unit
