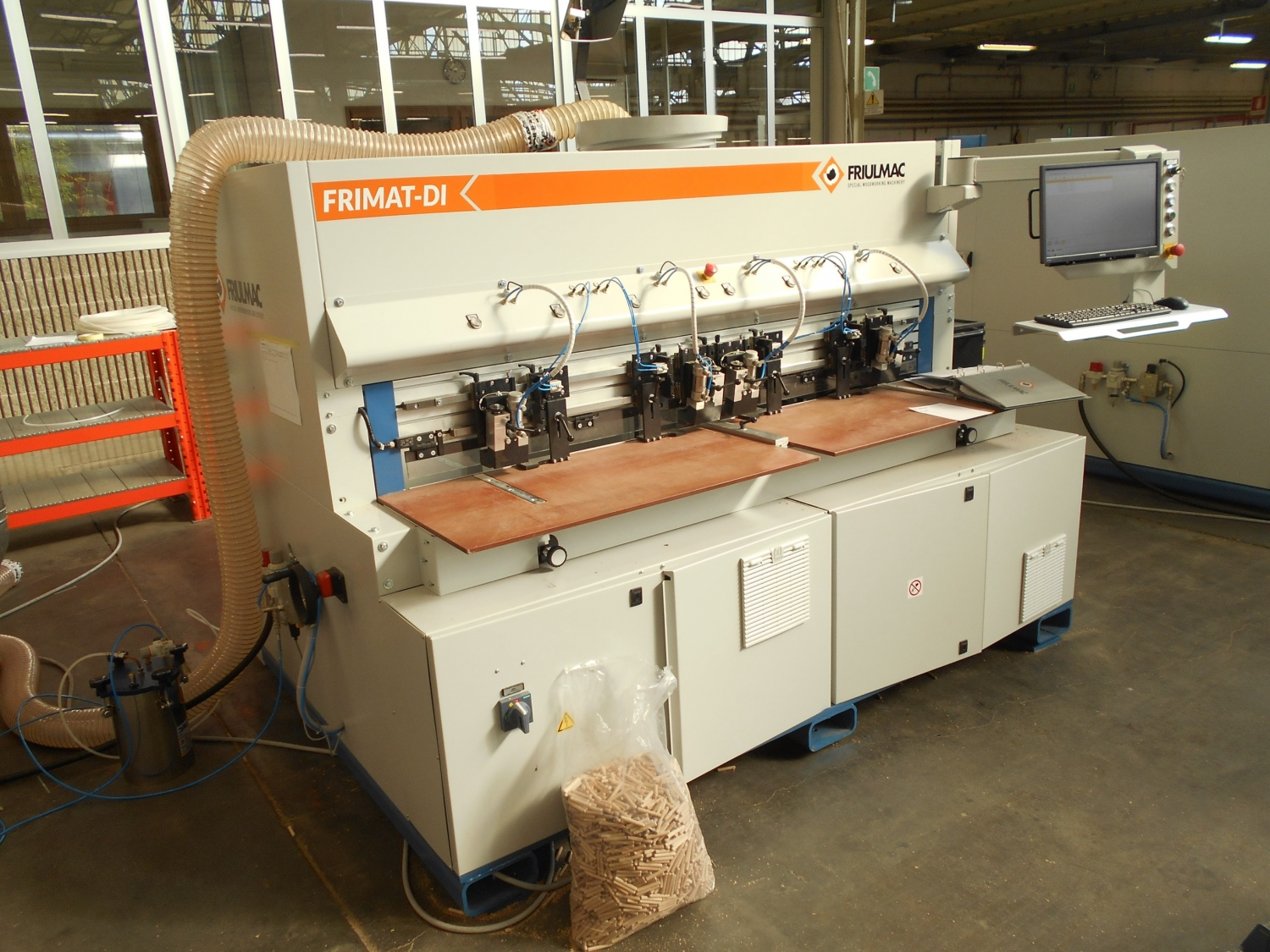

Friulmac Frimat-DI CNC Drilling and Dowel-Insertion Machine

Friulmac Frimat-DI
Specifically Designed for Drill and Dowel Processing for Kitchen Cabinet Doors Stiles & Rails
Loading Area Specifically Designed to Hold Either Four Rails, Two Stiles, or One Extra Long Stile
Working Dimensions
Min-Max Length: 2.5" - 59"
Min-Max Width: 1.5 - 38"
Min-Max Thickness: 0.5" - 1.5"

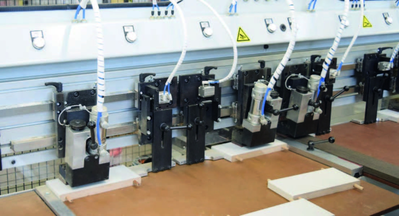

Working Units:
Upper/Lower Edge Units (CNC) - 1.5 kW (2HP) @ 9000-12000 RPM
Glue Insertion Unit R-4
Tank Capacity: 2 Kg
Glue Type: Ac. Vinile
Minimum Film Formation Temperature - 3 Degrees Celsius
Glue Viscosity - mPa.s 400/500
Ph Value (20 Degrees Celcius) - 6-7.5 Ph
Manual tilt - +/- 5 Degrees

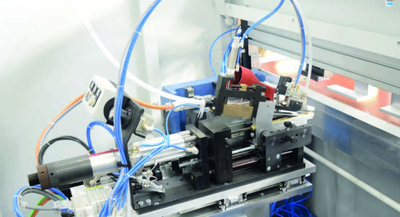

Dowel Insertion Station
Maximum Capacity of Dowel Tank - 5 Kg
Minimum Distance between 2 Consecutive Dowels - 16mm
No. of Dowel Inserts - 1
Tolerance of Dowel on Diameter - +/- 0.1
Tolerance of Dowels on Length - +/- 0.2
Total Unit Power - 6 kW (8Hp)
Full Load Current - 13 Amp
Working Air Pressure: 6 Bar
Safety Enclosure
Push Button Controls
HMI Control Panel
Current Voltage - 460V 3Ph
