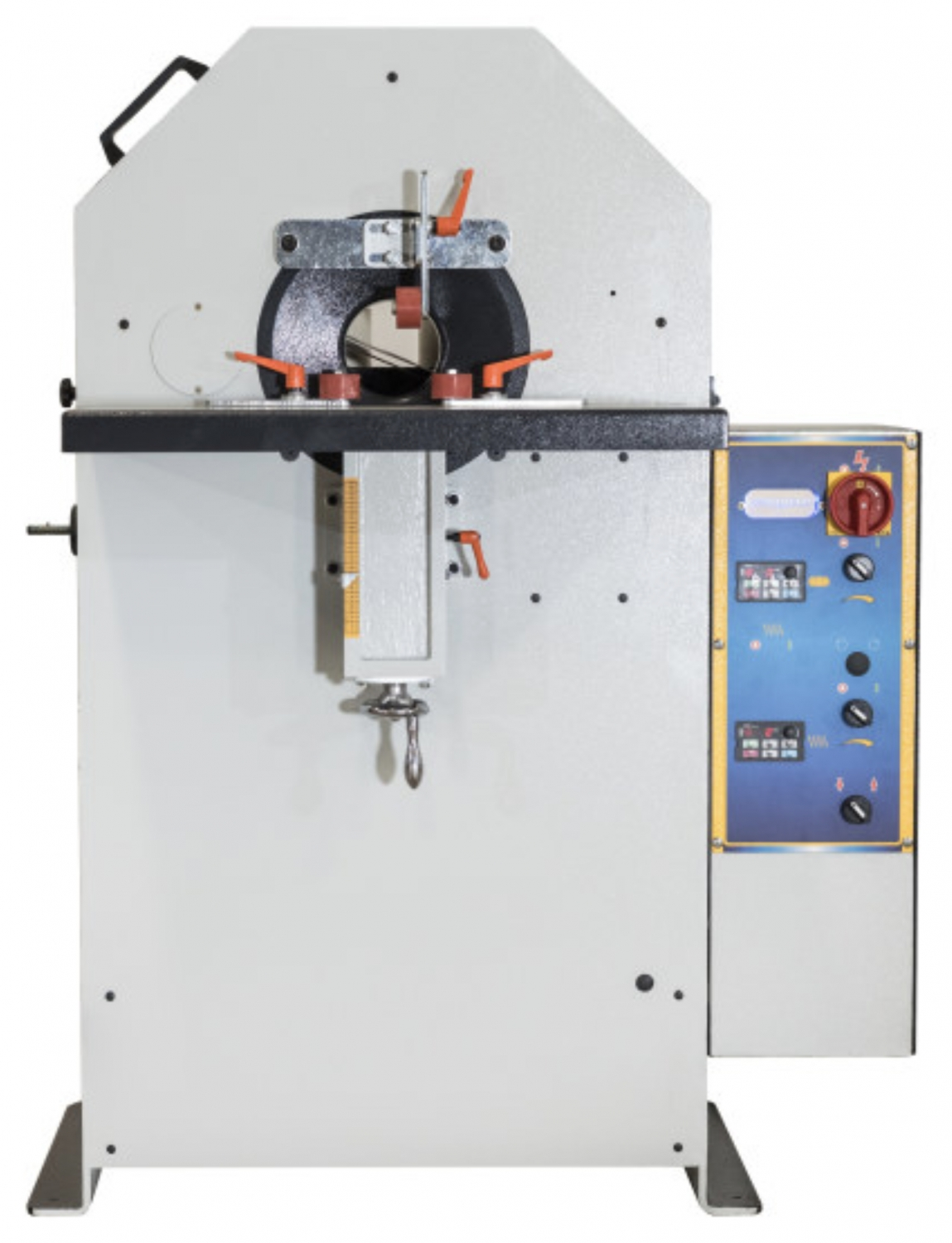

Northtech NT ES43 4-Sided Straight and Curved Part Edge Sander

Northtech NT ES43 4-Sided Straight and Curved Part Edge Sander
2 Belt with 360° rotation
(1) 1HP sanding motor
Amperage requirements: 230V/460V 3PH: 4/2 AMPS
(1) 1/4HP 0~11M/min (0-35fpm) variable speed feed motor
Min. working length: 350mm (13-3/4") for straight workpiece
200mm (7.8") radius and greater
Min. workpiece curve: 400mm (8") radius and greater
Round rod working diameter: 10~75mm (3/8 - 3")
Sanding belt size: (2) 1220mm x 50~90mm ((2) 48" x 2 - 3-1/2")
Variable rotational belt speed control: 0~1102M/min (0-3600 FPM)
Variable feed speed control 0-35FPM
(1) 5" dust port requiring 681 CFM @ point of extraction
33-1/2" passline
Infeed table 12" x 24-1/2"
Outfeed table: 12" x 24-1/2"
Net weight: 882 lbs.
Gross weight: 993 lbs.
Machine/Packingdimensions(L)x(W)x(H): 32"x36"x48"/38"x42"x53"
(1) Tool box
Warranty is one year parts
Northtech offers a full line of dust collectors for any application.
All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble free start up.
