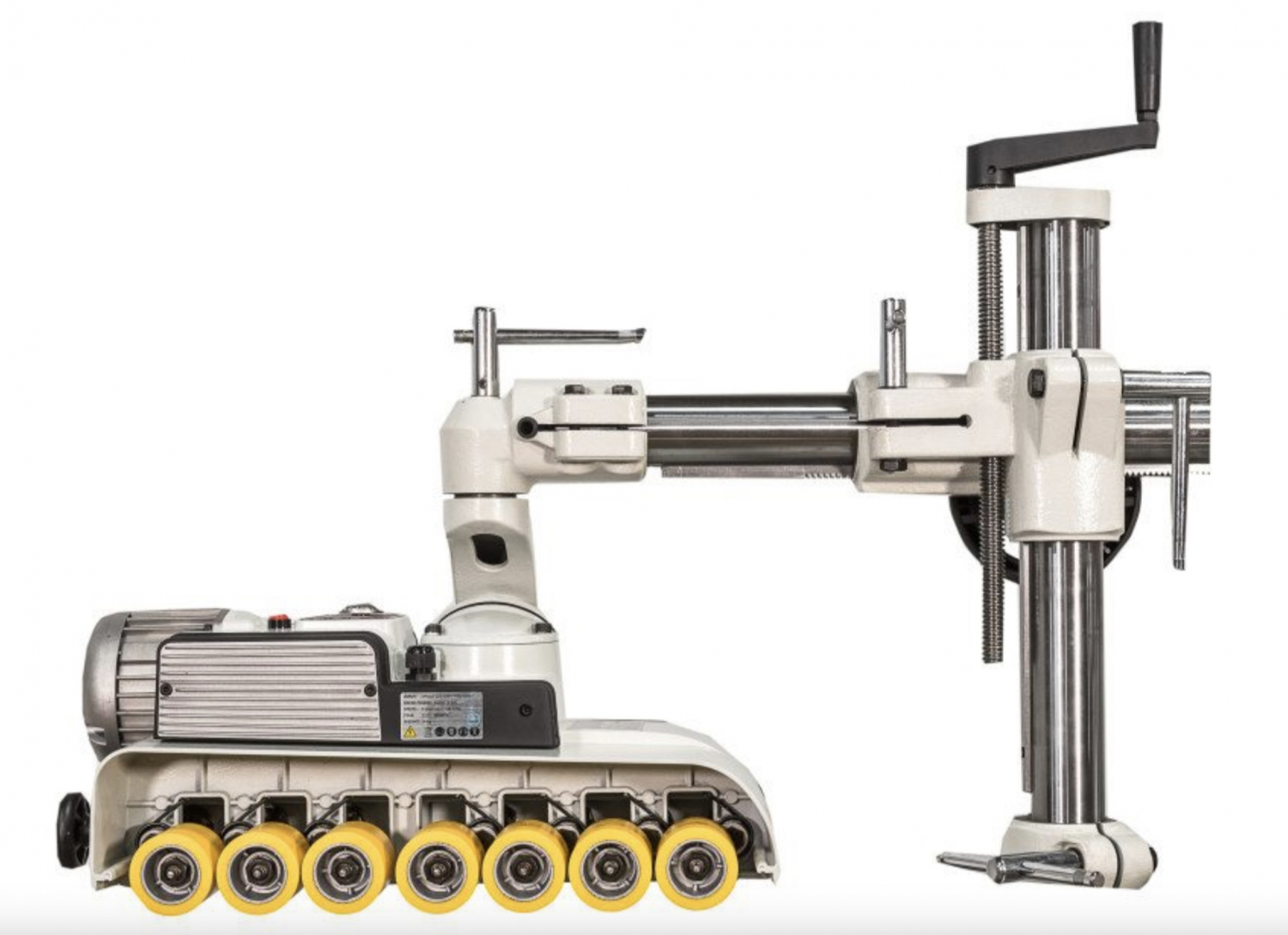

NEW NORTHTECH NT-SF70

NT-SF70 STOCK FEEDER 7 ROLLERS WITH UNIVERSAL STAND
Northtech Stock Feeders are some of the strongest and longest lasting feeders available. Stock feeders, sometimes called power feeders, are typically used as an overhead drive system to power product across a surface or roll case. In many applications, it can also be used on the edge of materials. While most commonly paired with a process such as profiling, sawing or shaping, o!en the stock feeder is merely used as a drive to move or advance materials. The NT SF70 utilizes a low profile (7) spring loaded roller design, making it ideal for smaller part feeding. This machine comes standard with a universal stand that has rack and pinon positioning, head pivoting rotation, and a cast iron locking system. The 2/3HP forward/reversing feed with infinitely variable transmission speed allows for precise feed rate control. The non marking rollers make it ideal for most any type of material.
MACHINE HP: 1/2 HP
REVERSIBLE MOTOR: Yes
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: .7/1.4 Amps
FEED SYSTEM: (7) Feed Wheels
DRIVE SYSTEM: Geared Chain Drive
FEED SPEED RANGE: 8-85 FPM
VARIABLE FEED SPEED: Inverter Controlled
REVERSIBLE FEED: Yes
TOTAL MACHINE HP: 1/2 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: Line Voltage
MIN. WORKING LENGTH: 2-3/4''
MAX. WORKING WIDTH: 17'' Horizontal Travel
MAX. WORKING THICKNESS: 7-1/8'' Vertical Travel
DIGITAL DISPLAY: Feed Speed
HOLD DOWN STYLE: (7) Rubber Rollers
FRAME CONSTRUCTION: Cast Aluminum
DECIBEL RATING: 52 dB
NET WEIGHT: 117 Lbs.
GROSS WEIGHT: 124 Lbs.
MACHINE DIMENSIONS: Feeder 20'' x 11'' x 8'' Stand 32'' x 10'' x 30''
PACKAGING DIMENSIONS: Feeder 25'' x 14'' x 12'' 56 Lbs. Stand 30'' x 13'' x 12'' 68 Lbs.
