USED DOALL 2013-20
Overview

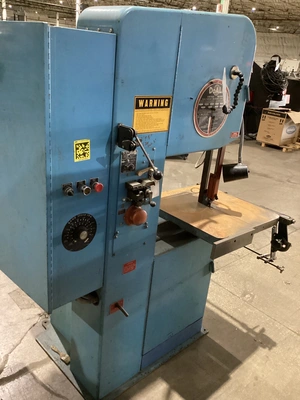

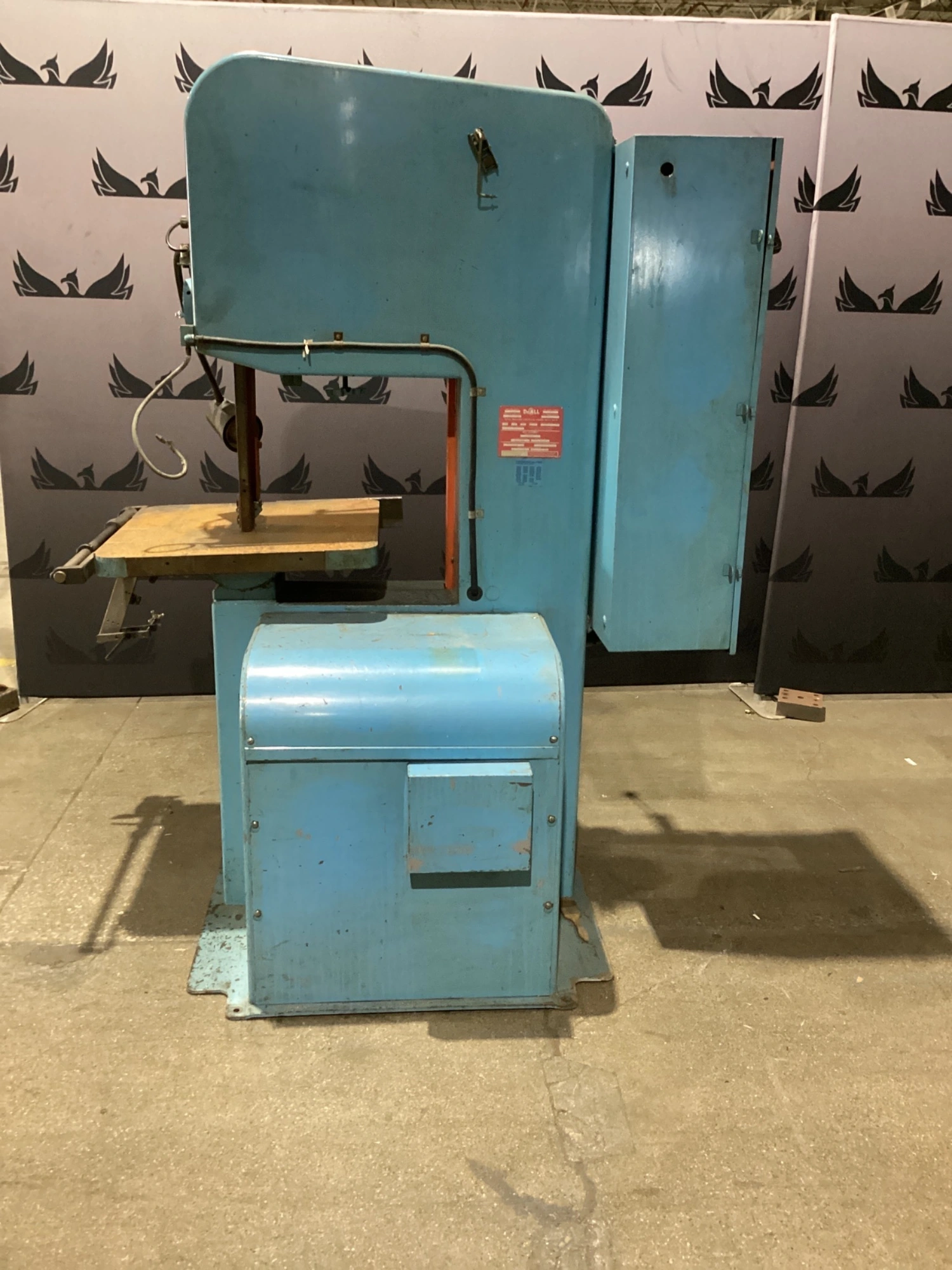

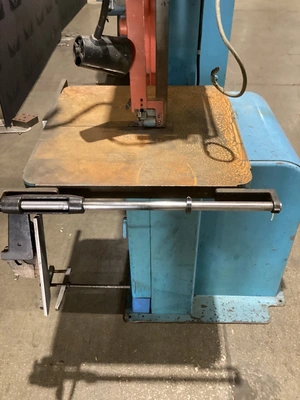

This listing is for a USED DoAll 2013-20 Vertical Contour Band Saw. The 2013-20 is a floor-standing metalworking machine used for contour cutting, profiling, trimming, and precision sawing operations. This machine incorporates variable band speed adjustment, an integrated DBW-15 blade welder, and a welded steel frame suitable for fabrication, toolroom, and production environments.
Specs

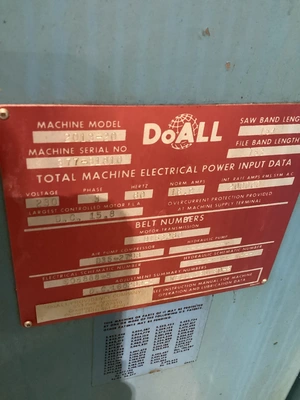

Manufacturer: DoAll
Model: 2013-20
Equipment Type: Vertical Contour Band Saw
Condition: USED
Machine Serial Number: 377-81810
Saw Type: Vertical Contour Band Saw
Construction: Floor Standing
Drive Type: Variable Speed
Saw Band Length: 154 in
File Band Length: 153 in
Voltage: 230 VAC
Phase: 3 Phase
Frequency: 60 Hz
Normal Current: 16.9 A
Largest Controlled
Motor FLA: D.C. 15.8 A
Interrupt Rating: 200,000 A RMS Sym. AC

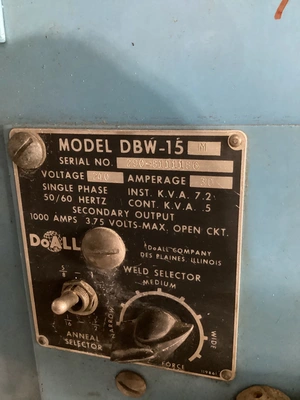

Blade Welder Model: DBW-15M
Blade Welder Serial: 290-8111186
Welder Voltage: 240 VAC
Welder Phase: Single Phase
Welder Frequency: 50/60 Hz
Welder Current: 30 A
Instantaneous KVA: 7.2
Continuous KVA: 0.5
Secondary Output: 1000 A
Open Circuit Voltage: 3.75 V Max
Motor Transmission
Belt Number: D163280
Air Pump Compressor
Belt Number: D35-2798
Electrical Schematic: 5058886-5
Adjustment Summary No.: D.C.160200-1
Welder Summary No.: WELD.120789-2
