NEW PILLAR HMJ

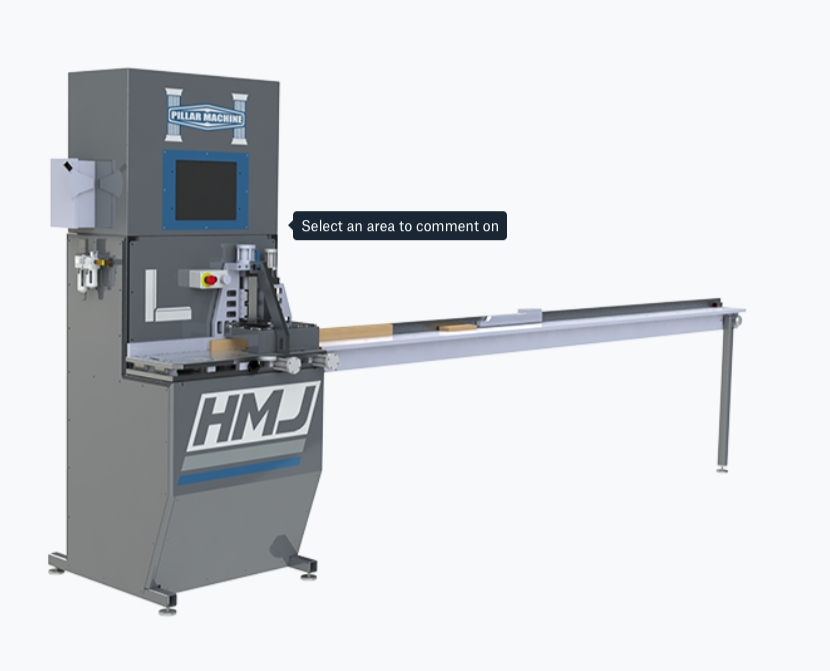

Pillar Model HMJ Haunching Machine
The HMJ is a CNC machining center used for producing high quality Haunch Joints which are used in many furniture and cabinetry applications
The haunch head miters the profile for beaded face frame applications on both stiles and rails
Standard Features
CNC controlled X-Axis
5 HP Haunch Spindle
Servo Fence: Belt Driven, Servo Control
Double Stack Two Stiles at a time
Square Rail Bearings
Unlimited Program Storage
Board Straightening Clamps
Tooling Included
Dust Ports 4" (1x)
CFM 350
Specifications
Material Width: 1 1/4" to 6"
Thickness: Up to 2"
Stile Width: 3/4" to Unlimited
Stile Length: 120" Max
Haunch Depth: 1/16" to 1/2"
