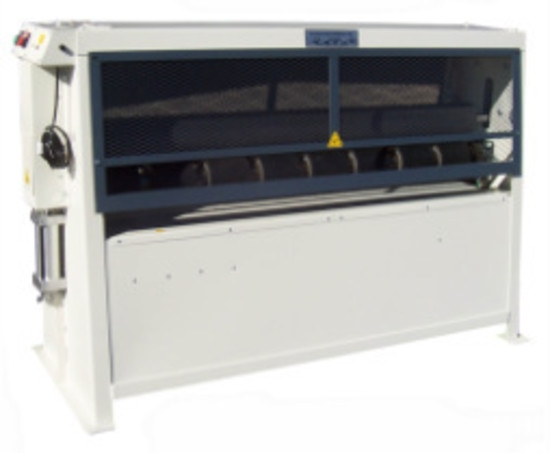

Evans Model 0207 Pinch Roller 62" Capacity with Segmented Bottom Roller
62" Capacity Pinch Roller For Countertops
Solid Top Roller and Segmented Bottom Rollers
Safety Gates on In-Feed and Out-Feed
Adjustable Pressure from 50-100 PSI
Forward and Reverse Feed Directions
Spacers Provided for Desired Thickness
Maximum Width: 62"
Maximum Thickness: 2"
Pass Line Height: 30.5" (Optional Riser Available)
Drive Motor: 0.5 HP
Feed Rate: 50 FPM
Electrical: 120 V, 1 PH, 60 Hz, 8A (Options Available)
Air: 100 PSI
Shipping Dimensions 85" L X 33" W X 57" H
Shipping Weight: 766 LBS
