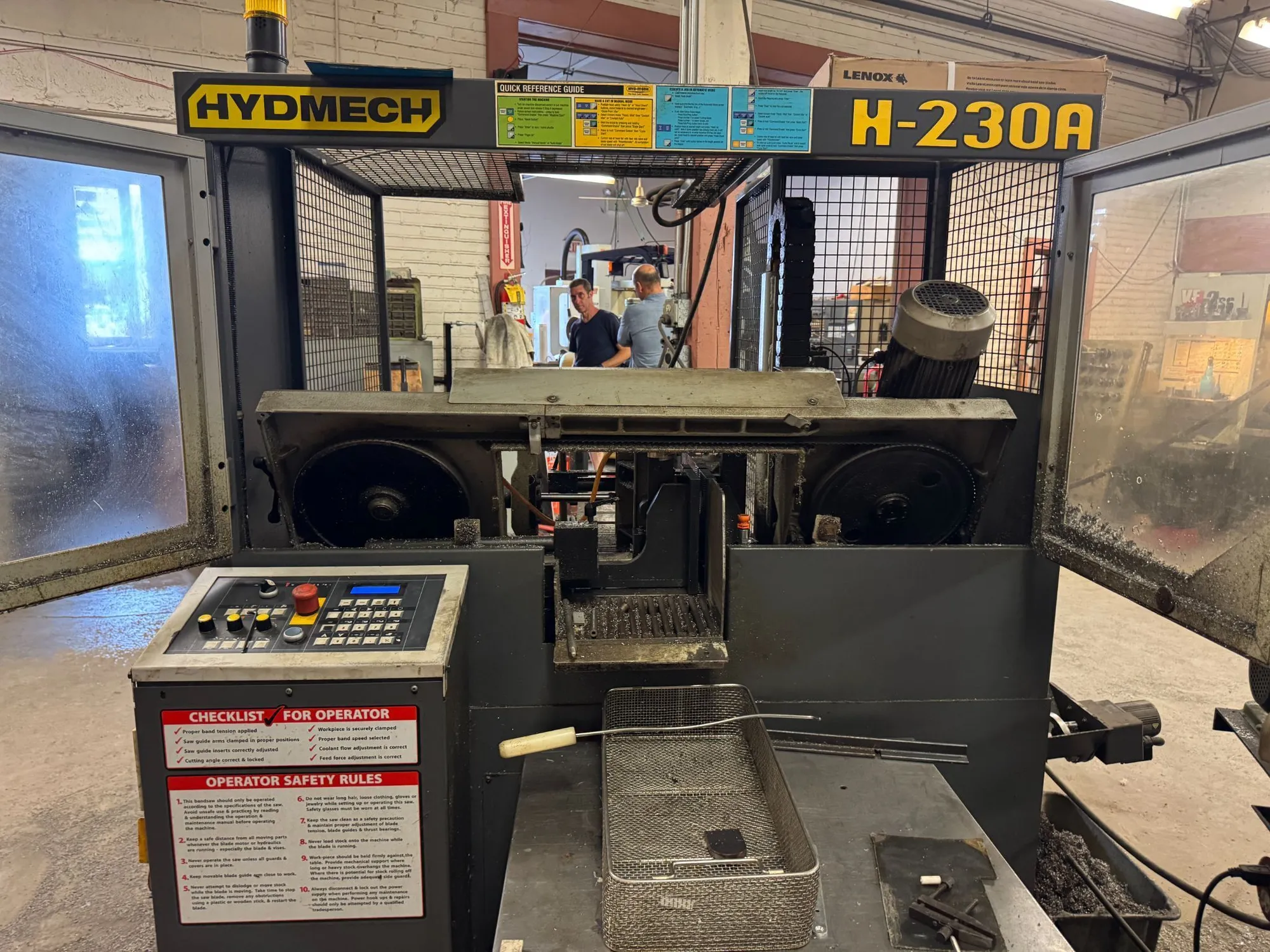

USED 2013 HYD-MECH H-230A

9” x 9” Hyd-Mec H-230A
New 2013

Stock#
Model# H-230A
Year 2013

• 90° Cutting Capacity: 9" Round / 9" x 9" Rectangular
• Blade Dimensions: 9' 8" Long x 1" Wide
• Blade Drive Motor: 3 HP with a Variable Frequency Drive (VFD) for seamless speed tuning (50–350 SFM)
• Shuttle Stroke Indexing: 0 to 19" in a single stroke, driven by a precision ball screw and stepper motor for multi-indexing longer cuts with automatic kerf compensation.
• Remnant Length: Only 2.5", enabled by a special split-front vise design that securely clamps material close to the blade to minimize waste.
Control & Functional Features
The NCHS designation highlights the advanced programming platform on this machine:
• Automatic PLC Touchscreen: Capable of storing multiple complex multi-step cutting jobs with material queue settings.
• On-Demand Hydraulics: Keeps the system cool and saves energy by only pressurizing when physical motion (clamping or head feed) occurs.
• Electronic Dual Down Feed (DDF): Closed-loop sensing automatically slows down or speeds up head downfeed based on real-time motor amperage draw, drastically increasing tool life when entering tough materials.
• Integrated Management: Includes a built-in automated chip removal auger, laser guide light, flood coolant washdown, and comprehensive saw-in-a-box structural safety shielding
