USED HOMAG OPTIMAT

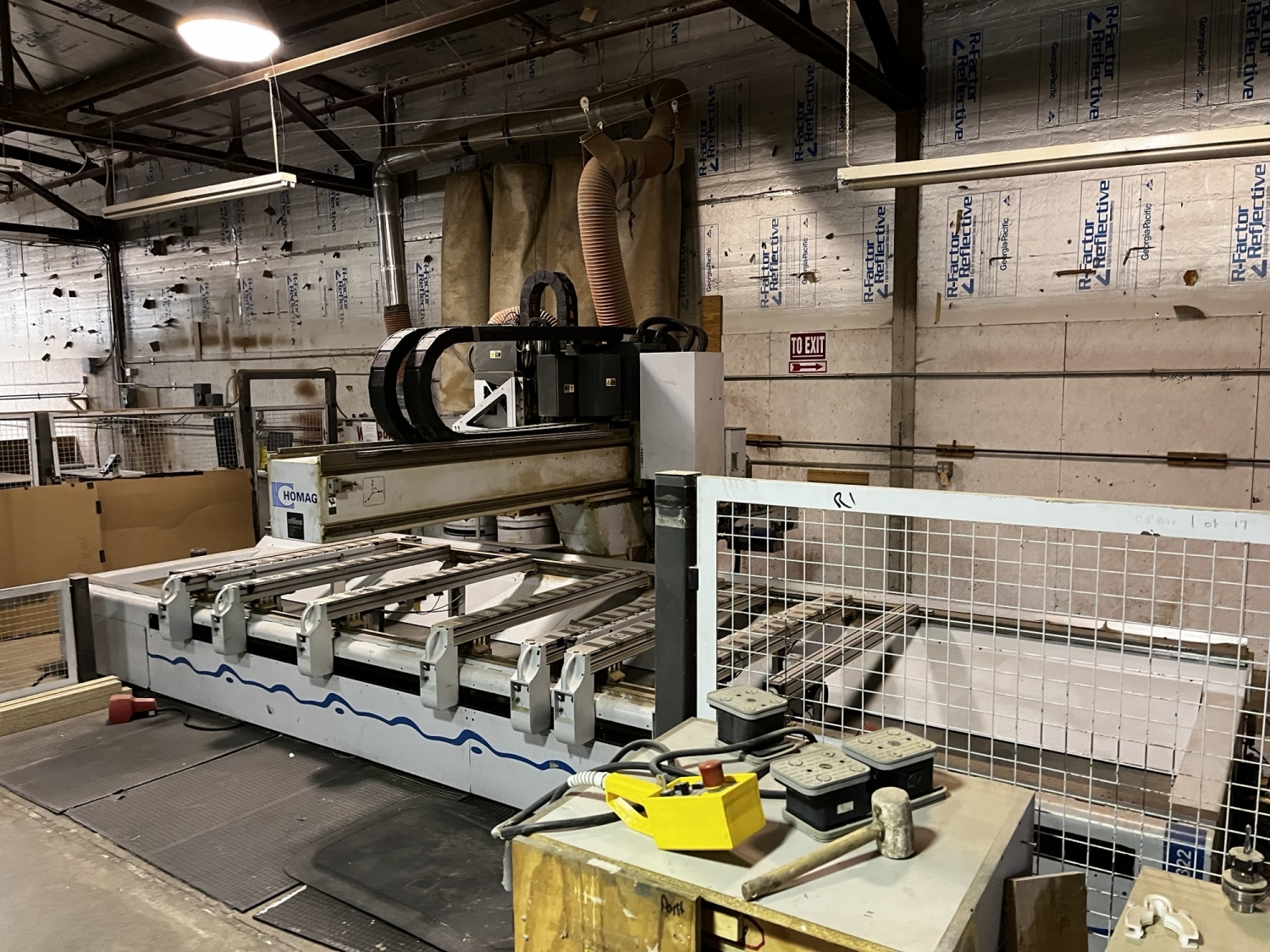

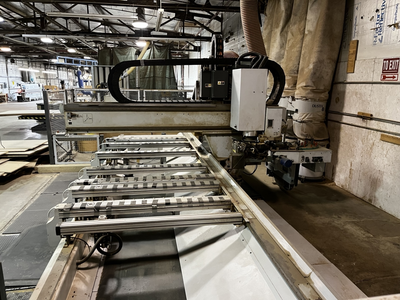

Homag Model Optimat BAZ 322/40 CNC Router
The BAZ is a machining center for routing, drilling, contour edgebanding and edge finishing. It is equipped with an electronic control for batch size production of curvilinear components for the flat panel industry.


The machine features two (2) independent Y-axes for main spindle and gluing unit 360º with coil and strip feeding. These independent axes enable quick cycle times utilizing simultaneous tool changing while processing.
Basic Equipment:

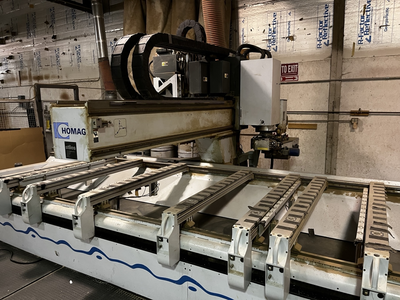

K-type vacuum bench consoles with lifting rails and LED bench and vacuum cup setup aid

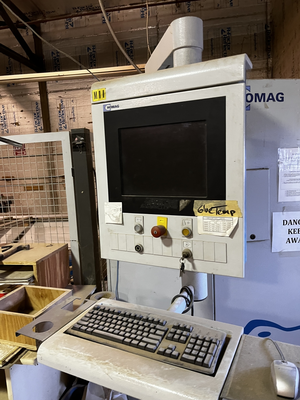

Power control with PC85

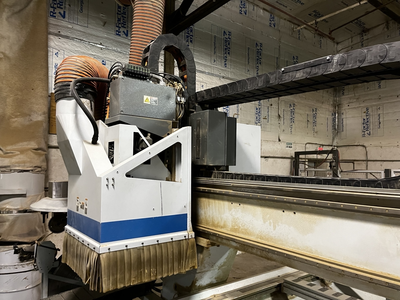

Main spindle 14.5 Kw (19.4 HP) vector regulated
Plate-type tool changer for twelve (12) tool - interface for change-over of processing units with an integrated pneumatic supply and drive of C-axis
Vertical boring head with twelve (12) spindles

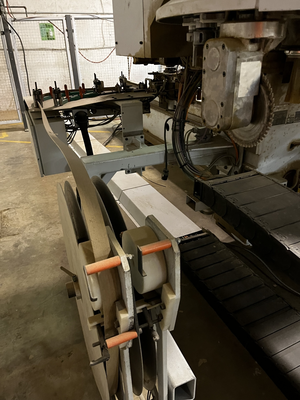

End trim saw unit - gluing unit for 360º edge band application with strip feed function - coil magazine
Combination flush trimming scraping unit for thick edge, 3 mm (1/8) typical
WoodWOP office PC software
Basic Machine:
Machine bed in heavy, sturdy construction with a compact linear THK-type guide system
Pre-tensioned rack and pinion gears and digital AC-servo motors in X and Y-axis
Cantilever carrier beam with linear THK-type guide system, re-circulating ball screw and digital AC-servo motor for positioning of the Z-axis, travel 535 mm (21-1/16)
Automatic centralized lubrication for all drives and the linear Thk guides
