NEW TIMESAVERS 3321-45-86

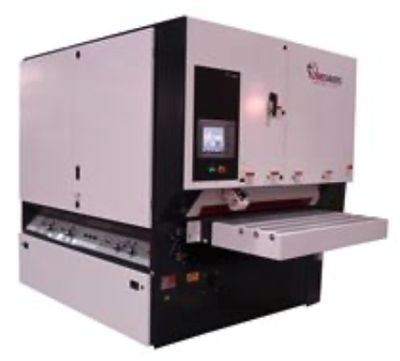

Timesavers Model 3321-45-86 Standard Two Head 52" Cross-Belt Polisher
Specifications:
Crossbelt abrasive belt size: 6" x 208"
Chevron belt size: 6" x 185"
Widebelt Abrasive belt size: 52" x 103"
Main motors: 25, 30HP
Maximum width stock: 51"
Minimum part length with vacuum bed: 6"
Maximum thickness opening: 6"
Infeed loading area: 30"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 141
Passline height: 32"-38'
Dust extraction: 3,850 CFM (5" static pressure)
Compressed air usage: 16 CFM @ 90 psi
Standard Features:
Segmented Crossbelt: (first head position)
Segmented D/A Sanding Head(2nd position)
Air Operated Disc Brakes
Holddown Rolls
PLC Controller with HMI Interface
Dial Indicators on Adjustable Contact Drum Heads
Quick Release Outboard Support
Main Motor Percentage Load Meter
Infeed Stop Bar
Hour Meter
Four Jack Bed Construction
Part Set-Up Device
Motorized Thickness Adjustment
U.L. Listed Components
Panel Cleaning Brush
Pop Up/Down on Contact Drums
Variable Speed Conveyor Drive
Abrasive Belt Blow-Off on Widebelt Head
Abrasive Belt Blow-Off on Crossbelt Head
Vacuum Conveyor Bed
A/C Frequency Drive on Crossbelt Head
Factory Start-up and Training
