Used

USED 2014 DOOSAN VM 960L

New York, United States
127Listings|77Followers
Overview
Vertical Machining Centers

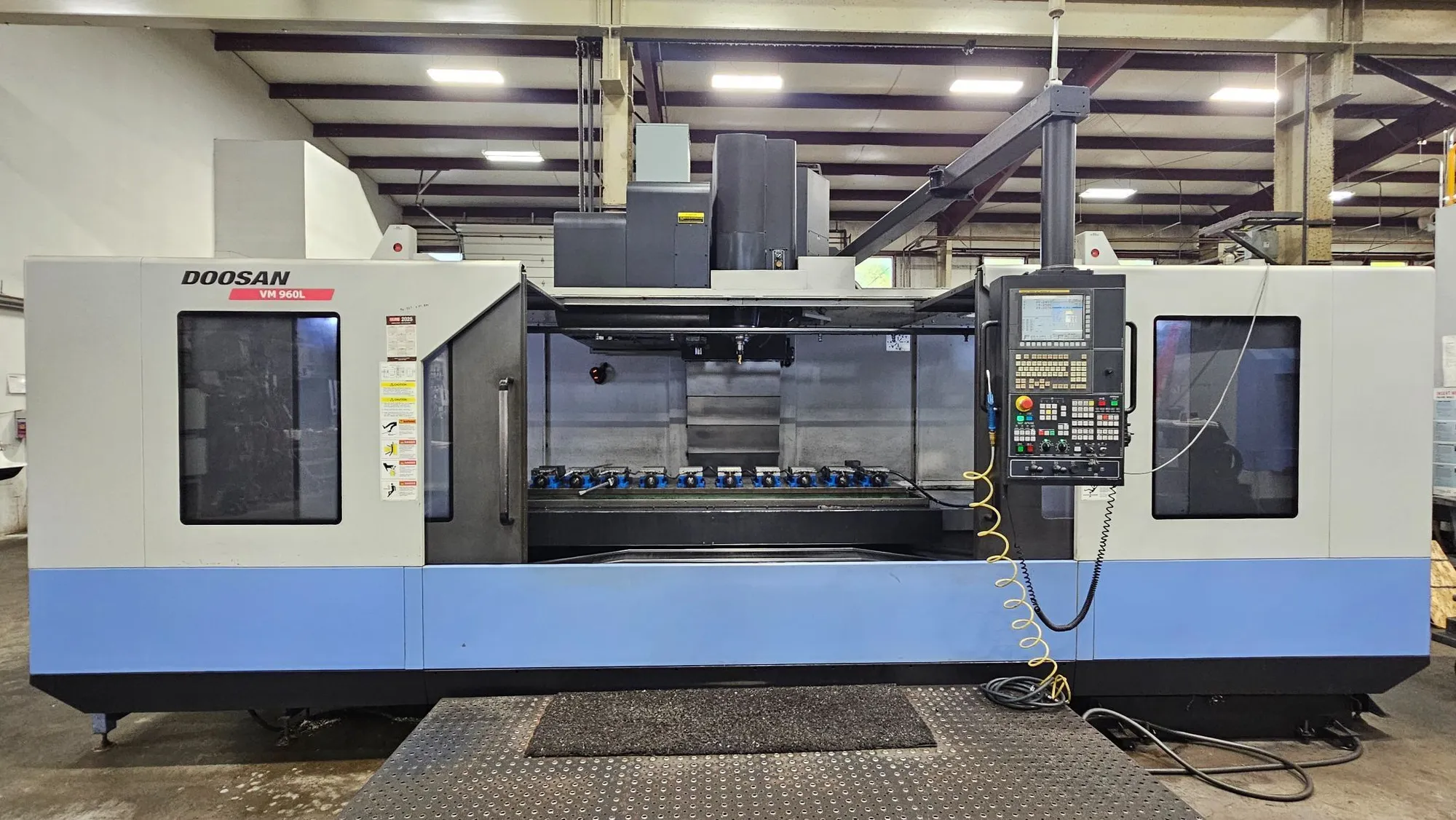

DOOSAN VM 960L 2014 used CNC machining center with Fanuc 31i-B 3-Axis control. Features include 94.5" X travel, 35 hp spindle, 6,000 RPM Geared head, Cat 50 taper, 40 ATC, Renishaw probes, and CTS. Table load capacity of 9,920 lbs.

Specs
X
94.5"
2,400.3 mm
Y
37.8"
960.12 mm
Z
31.5"
800.1 mm
Power
35 hp
26.1 kW
RPM
6,000 RPM
6,000 RPM
# ATC
40
40
Taper
CAT-50
CAT-50
Table-W
37.4"
949.96 mm
Table-L
102.4"
2,601 mm
# Axis
3
3
Max Table Load
9920
9920
Rapid Traverse
630
630
Spindle To Pallet Surface
39.0
39.0
Control
CNC (Fanuc 31i-B)
CNC (Fanuc 31i-B)
Dimensions
213" x 252.6"
213" x 252.6"
Weight
57,500 Lbs
57,500 Lbs
Equipped With

Fanuc 31i-B 3-Axis CNC Control
Powerful 2 Gear 35 HP Spindle Motor
Hard Box Way Construction
230 PSI Through The Spindle Coolant
Chip Conveyor and Screw Conveyors on Both Troughs
Renishaw Tool an Part Probe

(Vices in photos do not go with machne)

Inspect Under Power in a very Clean Doosan Shop. Needs to sell to make room for a new Doosan.
