NEW TAYLOR #713A-8-A

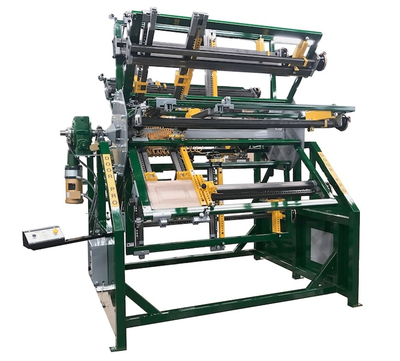

Taylor Model #713A-8-A 8 Section Stile and Rail Door Pro
The Taylor Door Pro clamping system is designed for the medium to large door shop that clamps doors without pinning. The Door Pro is capable of producing up to 350, perfectly squared, stile and rail doors per 8 hour shift with only one operator.
8 Rotating Squaring Sections
100% Heavy Duty Steel Construction
Machine Rotation is Counterclockwise for operator safety
110 Volt Electric Gear Motor with Variable Speed AC Drive Control System
Control Box with Single Button Activation for Rotation
Auto Index Stop Feature
26" x 62" Maximum Capacity
Single Lever Valve Operation
(1) Horizontal & (2) Vertical Pneumatic Clamps
NEW Clamping force direct at corner
NEW Trident Pin System allows for faster setup on cross clamp
NEW Cylinders located in rear and away from operator
Precise, Accurate Pneumatic Squaring of Cabinet Doors
Each Clamp features a 20 square inch heavy duty diaphragm cylinders
Quick adjusting clamps on rollers for fast, easy changeovers
