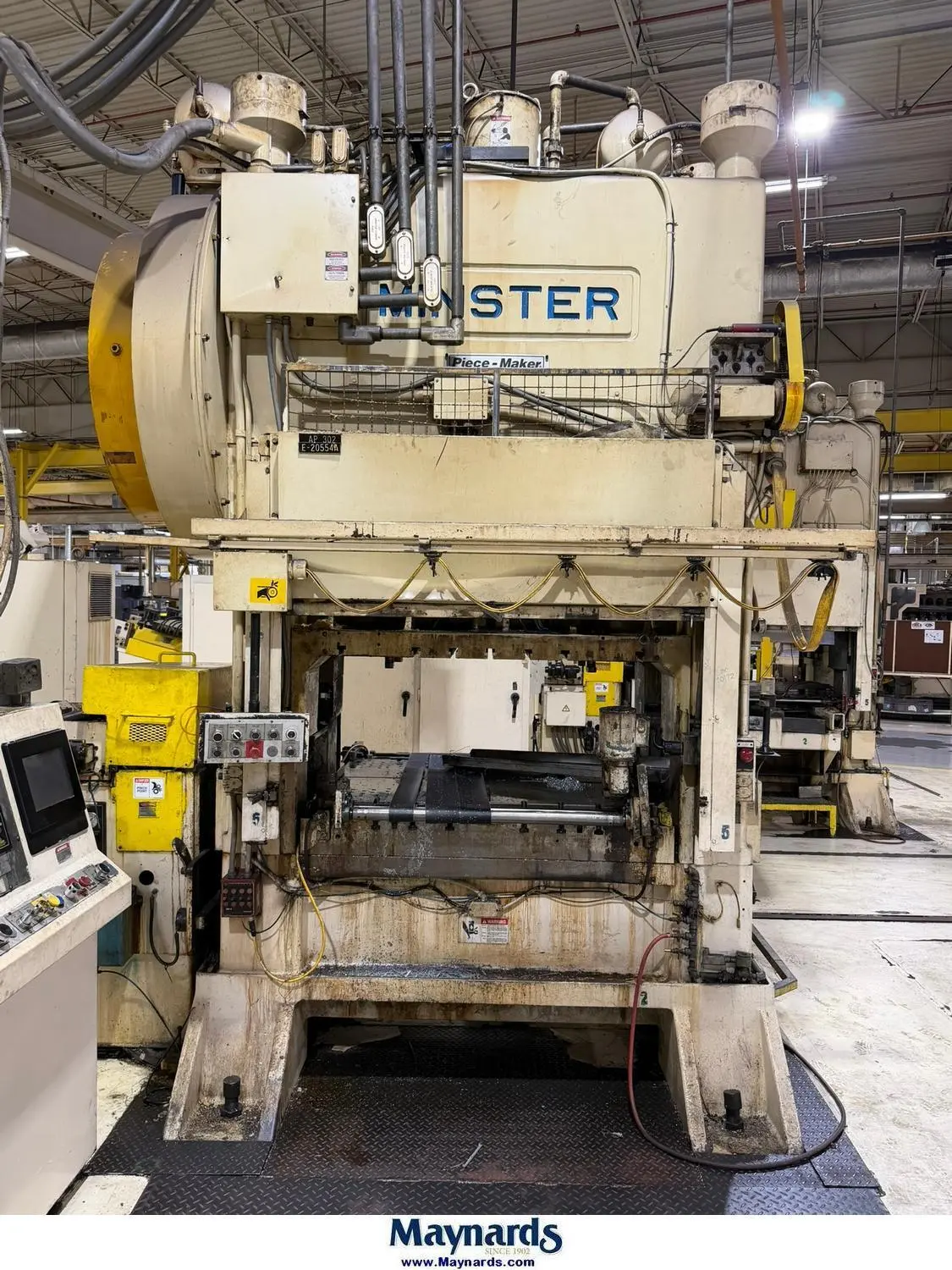

USED 1995 MINSTER P2-150-Geared

Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Minster Monitor Flow Lubrication System
Power: 480 Volt/3 Phase
Dual Ross Valve
Wintriss Smart Pac 2 Press Control
Wintriss Resolver
AC Variable Speed Main Motor
Vibration Isolation Levelers
8 Point Gibbing
Motors and Controls
Motorized Ram Adjustment

Optional Minster Servo Feedline (Includes the following):

20” wide x 10,000 # Minster Double End Coil Reel
Model#: MR10-20D
S/N: 13-70353
3 Leaf Mandrel
Dual Hold Down Arms
Adjustable Rotation of Mandrel
Hydraulic Power Expansion
Pneumatic Brake
Adjustable Back Keeper Arms
Non Driven Hold Down Arm for each Mandrel
60” OD/ 20-24” ID
Feed Direction: Left To Right

Minster Thread Table: Model: MTT8-26S
8’ table length x 26” max. width

Minster Powered Straightener
20” wide x 0.110” thick material Capacity
Max. Thickness: 0.200” @ 5” wide
7 Straightening Rolls
Two Sets of Air Actuated Pinch Rolls x 3.33” diameter
Motorized Work Roll Adjustment
Fully Automated Centralized Grease Lubrication System
Motorized Stock Guide Adjustment
AC Servo Straightener Drive Speeds up to 1200 IPM
Ultrasonic Loop Control
.200” thickness capacity
Model#: MS20-20-7
Serial#: 1350301
60-600 IPM

Minster 20” wide Feed
Model: MEF4-20
Serial#: 1850554
Capacity: 20” wide x 0.090” thick material
Max. Thickness: 0.187” x 9” wide
Min. Thickness: 0.020”
