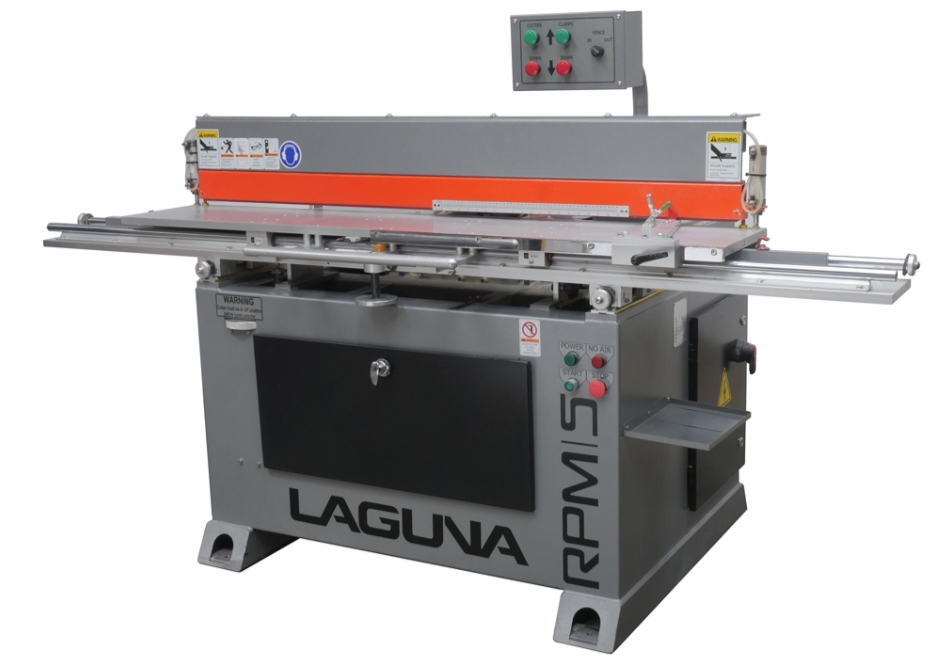

Laguna Raised Panel Master 5
This machine is designed to allow a single operator to produce a complete cabinet door in less than 2 minutes. The single-piece welded steel frame provides the ultimate support for chatter-free work.
Motor: 10hp 220v 3-phase w/ VFD
Speed range: 6000 to 8000 RPM
Spindle: 1.25 Diameter x 7.25 Height
Cutter capacity: up to 7 Diameter
Compressed air requirement: 90 PSI 1 CFM
Dust port: 5
Maximum arch height: 2 standard
Maximum material thickness: 1.25
Maximum arch width: 24
