Used

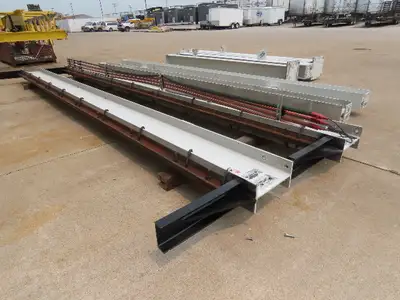

Brehob 3 Ton Top Running 4-Post Bridge Crane 2 Hoists 16' 10" Span 18' Run 12'H

Indiana, United States
Asking Price
USD $28,499.99
1 available
58,942Listings|79Followers
Overview
Specs

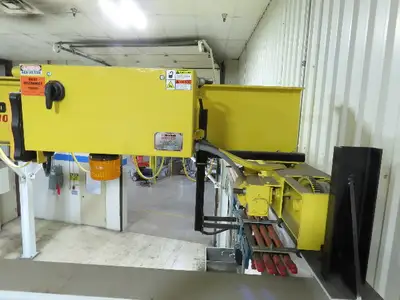

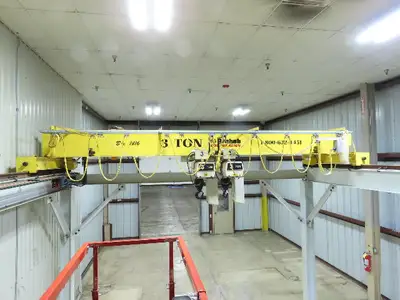

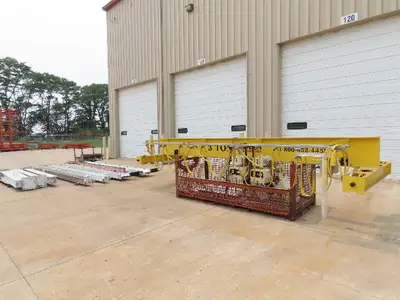

Bridge crane in good clean working condition, removed from a working environment.

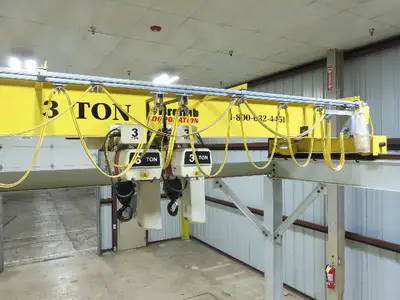

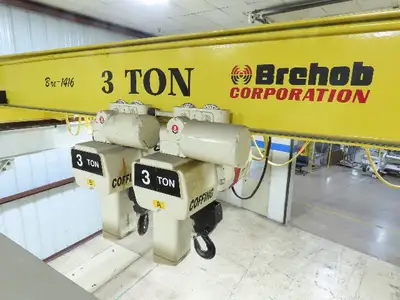

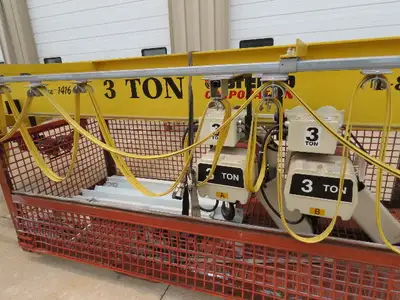

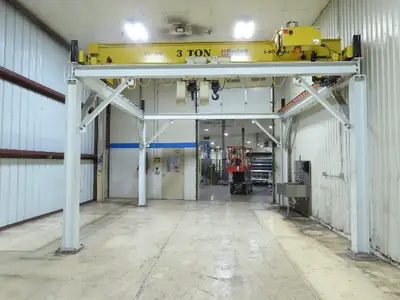

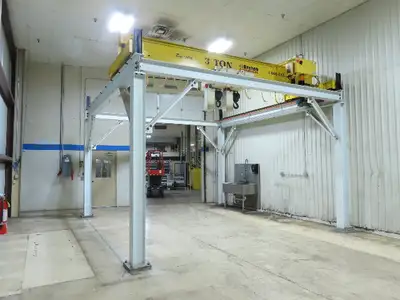

4 Post crane system with 2 Coffing hoists with remote pendants.

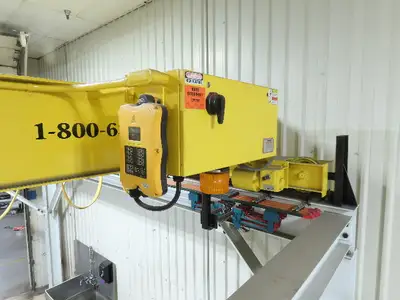

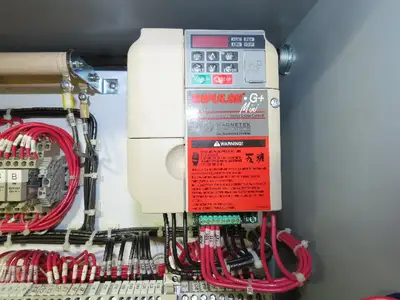

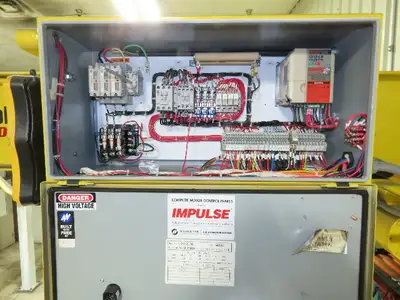

Controls:  Corded pendant and remote pendants with VFD in control panel 460V 3PH.

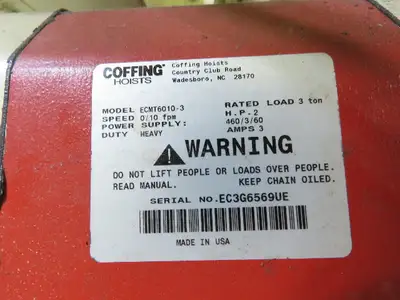

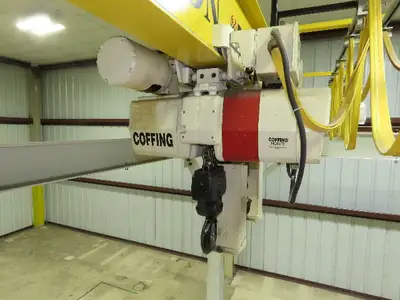

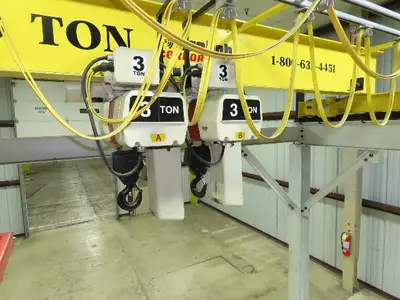

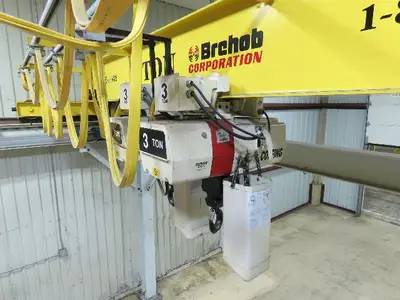

Hoist:  Coffing 3 Ton Model (ECMT6010-3) 0/10 FPM 1-Speed.  2Hp 460V 3PH.

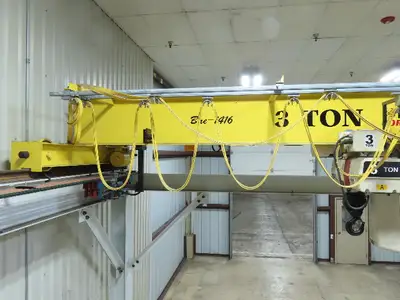

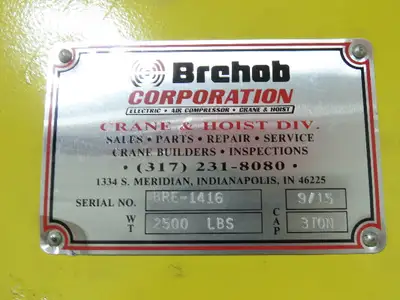

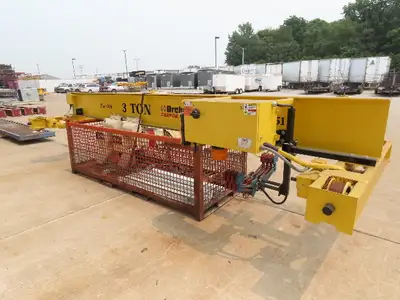

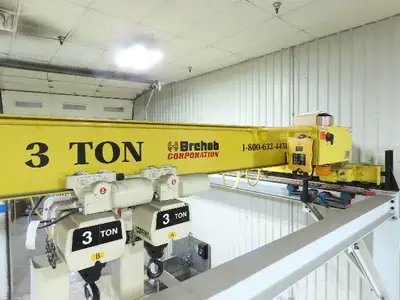

Bridge Type:  Brehob Top Running.
Bridge Capacity:  3 Ton
Bridge Span:  16' 10"  (Center distance of runways)

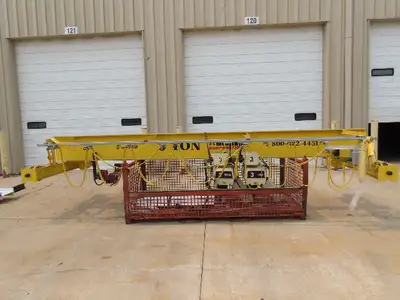

Bridge Beam:  17' 7" Length.  6"W x 18"H

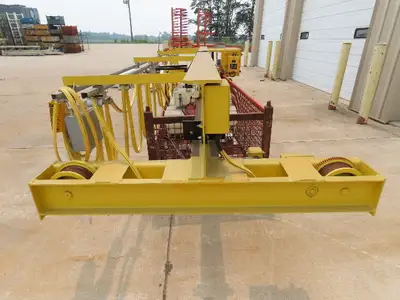

End Trucks:  69" Length.

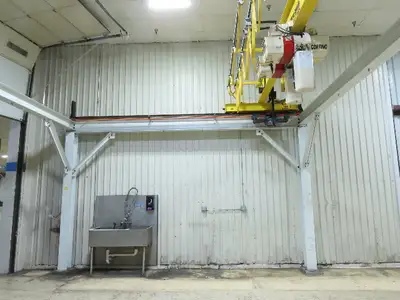

Runway Beams:  18' 3" Length.   6.5W  12.5"H
Runway Top Rail Length:  17' 5"
Upright Post Height :  10' 1"
Upright Post Width:  8"x 8" Square with a 14" base.
Cross Beams:  16' 10" Length.  6.5"W x 8"H
Clearance Heights:
Height Under Bridge Beam:  12'
Height Under Hoist Hook:   9' 5"  (This is with hook fully retracted, hook may be currently set at a lower height than this)
Height Under Hoist Chain Bucket:  9'
Height Under Runway Beams:  10' 1"
Top Clearance Height:  13' 6"
Overall Footprint:  18' Width.  18' 9" Length.
Ship weight is approximate.
