Mereen-Johnson Scout Loader Automated Vacuum Feeder

Mereen-Johnson Scout Loader

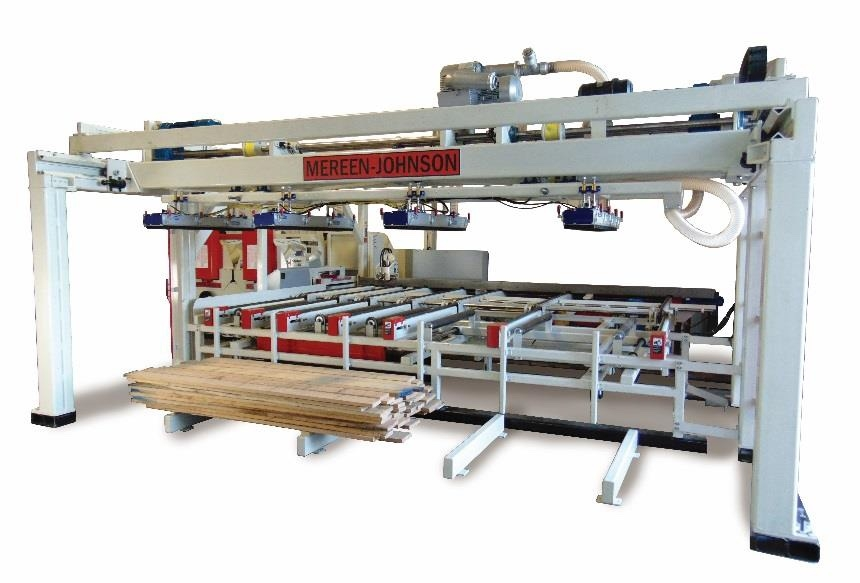

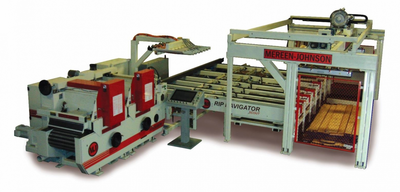

Scout Loader feeds boards from pack of lumber on layer at a time.
Capacity
Lumber Packs: Maximum 4' Wide x 4' Tall x 17'-6" Long
20" Max Board Width for Rip Navigator Transfer and Measuring System
Lift Transfer Carriage
Carriage mounted from five post frame with horizontal travel on "V" rails using 4-1/2" diameter
"V"groove roller cams, rack and pinion driven each end through 5 HP hollow shaft gear motor.
Dual scissors linkage lift of carriage with 7-1/2 HP hollow shaft gear motor driving pulleys with
dual nylon lifting slings. 17 HP direct driven vacuum blower connected to five nominal 54" long
x 6-3/4" wide suction boxes.
Electrical
Arranged for 230V or 460V 3PH 60hz
24V Control Voltage
