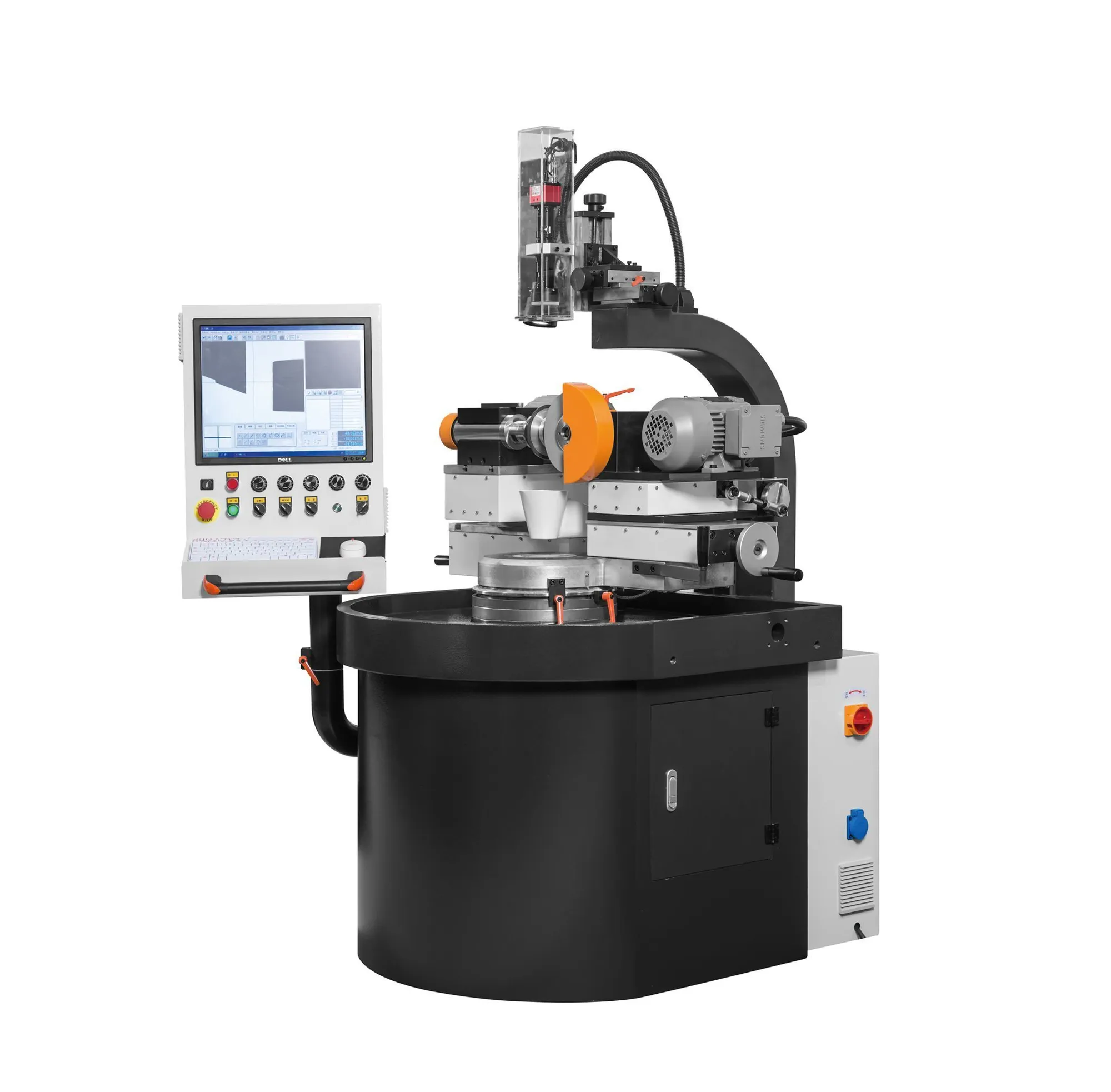

NEW 2025 GWD Industrial GWDress

2025 GWD INDUSTRIAL Model GWDress - 250 Grinding Wheel Dressing Machine
Our grinding wheel dressing machines – your advantages at a glance

Maximum precision: Our dressing machines are designed to correct even the smallest deviations in the grinding wheel shape. This guarantees maximum accuracy in every grinding process.
Ease of use: With an intuitive user interface, our machines significantly simplify the dressing process. Even less experienced users can operate the machine quickly and efficiently.
Robust construction: Our cast iron machine bed makes the machine extremely robust and simple in design. No unnecessary control electronics are installed. Simple and maintenance-friendly mechanical engineering is particularly important to us.
Versatility: Our dressing machines are suitable for a wide range of grinding wheel types and sizes, making them a flexible solution for different manufacturing requirements.

Machine data
Electrical connection 380 V or on request
Total performance 1.5 kW
Dimensions approx. L 1200 x W 1200 x H 1900 mm
Weight including cast steel machine bed 1,400 kg

Mounts/Adapters HSK 50 or customer request
max. grinding wheel diameter ø 250 mm (extension up to ø650mm possible)
max. dressing wheel diameter ø 300 mm
Grinding wheel speed 0-1500 rpm (infinitely adjustable)
Dressing wheel speed 0-2800 rpm (infinitely adjustable)

Range of motion axes
max. range of motion left/right 135 mm
max. range of motion forward/backward 135 mm

Dressing
Oscillatory movement 0-50 rpm
Swivel length of dressing wheel 0-50 mm
Optical scale device (X, Y and rotation axis) 0.001 mm

software

EDIS measurement software Open Source Software
DXF import possible
Drawing shapes in the software possible
Camera optics and magnification including
19" monitor including

Further information
Dressing radius possible
Dressing disc packs possible
Technical data GWDress-500
