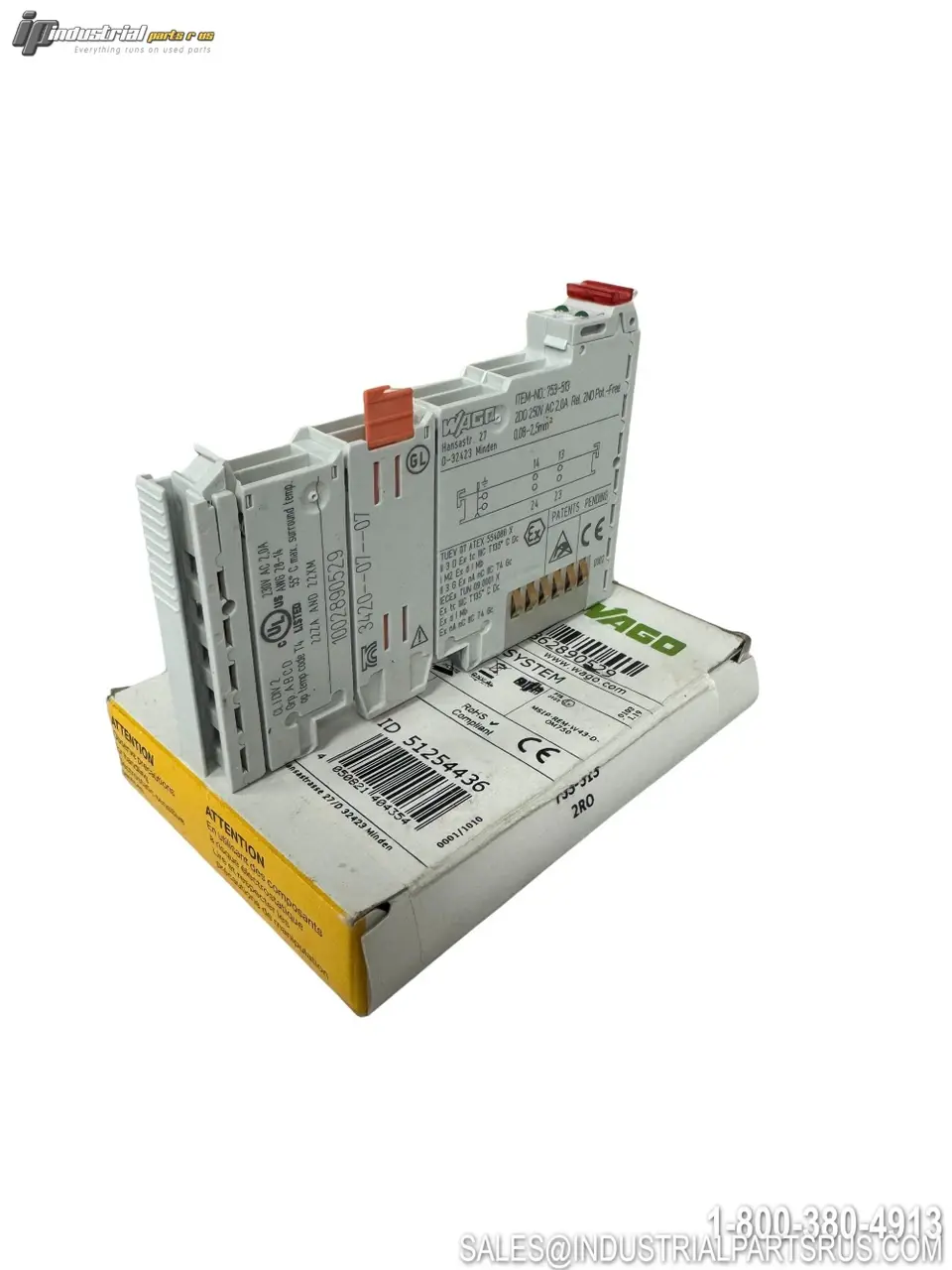

NEW WAGO 753-513

The Wago 753-513 is a 2-channel digital relay output module belonging to WAGO's 753 Series pluggable I/O system for industrial automation and control cabinet applications. It features two potential-free normally-open (NO) make contacts rated for 250 V AC / 30 V DC at 2.0 A, making it suitable for switching high-voltage loads in decentralized control architectures. The module uses push-in spring cage-clamp connections, mounts on standard DIN-35 rail in a compact 12 mm wide footprint, and carries approvals from UL, ATEX, IECEx, and multiple marine certification bodies.
Specification
Value
Brand
Wago
Model / Part Number
753-513
Product Series
753 Series
Product Type
2-Channel Relay Output Module (Pluggable AC Digital)
Number of Digital Outputs
2
Output Type
Relay — NO (Normally Open) Contacts, Potential-Free
Max Switching Voltage (AC)
250 V AC
Max Switching Voltage (DC)
30 V DC
Max Switching Current
2.0 A
System Supply Voltage
5 V DC (supplied by system)
Current Consumption (Internal)
100 mA (at 5 V DC)
Switching Frequency
0.5 Hz
Connection Type
Push-in Spring Cage-Clamp (CAGE CLAMP)
Wiring Configuration
1-wire per channel
Mounting Type
DIN-35 Rail
Enclosure / Protection Rating
IP20
Width
12 mm (0.472 in)
Height
100 mm (3.937 in)
Depth
69.8 mm (2.748 in)
Housing Material
Polycarbonate (PC) / Polyamide (PA) 6.6
Color
Light Gray
Operating Temperature
0°C to +55°C
Status Indicators
LED (green) — Relay 1 & Relay 2 status
Electrical Isolation
Yes — Field and System levels electrically isolated
Certifications / Approvals
UL 508 (E175199), UL 121201 (Hazardous Locations), ATEX, IECEx, ABS, BV, DNV, LR, KR, PRS, RINA, CCC, EAC, INMETRO, BSH, UKEx
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
