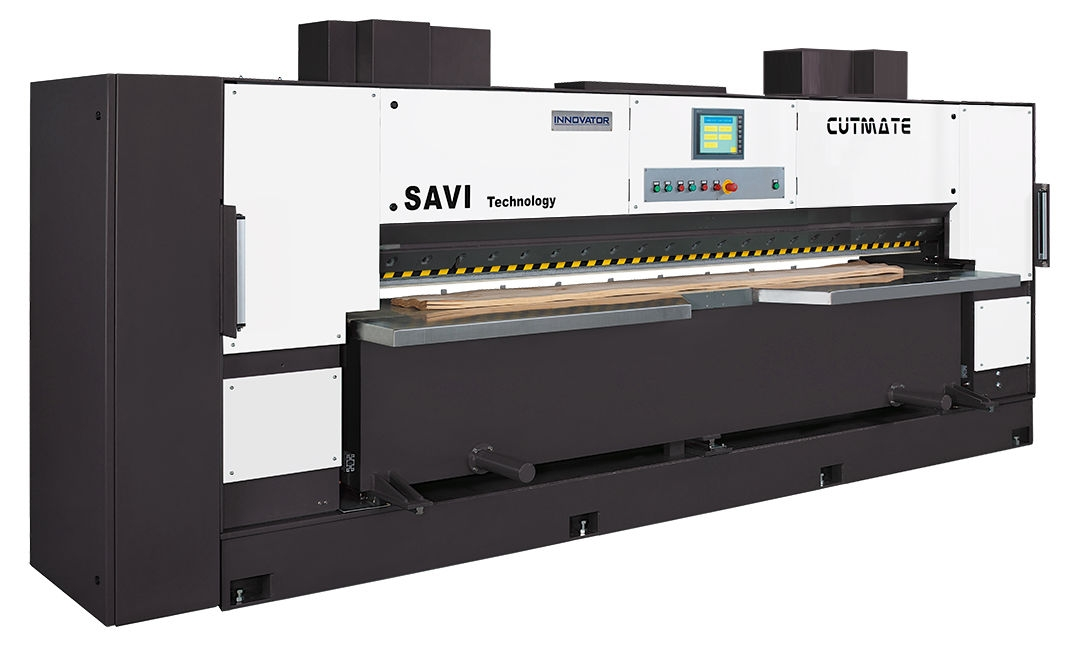

Northtech Innovator Cutmate 4000D Double Knife Veneer Guillotine

Cutting Length : 4000 mm (157")
Maximum Opening : 80 mm (3.14")
Cutting width: 30~470mm (1.18" - 18.50")
Dimensions of Guillotine: (L) 225" x (W) 71" x (H) 83"
Dimensions of Hydraulic Tank: (L) 46" x (W) 22" x (H) 43"
Features
Parallel cutting guaranteed
JAPAN YUKEN hydraulic system
With European safety standards
Able to use the front knife individually
JAPAN MITSUBISHI PLC control system
Rigid welded machine body for stable movement
Safety light barrier of knife and pack beam in front
Safety light barrier at the rear of the machine for safety concerns
Able to cut various materials including veneers, paper, plastic, etc.
Knives manufactured with high speed steel to extend the grinding life
Pack beam with two cylinders & four firm guides for long-time operation
Adjustable pressure with hydraulic knives and pack beam for all kinds of veneers
Hydraulic-driven rear fence for adjustment of the veneer pack to minimize the scrapes
CutMate 4000D
Simultaneously cutting with two knives for timesaving production cycle (short working cycle)
"Safety locker" at the front end of the knife beam (unique and only in INNOVATOR™ guillotines)
Extra safety valve of knife beam with additional safety knife protective cylinder to keep off any drop of knife
Special designed emergency valve for front knife to minimize operational danger caused by mechanical faults
High speed movement of the firm working table by servo motor with three sets of linear guides and two sets of
ballscrews
Optimizing program including manual cut mode, direct prog. mode, final width mode, etc. to cover all
requirements of veneering work
The user-friendly touch screen control panel with more than 50 sets of different veneer width at the same time
