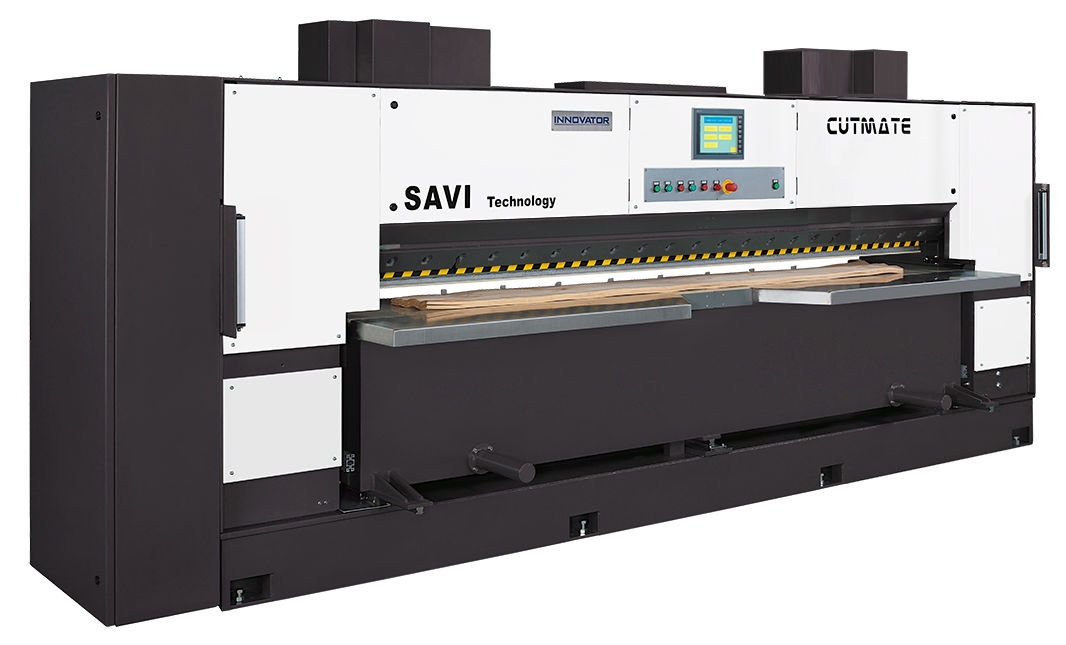

Northtech CutMate 4000 Single Knife Veneer Guillotine

Cutting Length : 4000 mm (157")
Maximum Opening : 120 mm (4.7")
Cutting width: 25 ~ 650mm (.98" - 25.6")
Pack Beam Width: 150mm (5.9")
Electric Power: Approx. 7.5kw
60 mm knife cylinder
Green cutting indicator
European safety standards
Yuken hydraulic system
Mitsubishi PLC control system
Rigid welded machine body for stable movement
Safety light curtains ensure operator is out of danger zone while cutting
Magnetic scale for accurate linear position of the fence
Adjustable pressure of hydraulic knife and pack beam for all kinds of veneers
"Safety locker" at the front end of the knife beam is unique and only on Innovator's guillotines
Special designed pressure release valve on knife to minimize operational danger caused by
mechanical faults
Extra safety valve on the knife beam with additional safety knife protective cylinder to prevent any
unexpected drop of knife
Two-handed cycle start of the knife and pack beam requires operator to hold buttons through entire
cycle
480V or 230V to be specified at time of order
Second cut technology option available at an additional cost
