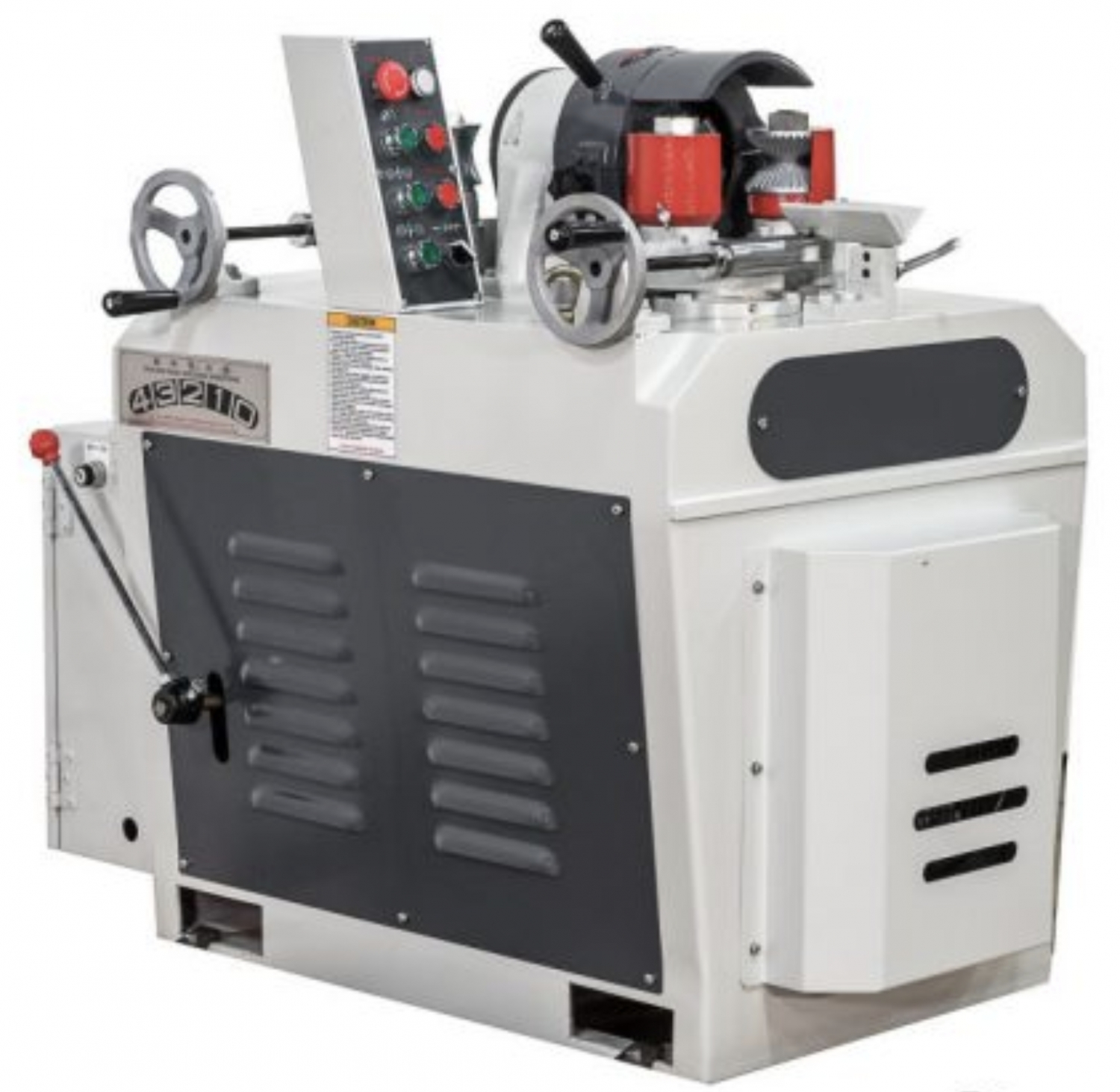

Northtech NT RM80 Round Rod Milling Machine
Overview
Specifications
Northtech NT RM80 Round Rod Milling Machine
10HP 230/460V 60HZ, 3PH: 29.4A/14.7A powered cutterhead
2HP reversible feed system
(1) Full set of 25mm Cutterheads Included
10-78mm (.39" x 3.1") working diameter
330mm (13") - Unlimited working length
3400 RPM cutterhead speed
9 / 15 / 22 / 31fpm 4 speed transmission
Passline: 32"
Dust requirements: (1) 4" dust port requiring 436 CFM @ point of extraction
Machine/Packing weight: 904lbs / 1,002lbs
Machine dimensions: (L) 42" x (W) 27" x (H) 37"
Packing dimensions: (L) 45" x (W) 32" x (H) 46"
Warranty is one year parts
All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble free start up.
Options
Heavy-Duty Double Infeed/Outfeed
Voltage Change: prewired 230V
