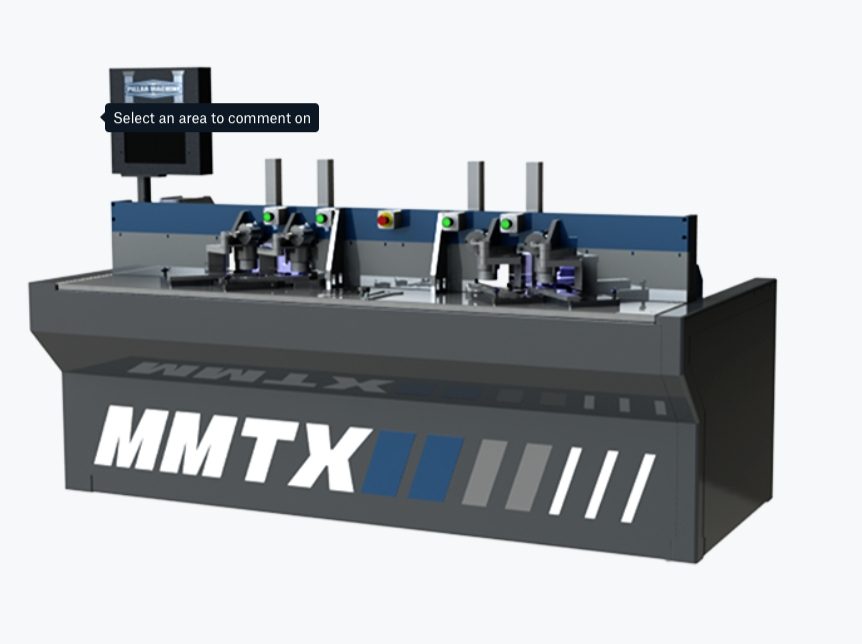

NEW PILLAR MMTX

Pillar Model MMTX Mortise and Tenon Miter Machine
The MMTX is the industry’s highest producing machine designed for creating Blind Mortise, and Tenon joints on a Mitered angle
It is a full 6 axis CNC machine
It is much like our MMTJ and M45 machines with exception that it has one dedicated carriage to produce the tenon end and another dedicated carriage to produce the mortise side
Each side of the machine has two loading stations
Referencing is done on both the outside and face of the profile for accurate joints
The computer controls the size of the mortise and tenon
Programs are stored and recalled as needed
Changing from program to program is accomplished in seconds
Small runs as well as large batches may be done on this machine
This machine produces between 400-500 doors per 8-hour shift with one operator
Standard Features
7.5 HP Tenon Spindle
7.5 HP Miter Spindle
3 HP Mortise Spindle
Z & Y Axis Rotary Ball Screw
Four Working Zones
Square Rail Bearings
Unlimited Program Storage
Side Pressure Clamps
Material Width: 1 1/ 2" - 3 1/2"
Material Thickness: Up to 1"
400-500 Doors Per 8 Hr Shift
Two 4" dust ports and two 6" dust ports
CFM 1400
Options
72" Servo Fence
Increased Thickness / Width Diamond Tooling
