NEW PILLAR M45

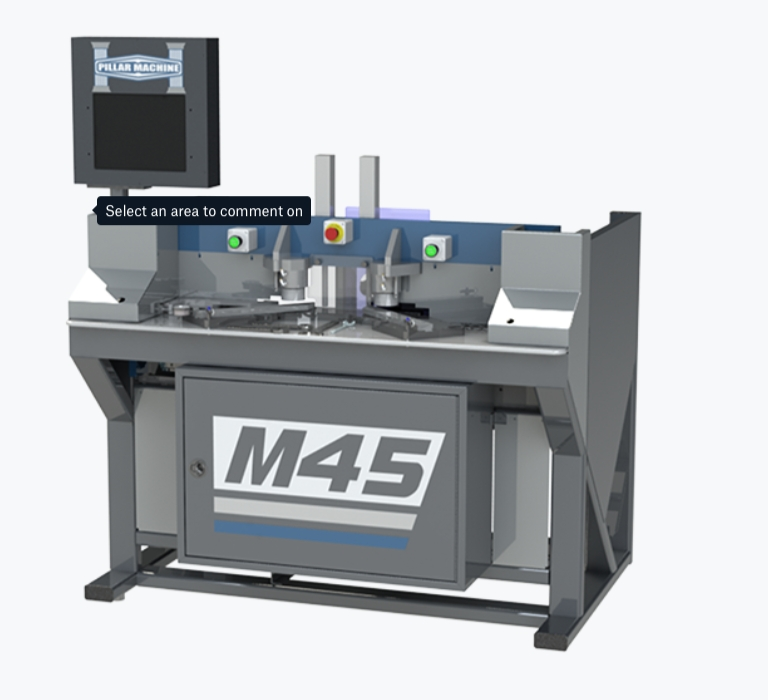

Pillar Model M45 Mortise and Tenon Miter Machine
The M45 is our smallest machine designed for creating Blind Mortise, and Tenon joints on a Mitered angle
It is a full 2 axis CNC machine
The table top is V-shaped to allow machining of two parts at one time
Referencing is done on both the outside and face of the profile for accurate joints
The computer controls the size of the mortise and tenon
Programs are stored and recalled as needed
Changing from program to program is accomplished in seconds
Small runs as well as large batches
may be done on this machine
This machine produces between 150-175 doors per 8 hour shift with one operator
Standard Features
7.5 HP Miter and Tenon Spindle
3 HP Mortise Spindle
Z axis Rotary Ballscrew
Two Working Zones
Square Rail Bearings
Multi-Axis Controller
Unlimited Program Storage
Side Pressure Clamps
Material Width: 1 1/ 2" - 3 1/2"
Material Thickness: Up to 1"
150- 175 Doors Per 8hr Shift
Dust ports two 4"
700 CFM
Options
72" Servo Fence
Increased Thickness / Width
Diamond Tooling
