NEW PILLAR MMTJ

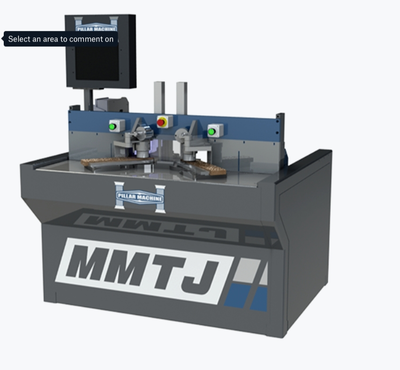

Pillar Model MMTJ Mortise and Tenon Miter Machine
The MMTJ is our most popular machine designed for creating Blind Mortise, and Tenon joints on a Mitered angle
It is a full 3 axis CNC machine
The table top is V-shaped to allow machining of two parts at one time
Referencing is done on both the outside and face of the profile for accurate joints
The computer controls the size of the mortise and tenon
Programs are stored and recalled as needed
Changing from program to program is accomplished in seconds
Small runs as well as large batches may be done on this machine
This machine produces between 175-200 doors per 8 hour shift with one operator
Standard Features
7.5 HP Miter and Tenon Spindle
3 HP Mortise Spindle
Z & Y Axis CNC Rotary Ball Screw
Square Rail Bearings
Unlimited Program Storage
2 Working Zones
120-200 per shift
Side Pressure Clamps
Material Width: 1 1/ 2" - 3 1/2"
Material Thickness: 5/8" to 1"
175-200 Doors Per 8 hr Shift
CFM 700
Two 4" dust pots
Options
72" Servo Fence
Increased Thickness / Width
Diamond Tooling
