USED NIRO NS3037-H

Manufacturer Information
Niro Soavi / GEA
Niro Soavi, now associated with GEA, is a recognized manufacturer of high-pressure homogenizers used in food, dairy, beverage, pharmaceutical, biotechnology, chemical, and specialty processing applications. High-pressure homogenization is commonly used for particle and droplet size reduction, emulsification, dispersion, product stabilization, and improving product consistency.
This Niro Soavi NS3037-H system was rebuilt by GEA in 2022 and includes a separate feed skid with an Alfa Laval positive displacement pump, bubble trap, heat exchanger, and control panels.
Description

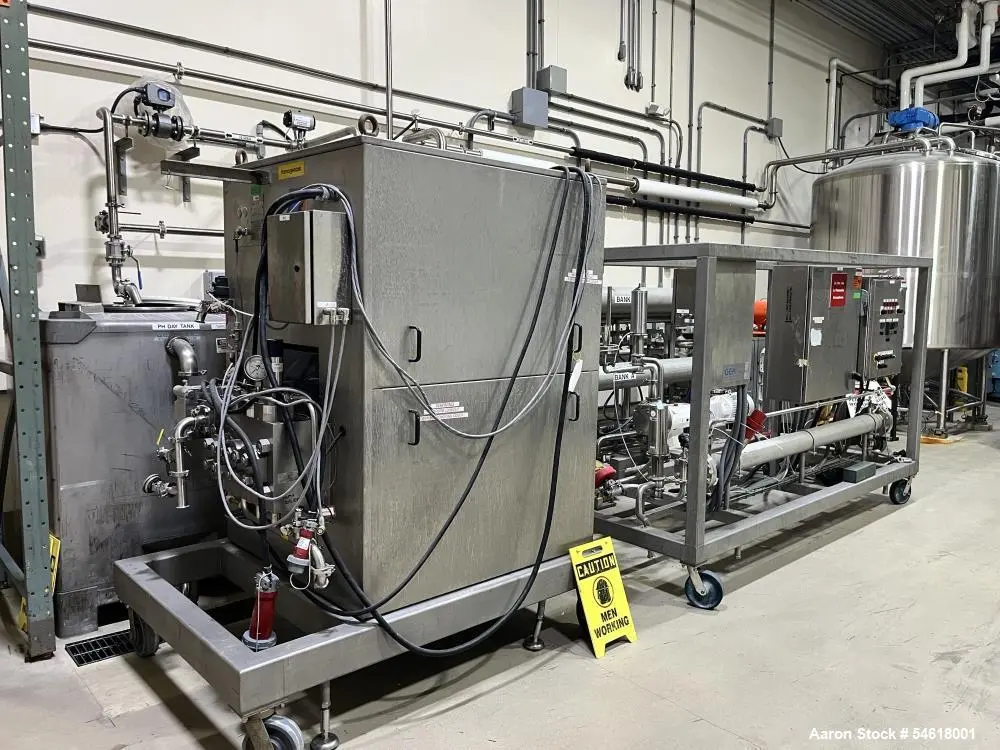

Available for sale is a used Niro Soavi Model NS3037-H high-pressure homogenizer featuring 2507 stainless steel construction and a broad operating range for demanding homogenization and emulsification applications.
The homogenizer has reported capacities ranging from approximately 3,170 gallons per hour at 1,500 PSI to approximately 211 gallons per hour at 22,000 PSI, providing substantial flexibility between high-throughput and ultra-high-pressure processing applications.
Power is provided by a 40 HP, 3-phase, 60 Hz, 230/460V motor operating at 1,190 RPM.
The package includes a mobile feed skid equipped with an Alfa Laval GHPD positive displacement pump, Model SRU-4NLS, powered by a 5 HP gear motor. Additional equipment includes an L.J. Star bubble trap, an Allegheny Bradford shell-and-tube heat exchanger, and two control panels.
The heat exchanger is rated at 150 PSI from -20°F to 350°F on both the shell and tube sides. Both the homogenizer and feed skid are mounted on casters, providing flexibility for positioning within a processing facility.
Originally built in 1993, the homogenizer was rebuilt by GEA in 2022, making this a particularly attractive system for processors seeking a high-pressure homogenizer with supporting feed and thermal-processing equipment.
Specifications

Specification
Details

Manufacturer
Niro Soavi / GEA

Model
NS3037-H

Equipment Type
High-Pressure Homogenizer

Construction
2507 Stainless Steel

Approx. Capacity @ 1,500 PSI
3,170 GPH

Approx. Capacity @ 22,000 PSI
211 GPH

Maximum Stated Pressure
22,000 PSI

Main Motor
40 HP

Main Electrical
3/60/230/460V

Main Motor Speed
1,190 RPM

Homogenizer Serial No.
2437

Original Build Year
1993

Rebuild
Rebuilt by GEA in 2022

Mounting
Casters

Feed Pump Manufacturer
Alfa Laval

Feed Pump Model
SRU-4NLS

Feed Pump Type
GHPD Positive Displacement

Feed Pump Serial No.
02-5-10008A

Feed Pump Drive
5 HP Gear Motor

Feed Pump Electrical
3/60/230/460V

Feed Pump Motor Speed
1,725 RPM

Gear Ratio
4.5:1

Bubble Trap
L.J. Star

Heat Exchanger
Allegheny Bradford

Heat Exchanger Type
Shell & Tube

Shell Rating
150 PSI @ -20°F to 350°F

Tube Rating
150 PSI @ -20°F to 350°F

Heat Exchanger Serial No.
10923-1-1

Heat Exchanger Build Year
2002

Control Panels
(2) Included

Feed Skid Mounting
Casters

Condition
Used

Typical Applications

High-pressure homogenization
Emulsification
Particle size reduction
Droplet size reduction
Product dispersion
Product stabilization
Dairy processing
Beverage processing
Food ingredient processing
Pharmaceutical processing
Chemical processing
High-pressure product development and production

Products This Homogenizer Could Be Used For

Milk and dairy beverages
Cream and dairy emulsions
Plant-based beverages
Sauces and dressings
Beverage concentrates
Flavor emulsions
Nutritional products
Pharmaceutical formulations
Cosmetic emulsions
Specialty chemical dispersions
Suspensions and emulsions
Other compatible pumpable liquid products

Actual throughput depends on operating pressure, product viscosity, temperature, formulation, homogenizing valve configuration, feed conditions, and desired finished-product characteristics.
Frequently Asked Questions

What pressure can this Niro Soavi homogenizer achieve? The stated operating range includes capacities up to approximately 22,000 PSI, with throughput varying significantly according to operating pressure.

What is the production capacity? Reported capacity ranges from approximately 3,170 GPH at 1,500 PSI to 211 GPH at 22,000 PSI. Actual capacity should be confirmed for the intended product and operating pressure.

Was the homogenizer rebuilt? Yes. Although originally built in 1993, the homogenizer was rebuilt by GEA in 2022, an important consideration when evaluating the equipment.

What equipment is included with the feed skid? The skid includes an Alfa Laval SRU-4NLS positive displacement pump, L.J. Star bubble trap, Allegheny Bradford shell-and-tube heat exchanger, and associated controls.

Is the equipment portable? Both the homogenizer and feed skid are mounted on casters, allowing easier positioning and movement within an appropriate processing facility.
