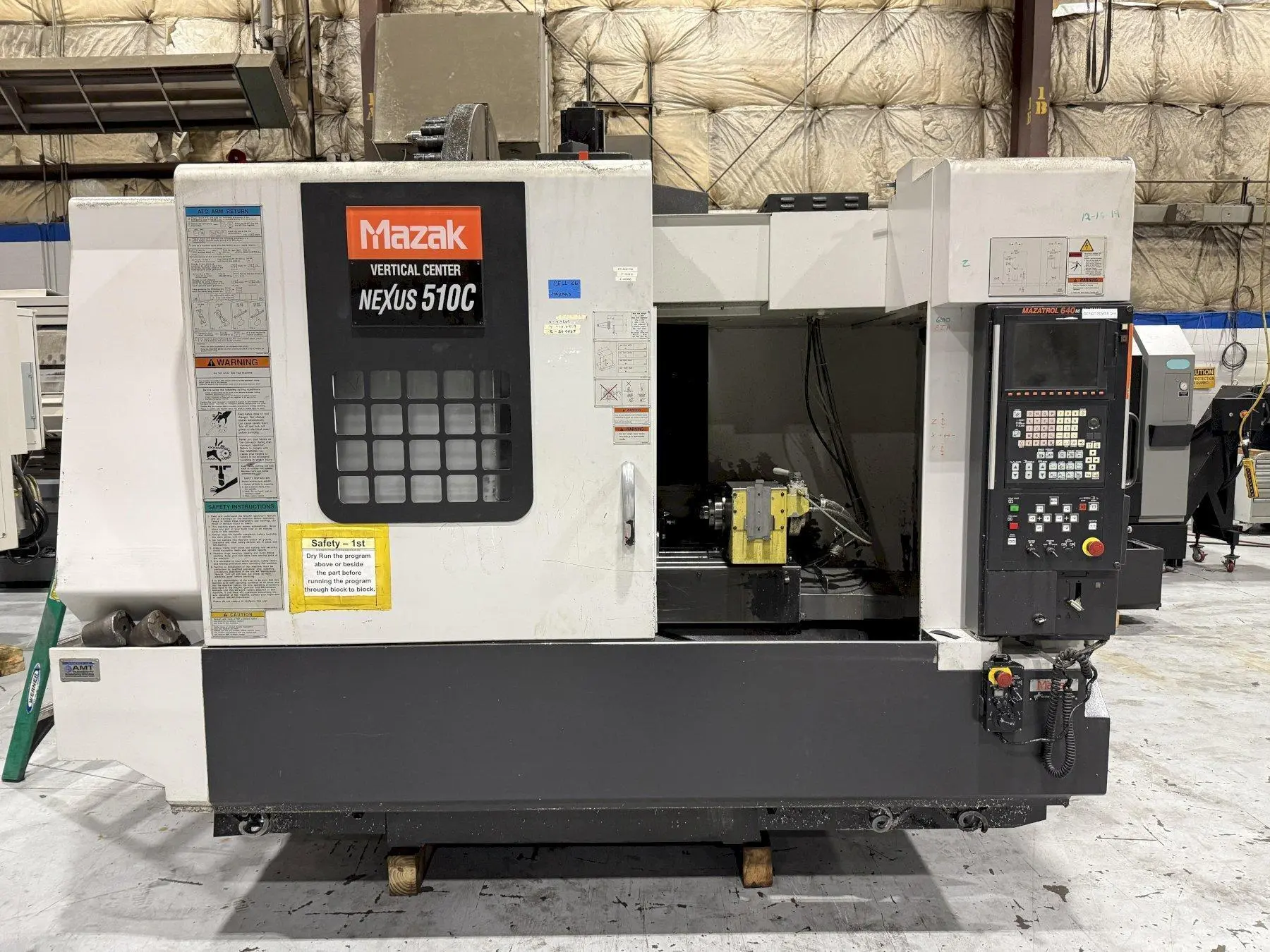

USED 2006 MAZAK NEXUS VCN 510C

Overview
Manufacturer:
MAZAK
Year:
2006
Stock #:
210775
Description

Used 2006 MAZAK NEXUS VCN-510C II Vertical CNC Machining Center. Features 41.34" X, 20.08" Y/Z travel, 12000 rpm spindle, 30-tool ATC, and Mazak CNC Control. Equipped with Nikken 4th axis, coolant thru spindle, synchronized tapping, and chip conveyor for optimized efficiency.

Specifications
X Travel41.34"1,050 mm
Y Travel20.08"510.03 mm
Z Travel20.08"510.03 mm
Spindle Speed12000 rpm12,000 RPM
Tool Capacity (ATC)3030
Table Size (W)21.57"547.88 mm
Table Size (L)51.1"1,297.9 mm
Main Spindle Motor25 hp
Spindle TaperCAT 40CAT 40
4 Axis Table RotationFull Contouring .001 360000 DegreesFull Contouring .001 360000 Degrees
Coolant ThruYesYes
Hi Pressure Coolant System0 psi
Part ProbeNoNo
Tool Probe/Auto Tool Length MeasurementYesYes
Rapid Traverse Rates: X Axis Y Axis Z Axis1417/ 1417/ 14171417/ 1417/ 1417
Chip ConveyorYESYES
ControlCNC (MAZATROL FUSION 640M)CNC (MAZATROL FUSION 640M)
Dimensions152.36" X 110.98" X 111.88"152.36" X 110.98" X 111.88"
Weight15,180 LBS15,180 LBS
Equipped With

MAZATROL 640M NEXUS CNC CONTROL
NIKKEN 4TH AXIS ROTARY TABLE W/TAILSTOCK
COOLANT THRU SPINDLE
RENISHAW AUTO TOOL LENGTH MEASUREMENT
SYNCHRONIZED TAPPING
CHIP CONVEYOR
COOLANT TANK
