NEW DUBOIS SP-12

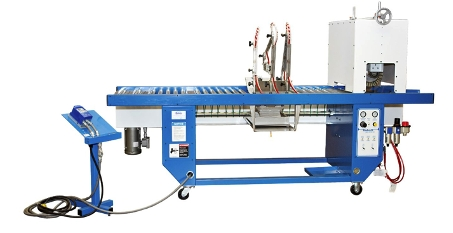

Dubois Model SP-12 Portable Lineal Spray Machine
Overview
The Dubois SP-12 Linear Spray Machine is an automated lineal finishing machine that can be used for a
variety of applications including priming, staining, sealing, lacquering, etc. of linear stock. Without the
optional exhaust system, the machine must be used in a functional spray booth.
Standard Features
Formed and tubular steel frame, powder coated
Top roller hold-down on infeed table
Infeed guide fences
½ hp gear reduced AC motor with variable speed live roll conveyor
Capable of one gun circuit (three guns available as options)
Three gun arms included on all machines
Ability to enable/disable individual guns
Air regulator for adjusting atomization pressure with atomizing air line for each gun
Air regulator for adjusting fluid pressure
Pneumatic gun triggering mechanism, whisker sensor and pneumatic on/off timers
One easily cleaned spray trough
Specifications
Maximum part width - 12"
Minimum part length - 30"
Maximum part height - 3"
Maximum line speed - 150 FPM
Exhaust (with exhaust option only) - 15" diameter
Optional Add-Ons
Binks fluid delivery system: (1) circuit, includes
(1) Medium pressure pump
(3) Binks automatic air assisted airless spray guns with HVLP aircap
(3) Tips
(1) Fluid filter, medium pressure
(1) Fluid regulator, medium pressure
Pickup and return tubes, hoses and connections for return
Graco fluid delivery system: (1) circuit
Kremlin fluid delivery system: (1) circuit
Short parts transfer
Minimum part length - 14"
Stain wipe station
Stain wipe cleaning station
Exhaust system
Spray enclosure, variable speed exhaust fan and filter system
Single High-Pressure Fluid Regulator
Aids in the removal of pump wink during pump cycle
Right hand machine conversion
Replacement Parts Package
