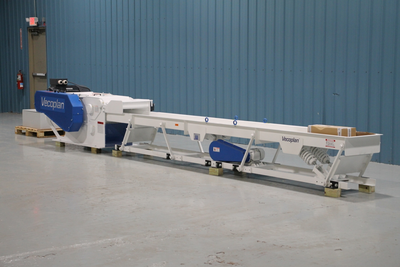

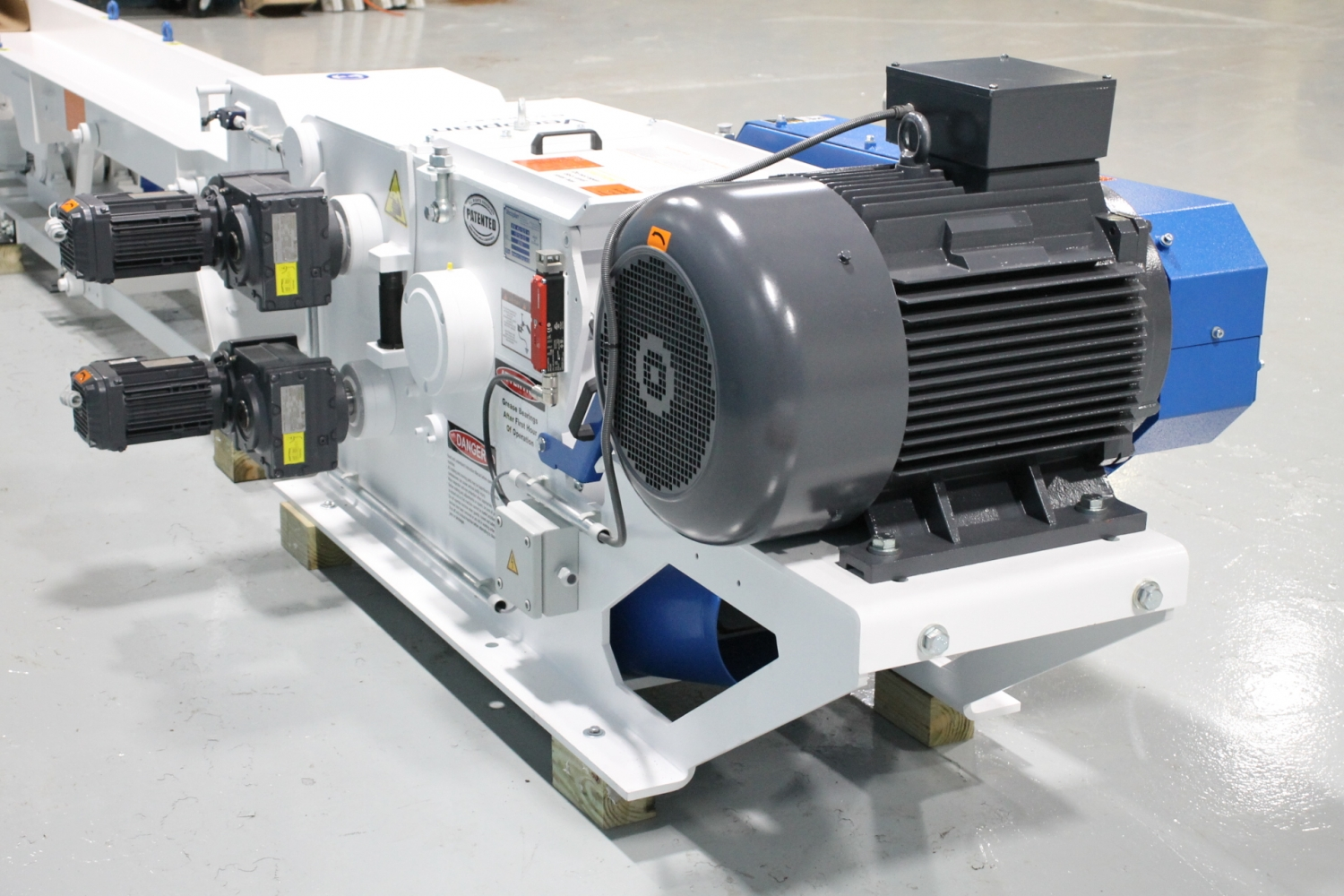

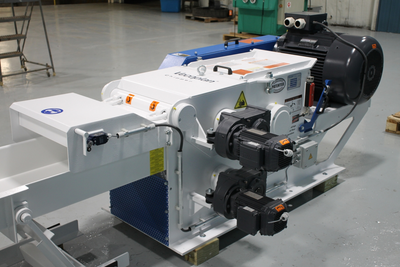

Vecoplan Model VTH 45/12/2 VU 60 HP Horizontal Wood Grinder
Low Speed / High Torque Design
Easy Accessibility

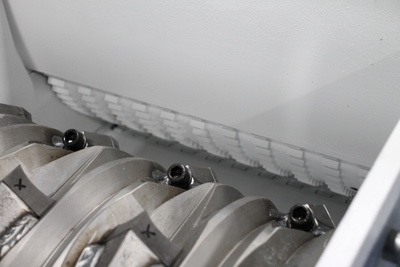

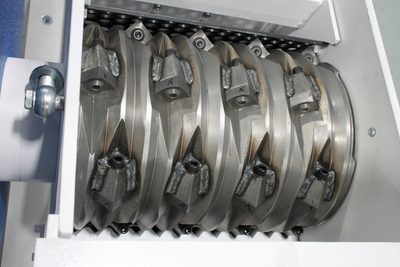

4-Way Indexable Cutting Inserts

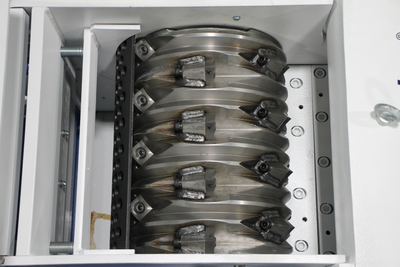

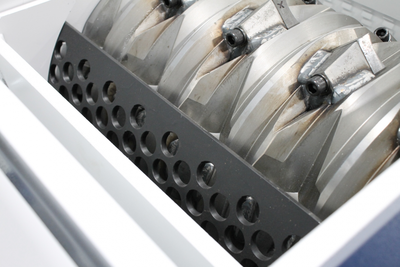

High Output "Torsion Point" Cutting Rotor
Severe Duty Construction
Stress-Free Frame, Robotically Welded

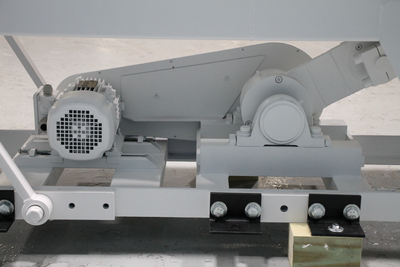

Oversized Drivetrain
Heavy Duty "PowerBelt"™ Rotor Drive
Heavy Spherical Roller Bearings
ISO 9001 Manufactured

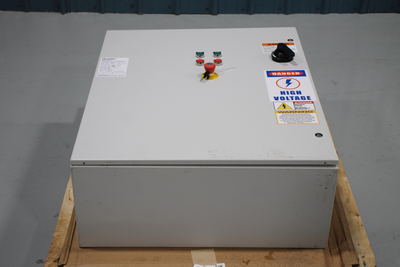

Pre-Wired Allen Bradley Control Panel

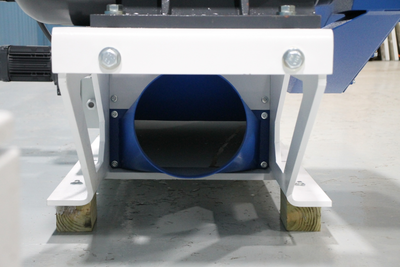

12" diameter pneumatic pick-up (3,500 cfm)

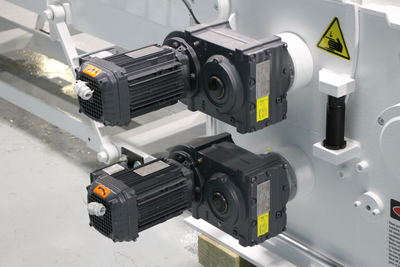

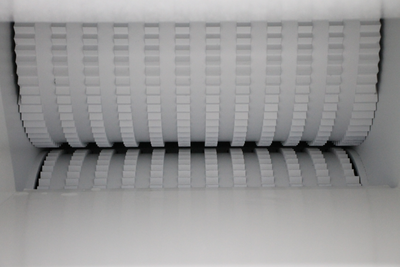

Top & Bottom powered feed rollers
Machine Infeed Opening 18"Wx5"H
Rotor Length 18"
Rotor Diameter 16"/400mm
Number Of Cutters 24(40mmx40mm)
Rotor Speed 390 rpm

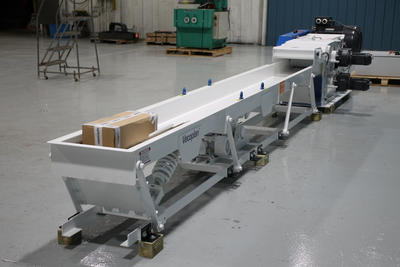

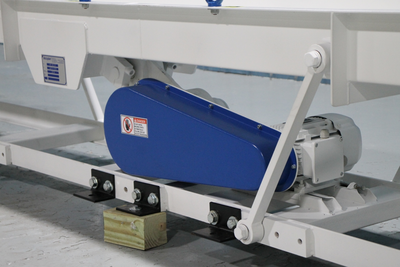

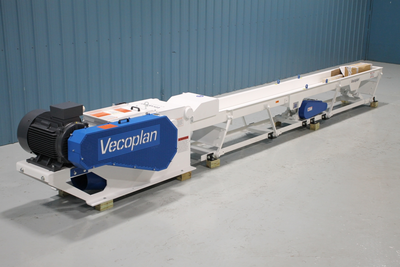

Infeed Conveyor Included: 16" long
Drive Motor HP 60
Allen Bradley Controls (UL) / NEMA 4 enclosure - requires 250 AMP service
