USED KMT 10177855

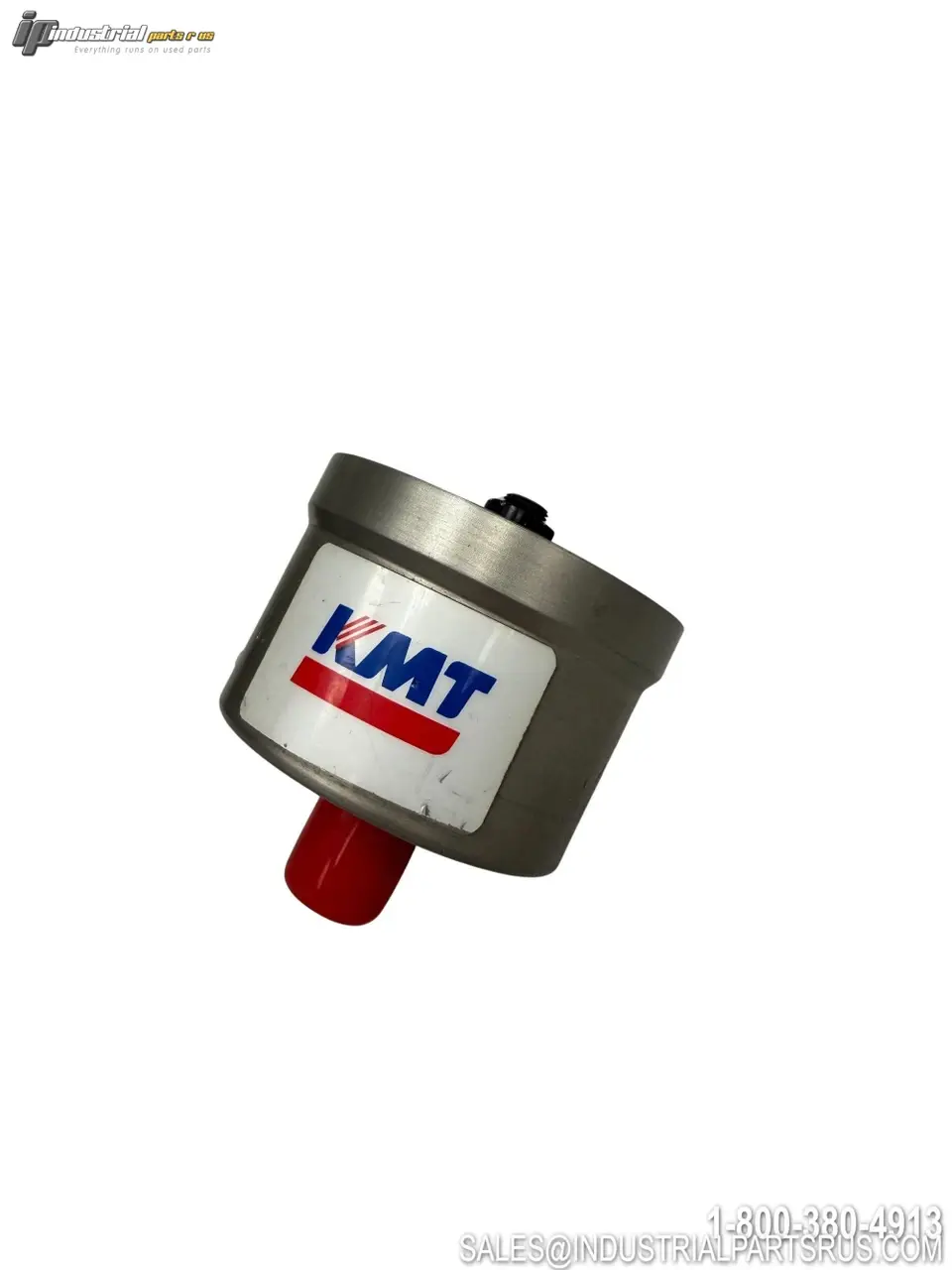

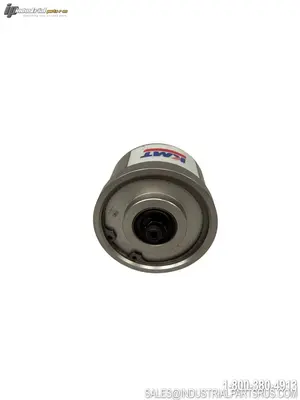

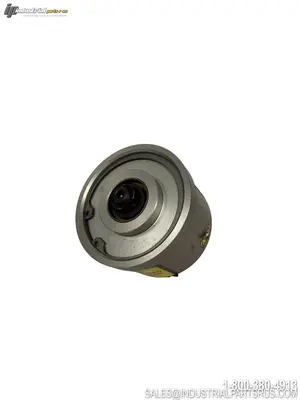

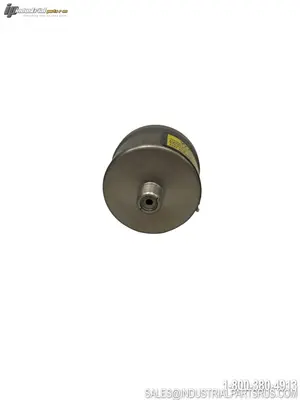

The KMT 10177855 is a pneumatic cylinder actuator assembly for the normally closed (N/C) high-pressure cutting valve used on KMT Waterjet Streamline series pumps and cutting systems rated at 60,000 PSI (60K / 4,100 bar). It is a sub-component of the Pneumatic Control Valve assembly (KMT #10138824) and houses the piston (KMT #10176550, 2.746" diameter) that actuates the high-pressure on/off cutting valve. This OEM-certified part is compatible with KMT Streamline SL-IV, SL-V, SL-VI, S30, and Classic Series 60K waterjet pumps, and is also known as ACTR ASSY-PNEU, NC in KMT parts nomenclature.
Specification
Value
Brand
KMT
Model / Part Number
10177855
Description
Cylinder Assembly, Pneumatic Control Valve (Actuator Assembly, N/C)
Cylinder Type
Pneumatic, Normally Closed (N/C)
Pressure Rating
60,000 PSI (60K) / 4,100 bar
Piston Diameter
2.746 in (KMT Piston P/N 10176550)
Actuation Type
Pneumatic (spring-return, normally closed)
Assembly Torque
5 ft-lbs (7 Nm)
Parent Assembly
Pneumatic Control Valve, NC – KMT #10138824
Compatible Systems
KMT Streamline S30, SL-IV, SL-V, SL-VI, Classic Series (60K)
Application
Waterjet Cutting Valve / On-Off Valve Actuator
Cross-Reference / Replaces
AccuStream 1-12089 | WSI VL10177855 | 0560996118 | 103222
Manufacturer
KMT Waterjet Systems (Shape Technologies Group)
We warranty all items for 30 days from date of purchase.
