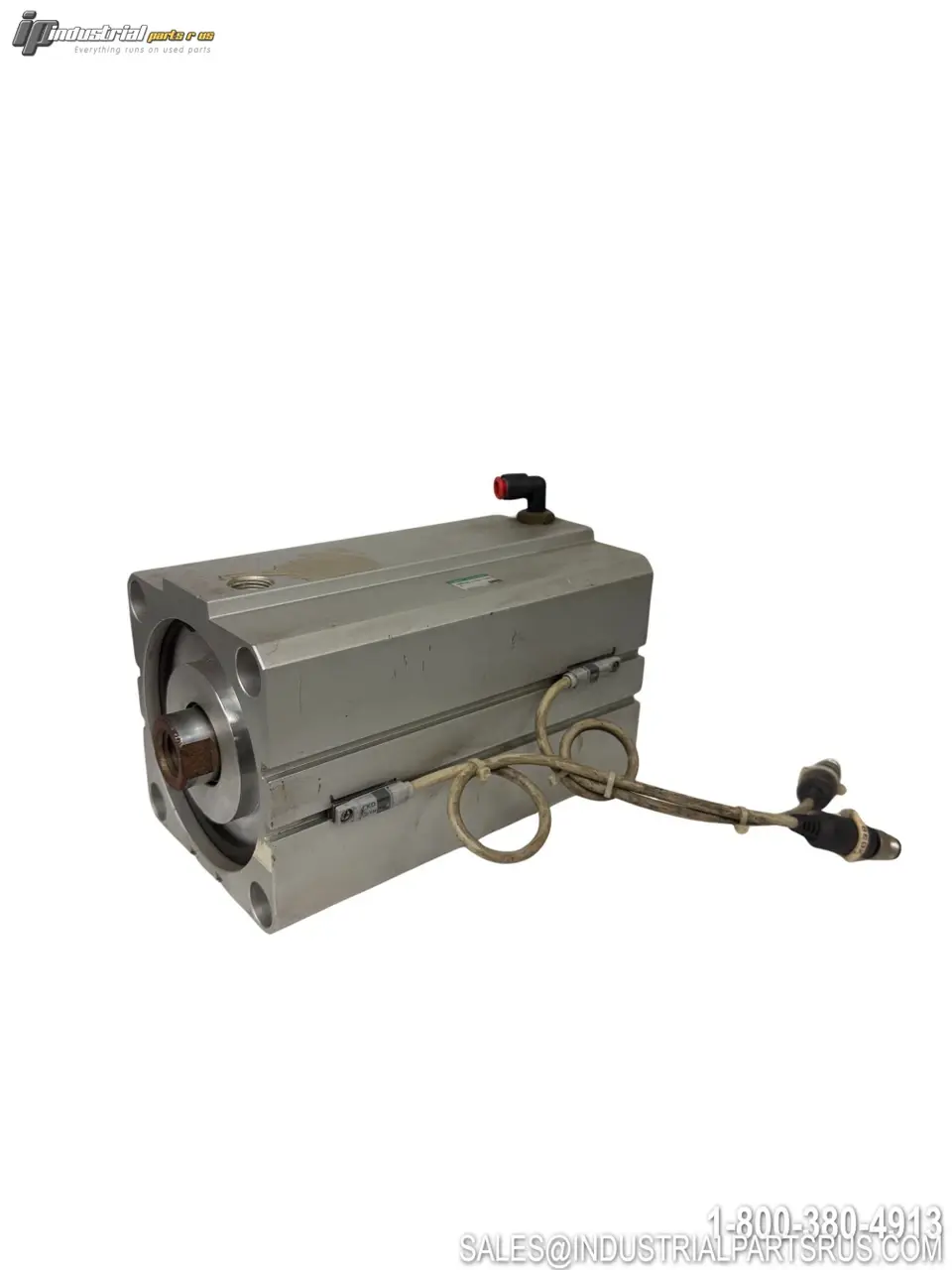

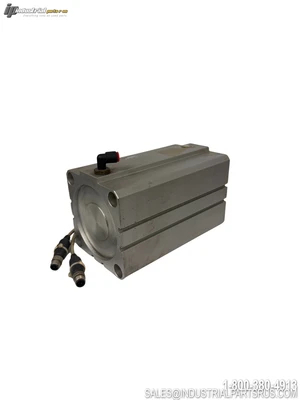

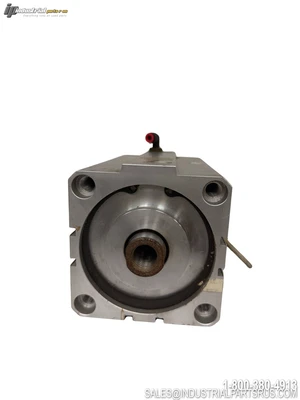

USED CKD SSD-KL-100-130-N

The CKD SSD-KL-100-130-N is a space-saving compact pneumatic cylinder from CKD's SSD-K Series, featuring a high load (K) coolant proof scraper (L) design with a 100 mm bore and 130 mm stroke. It is a double-acting, single-rod cylinder with a square cross-sectional body that integrates the cylinder switch groove into the body for a reduced overall length. The "-N" suffix designates NPT port thread type, making it suitable for North American pneumatic plumbing systems.
Specification
Value
Brand
CKD
Model / Part Number
SSD-KL-100-130-N
Series
SSD-K (Compact Cylinder, High Load)
Cylinder Type
Compact Cylinder – Double Acting / High Load / Coolant Proof Scraper
Bore Diameter
100 mm (ø100)
Stroke Length
130 mm
Actuation
Double Acting
Rod Configuration
Single Rod
Working Fluid
Compressed Air
Max. Working Pressure
1.0 MPa (≈145 psi, 10 bar)
Min. Working Pressure
0.1 MPa (≈15 psi, 1 bar)
Proof Pressure
1.6 MPa (≈230 psi, 16 bar)
Port Thread Type
NPT (N suffix)
Port Size
NPT 3/8
Working Piston Speed
50 to 500 mm/s
Ambient Temperature
-10°C to 60°C (no freezing)
Lubrication
Not required (use Turbine Oil Class 1 ISO VG32 if lubricating)
Coolant Proof Scraper
Yes – NBR Scraper (L designation)
Body Shape
Square cross-section (space-saving design)
Switch Groove
Integrated into body (switch mountable on 3 sides)
Rod End Thread
Female thread (standard)
Mounting
Direct mount via hexagon socket head cap screw
We warranty all items for 30 days from date of purchase.
