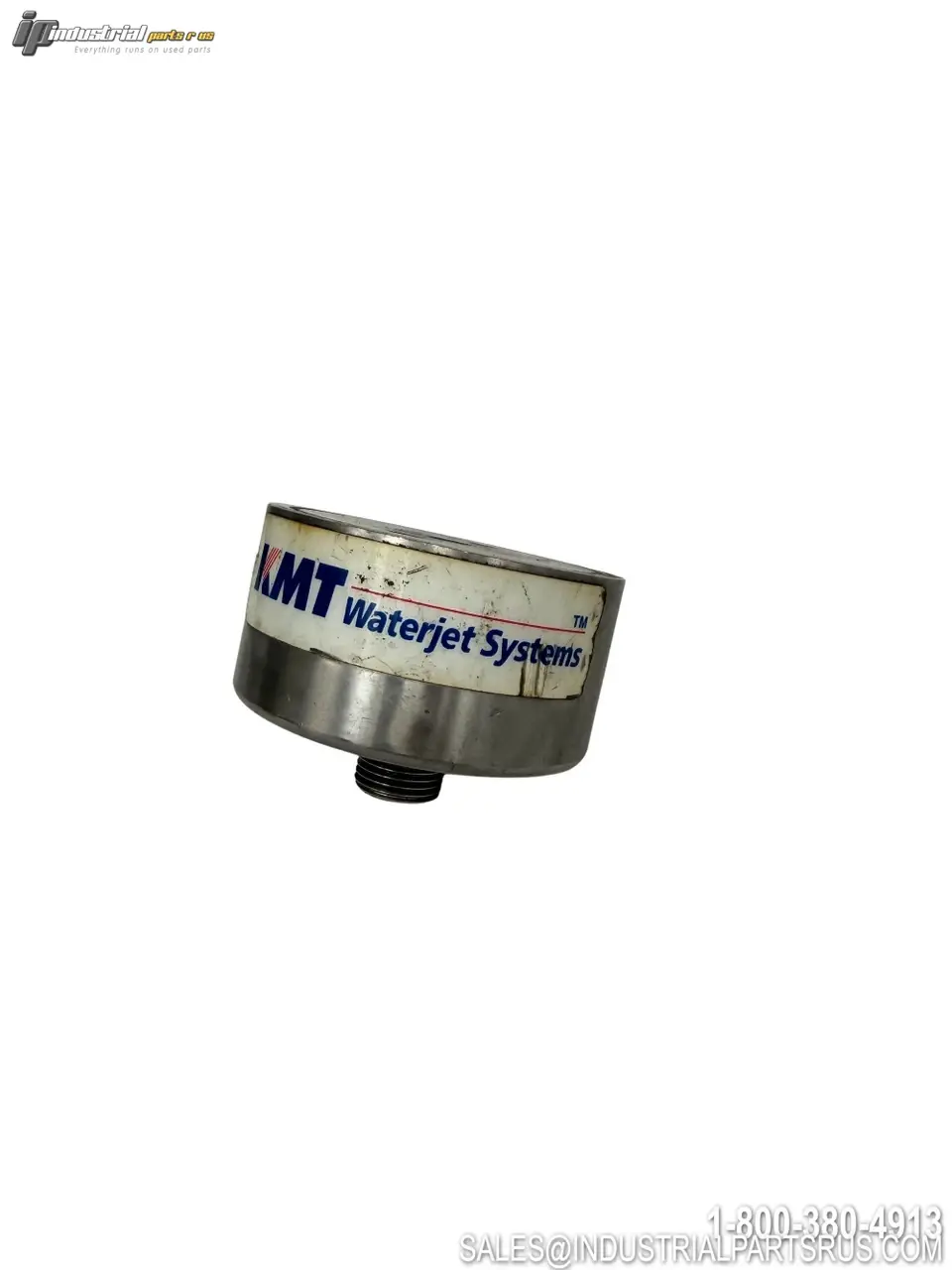

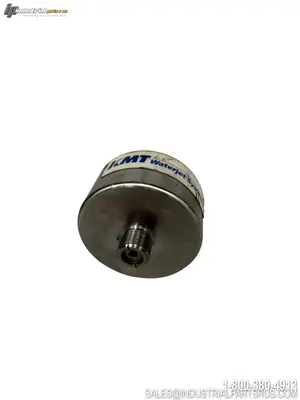

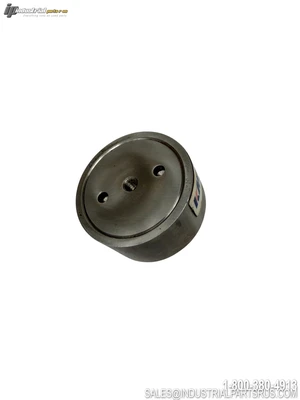

USED KMT 10189553

The KMT 10189553 is a High-Pressure (HP) Normally Open (N/O) Pneumatic Actuator Assembly designed for use in 60,000 PSI (60K) waterjet cutting systems. This component serves as the bleed-down / dump valve actuator on the cutting head, functioning in its open (flowing) state by default and requiring applied air pressure to close and initiate a cut. Upon loss of air pressure, the valve automatically opens to safely release any stored high-pressure water. It is a direct OEM KMT part used across a wide range of KMT Streamline and Classic Series 60K waterjet machines.
Specification
Value
Brand
KMT
Model / Part Number
10189553
Product Type
Pneumatic Actuator Assembly (Valve)
Valve Configuration
Normally Open (N/O)
Valve Function
Bleed Down / Dump Valve
Pressure Rating
60,000 PSI (60K / ~4,100 bar)
Actuation Type
Pneumatic (air-actuated)
Default State
Open (closes when air pressure applied)
Fail-Safe Behavior
Opens automatically on loss of air pressure — releases stored water pressure
Application
KMT Waterjet Cutting Head — On/Off Valve Assembly
Compatible Systems
KMT Streamline SL-VI, Classic Series, and other 60K waterjet machines
Valve Body Style
Square Body, 2-Port, HP
HP Supply Port Size
3/8" HP Connection
Compatible Repair Kit
KMT 05116017 (Pneumatic Valve Repair Kit, HP, N/O, 60K)
Manufacturer
KMT Waterjet Systems
We warranty all items for 30 days from date of purchase.
