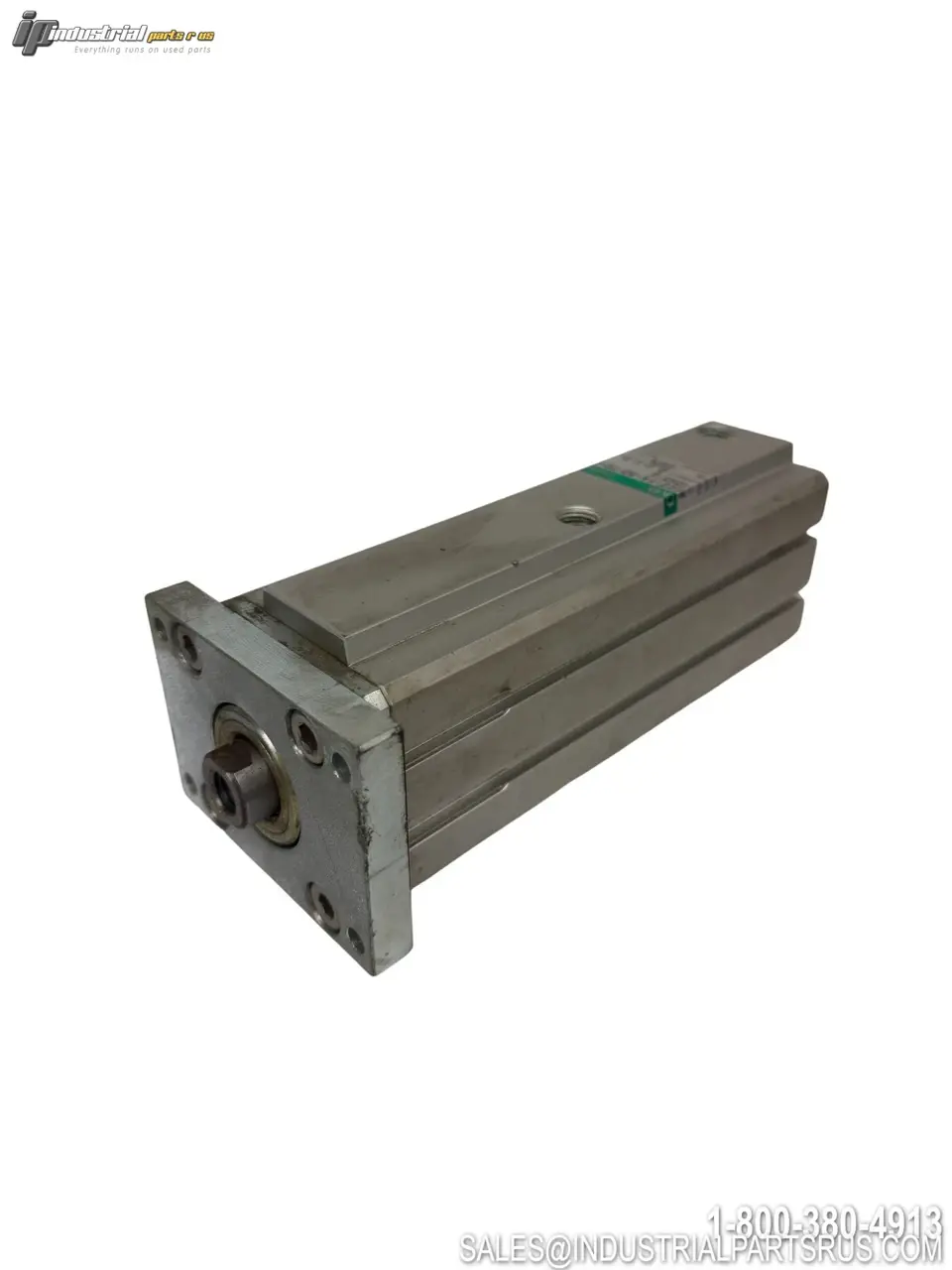

USED CKD RCC2-FA-50-70-R

The CKD RCC2-FA-50-70-R is a double-guide-type rotary clamp cylinder that integrates a rotary clamping mechanism into a compact, square-profile body. It features a 50mm bore diameter with a 70mm stroke, rod-side flange (FA) mounting, and clockwise rotation direction when retracted (R). The RCC2 series incorporates two guide grooves on the piston rod and rollers on the guide pins (ø32 to ø50 bore sizes) for improved wear resistance and high rigidity, making it well-suited for clamping small workpieces such as electronic components in space-constrained fixtures.
Specification
Value
Brand
CKD
Model / Part Number
RCC2-FA-50-70-R
Product Type
Rotary Clamp Cylinder
Series
RCC2 (Double Guide Type)
Bore Diameter
50 mm (ø50)
Stroke Length
70 mm
Mounting Style
FA – Rod Side Flange
Rotation Direction
R – Clockwise (CW) when retracted
Rotation Angle
90°
Actuation
Double Acting
Working Fluid
Compressed Air
Max. Working Pressure
1.0 MPa (145 PSI)
Min. Working Pressure
0.1 MPa (14.5 PSI)
Proof / Withstanding Pressure
1.5 MPa (217 PSI)
Port Size
Rc 1/4 (standard for ø50 bore)
Port Thread Type
Rc (BSPT) – blank/default
Ambient Temperature
-10°C to +60°C (no freezing)
Guide Type
Double Guide (2 guide grooves)
Guide Pin Feature
Roller equipped on guide pin (standard for ø50)
Body Shape
Square / Compact
Switch Compatibility
Reed, Proximity, Strong Magnetic Field-Proof switches mountable
Cylinder Type
Single Rod
Application
Clamping – workpiece fixture, electronic component assembly
Manufacturer
CKD Corporation
We warranty all items for 30 days from date of purchase.
