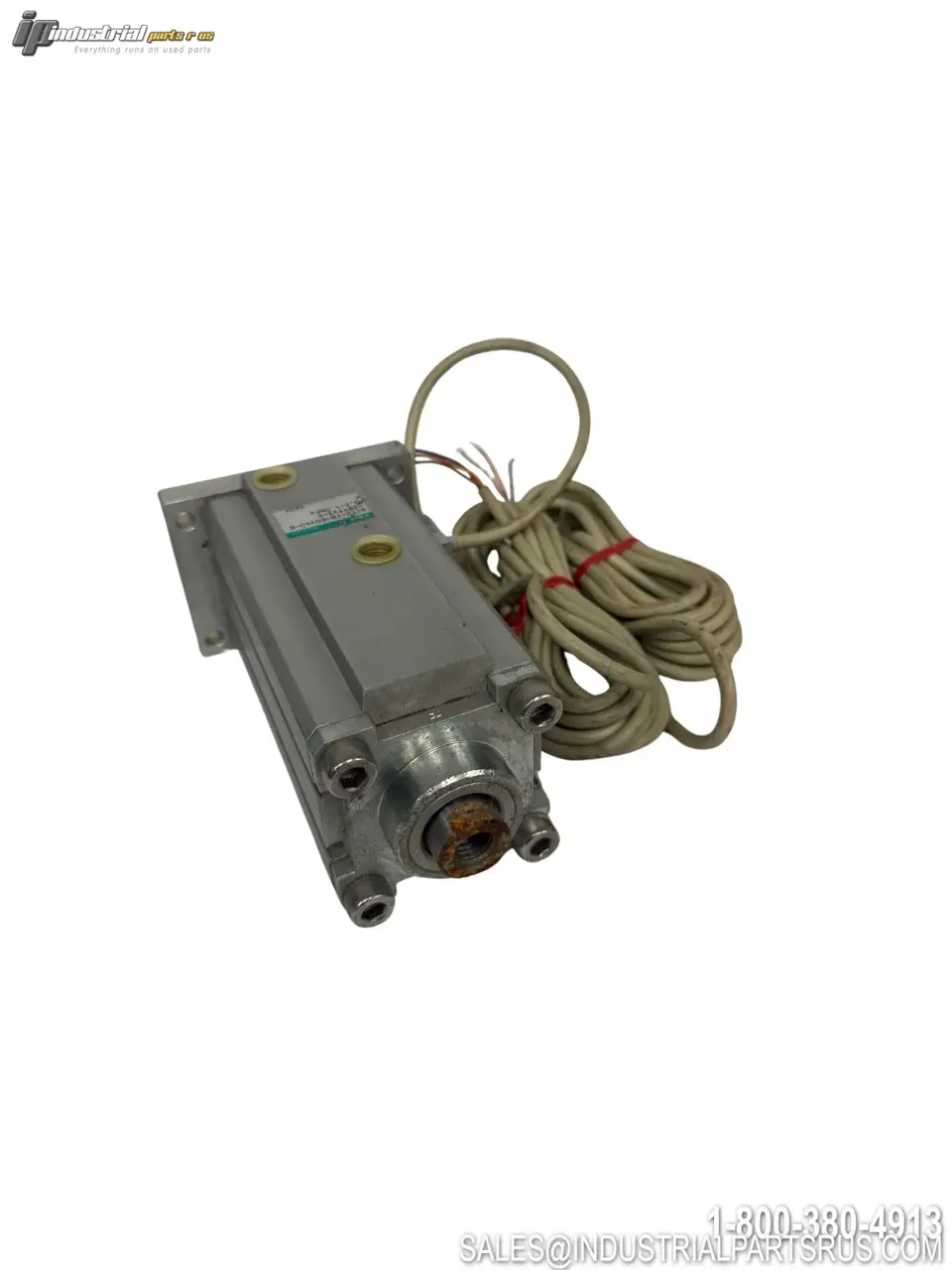

USED CKD RCC2-FB-50-40-R-T2YFV3-D

The CKD RCC2-FB-50-40-R-T2YFV3-D is a double-guide type rotary clamp cylinder with a 50mm bore and 40mm stroke, designed for compact, space-saving clamping applications. It features a square body design that incorporates the rotary clamp mechanism, making it well-suited for clamping small workpieces such as electronic components. This unit is configured with head-side flange (FB) mounting, right-hand (clockwise) 90° rotation at clamp, and two T2YF-series proximity switches with vertical lead wires and 3-meter lead wire length for use in AC magnetic field / spot welding environments.
Specification
Value
Brand
CKD
Model / Part Number
RCC2-FB-50-40-R-T2YFV3-D
Product Type
Rotary Clamp Cylinder (Double Guide Type)
Series
RCC2
Bore Diameter
50 mm (ø50)
Stroke Length
40 mm
Mounting Style
FB – Head Side Flange
Rotation Direction
R – Right / Clockwise (90° at clamp, viewed from rod end)
Rotation Angle
90°
Cylinder Action
Double Acting, Single Rod
Working Fluid
Compressed Air
Max. Operating Pressure
1.0 MPa (145 PSI)
Min. Operating Pressure
0.1 MPa
Switch Model
T2YFV3 – Proximity Switch, AC Magnetic Field Resistant (Spot Welding), Vertical Lead, 3m Lead Wire
Switch Quantity
2 (Code D)
Switch Type
Proximity (T2Y series – AC magnetic field / spot welding resistant)
Guide Type
Double Guide (2 guide grooves)
Guide Feature
Roller equipped on guide pin (ø32 to ø50 bore sizes)
Port Size
Rc 1/4 (ø50 bore)
Lubrication
Non-lube (lubrication not required)
Cushion Type
Rubber Bumper
Bore Size Range (Series)
ø20 to ø63
Suitable Media
Compressed Air
Body Shape
Square (Space Saving)
Manufacturer
CKD Corporation
