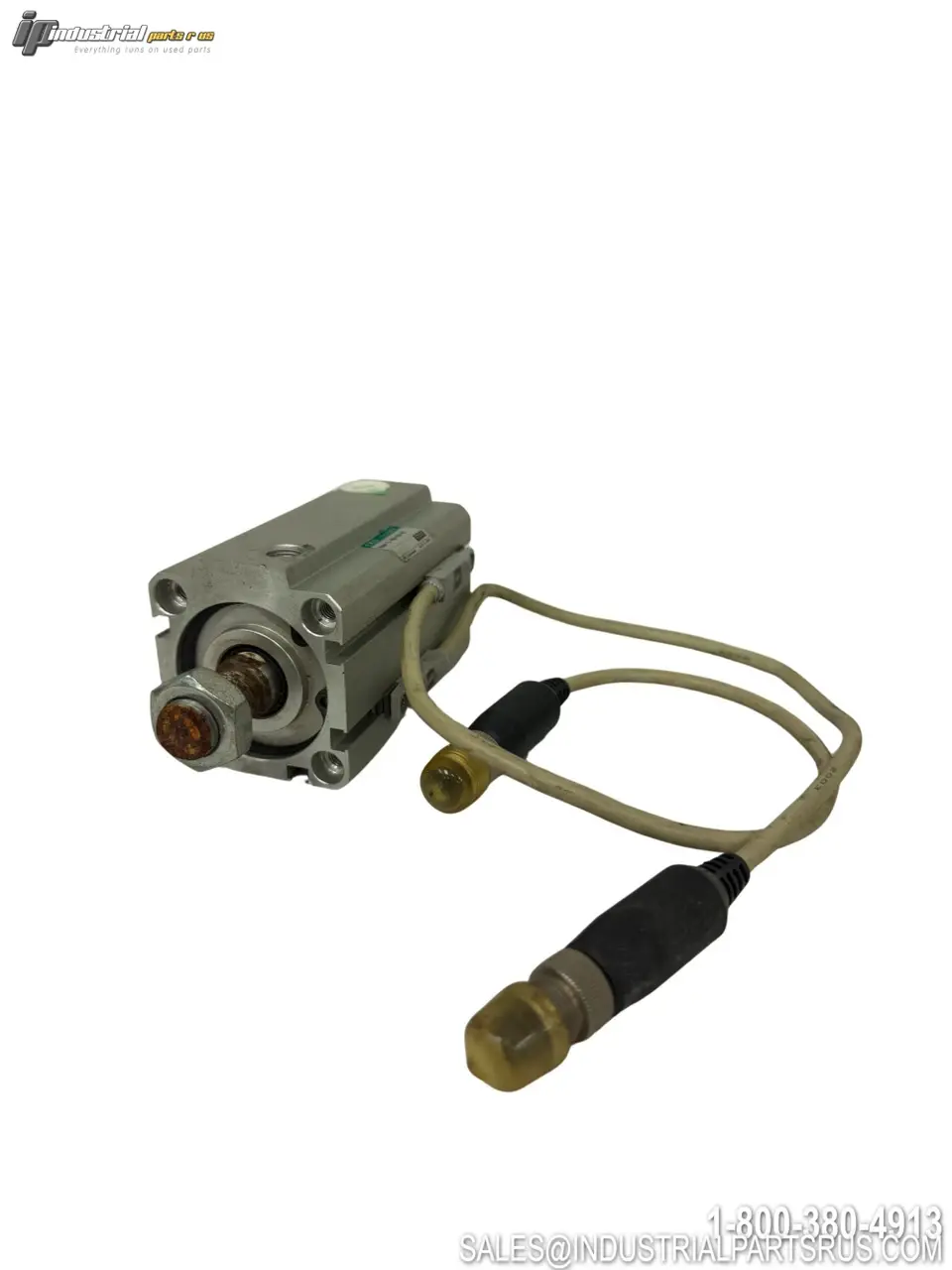

USED CKD SSD-L-40-50-N

The CKD SSD-L-40-50-N is a space-saving compact pneumatic cylinder from CKD's SSD Series, featuring a square body design with a 40 mm bore diameter and 50 mm stroke length. It is a double-acting, single-rod configuration with a male-threaded rod end option (suffix "-N") and is engineered for reliable performance in general industrial automation applications. The cylinder integrates cylinder switch mounting grooves on four surfaces, allowing flexible sensor placement and easier maintenance access.
Specification
Value
Brand
CKD
Model / Part Number
SSD-L-40-50-N
Series
SSD (Compact Cylinder)
Product Type
Compact Cylinder
Cylinder Action
Double Acting
Rod Configuration
Single Rod
Bore Diameter
40 mm
Stroke Length
50 mm
Rod End Type
Male Thread (Option -N)
Working Fluid
Compressed Air
Max. Working Pressure
1.0 MPa (≈145 psi / 10 bar)
Min. Working Pressure
0.1 MPa (≈15 psi / 1 bar)
Proof Pressure
1.6 MPa (≈232 psi / 16 bar)
Port Size
Rc 1/8
Working Piston Speed
50 to 500 mm/s
Cushion
Selectable (no cushion or rubber cushion)
Ambient Temperature
-10°C to +60°C (no freezing)
Lubrication
Not Required (turbine oil ISO VG32 if lubricated)
Stroke Tolerance (No Cushion)
+1.0 mm
Stroke Tolerance (Rubber Cushion)
+2.0 mm
Body Style
Square / Space-Saving
Switch Mounting
Grooves on Four Surfaces
Approximate Weight
~316 g (50 mm stroke, ø40 bore)
We warranty all items for 30 days from date of purchase.
