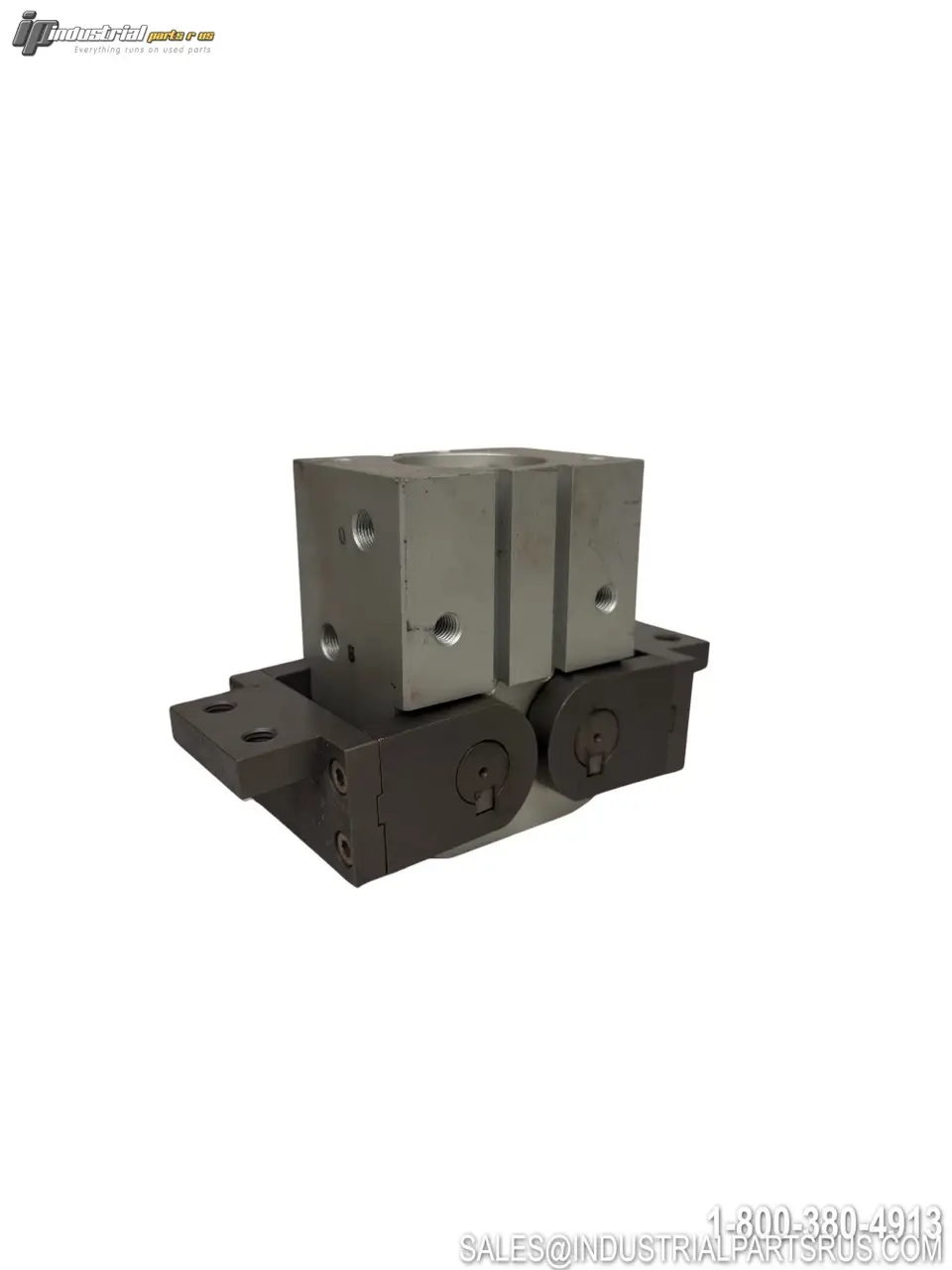

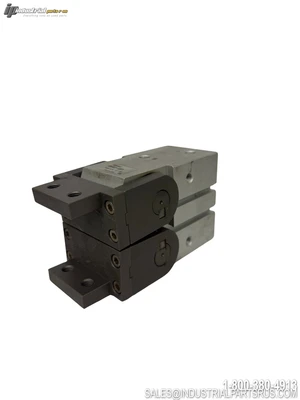

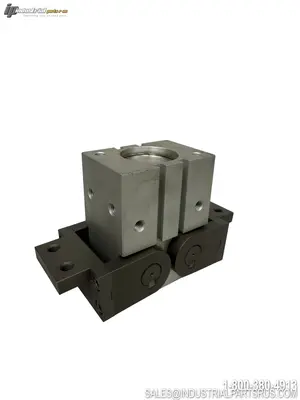

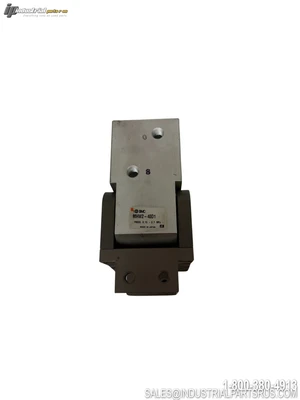

USED SMC MHW2-40D1

The SMC MHW2-40D1 is a 180° Angular Style Air Gripper using a rack and pinion mechanism, featuring a 40 mm bore and double-acting operation with external grip. Its unique seal construction provides a shortened overall body length and constant grip strength throughout the open/close cycle, while a dustproof structure and standard-equipped bearings make it well-suited for machine tool workpiece removal, loading, and holding applications. The two synchronized fingers rotate back perpendicular to the gripper body for space-saving, low-clearance X-Y plane transfer moves.
Specification
Value
Brand
SMC
Model / Part Number
MHW2-40D1
Series
MHW2
Product Type
180° Angular Air Gripper, Rack & Pinion Style
Bore Size
40 mm
Action Type
Double Acting — External Grip
Number of Fingers
2
Finger Option
Right Angle Type Fingers, Tapped Mounting (D1)
Opening Angle (Both Sides)
180°
Effective Gripping Force
3.70 N·m
Operating Pressure
0.15 to 0.7 MPa (21.8 to 101.5 psi)
Fluid
Air
Ambient / Fluid Temperature
–10 to 60°C (14 to 140°F)
Repeatability
±0.2 mm
Max. Operating Frequency
30 c.p.m.
Lubrication
Not Required
Port Thread Type
Rc (PT) 1/4 — Finger Opening & Closing Ports
Mounting Thread
M10 × 1.5
Weight (Open)
2140 g
Weight (Closed)
2270 g
Auto Switch Mounting Positions
4 locations available (optional)
Auto Switch (as configured)
Without Auto Switch
Compatible Auto Switch Type
Solid State (3-wire, 2-wire)
Dustproof Structure
Yes
Bearings
Standard Equipped
Grease Pack Replacement Part
MH-G04 (30 g)
Manufacturer
SMC Corporation
We warranty all items for 30 days from date of purchase.
