USED SMC MGPM50N-25

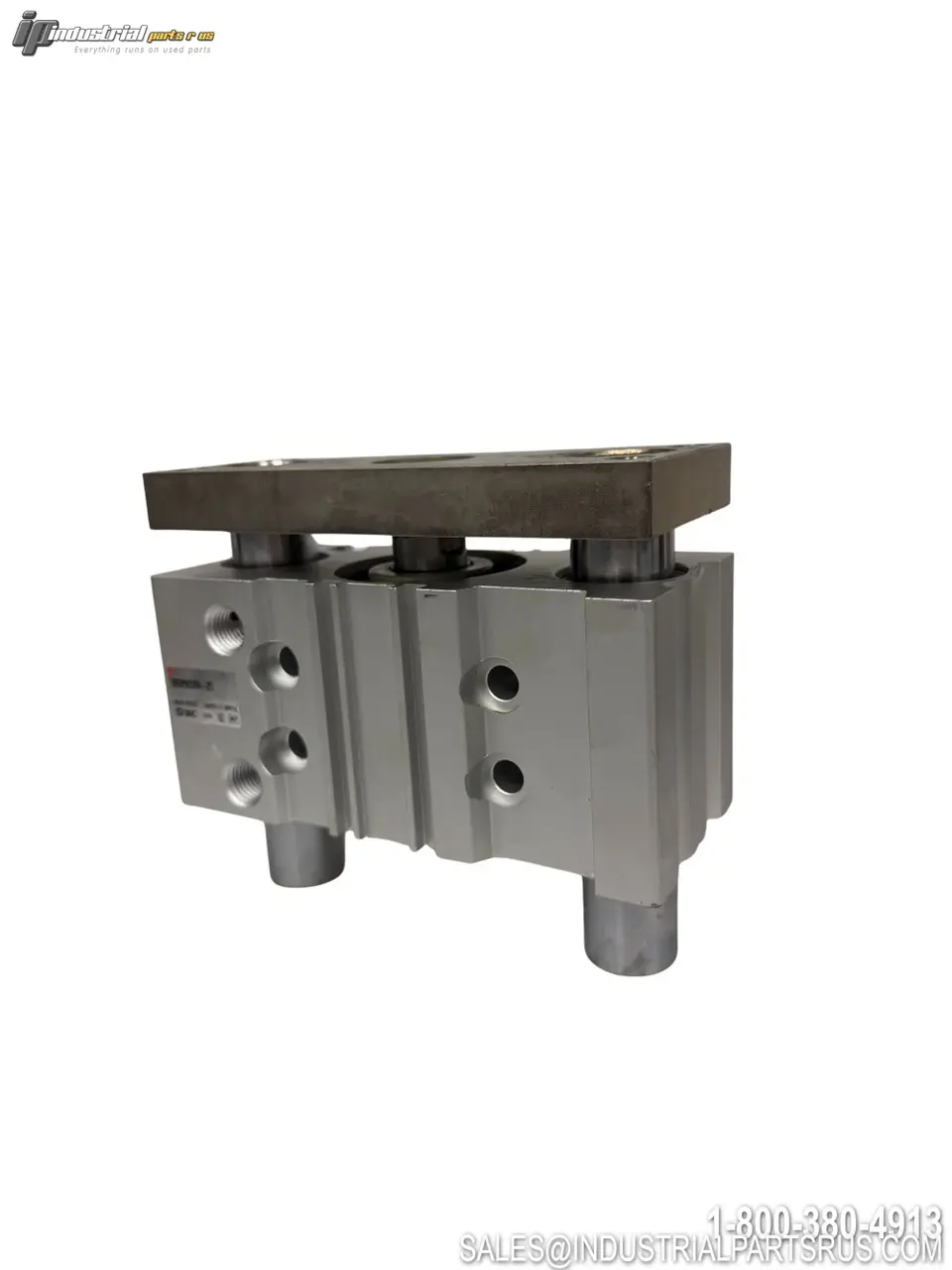

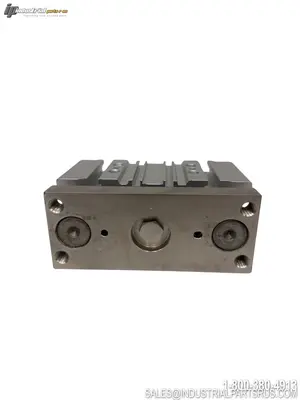

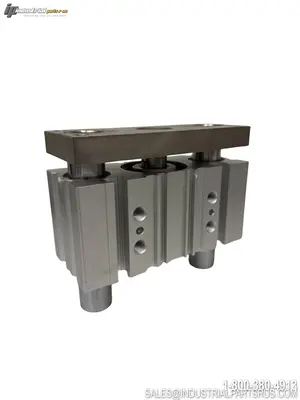

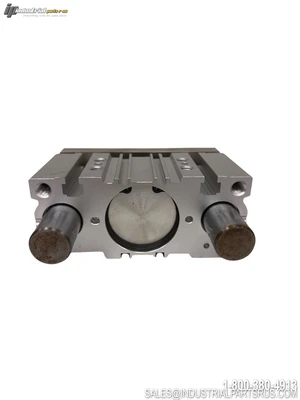

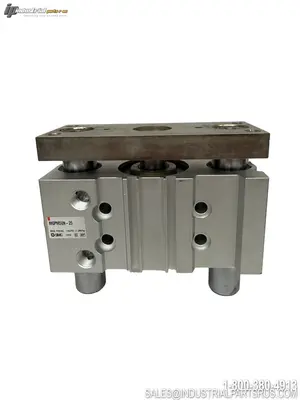

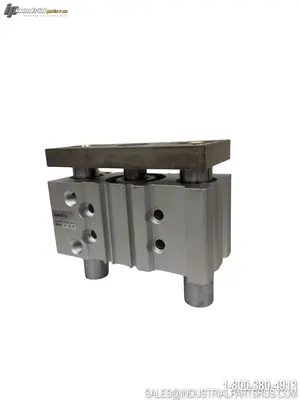

The SMC MGPM50N-25 is a compact guide cylinder from SMC's MGP series, featuring a 50mm bore and 25mm stroke with a carbon steel alloy slide bearing and an integrated rod-end lock mechanism. It is designed for high side load applications in material handling, lifting, and stopping, with an ultra-compact body that incorporates the cylinder body as part of the guide body. The MGPM50N variant includes a built-in magnet, rod-end lock, manual lock release, and rubber bumpers on both ends for reliable stroke-end cushioning. Compatible with SMC auto switches and suitable for use with compressed air as the operating fluid.
Specification
Value
Brand
SMC
Model / Part Number
MGPM50N-25
Series
MGP
Cylinder Type
Compact Guide Cylinder with End Lock
Bore Diameter
50 mm
Stroke Length
25 mm
Cylinder Action
Double Acting
Bearing Type
Slide Bearing (Carbon Steel Alloy)
Maximum Operating Pressure
145 PSI / 1.0 MPa
Minimum Operating Pressure
22 PSI / 0.15 MPa
Proof Pressure
218 PSI / 1.5 MPa
Port Size
1/4" (Rc / NPT)
Number of Ports
2
Piston Speed
50–500 mm/s
Seal Material
NBR (Nitrile Rubber)
Cushion Type
Rubber Bumper (Both Ends)
Body / Plate Material
Aluminum Alloy, Hard Anodized
End Lock Type
Rod-End Lock with Manual Release
Built-in Magnet
Yes (for auto switch compatibility)
Non-Rotating Accuracy
±0.05° (50 mm bore)
Fluid
Compressed Air
Ambient Operating Temperature
-10°C to +60°C (14°F to 140°F)
Mounting Style
T-Slot (Top and Side)
Switch Mounting Grooves
Yes – Two Sides
Stroke Availability (ø40–100mm)
5 mm increments
Manufacturer
SMC Corporation
We warranty all items for 30 days from date of purchase.
