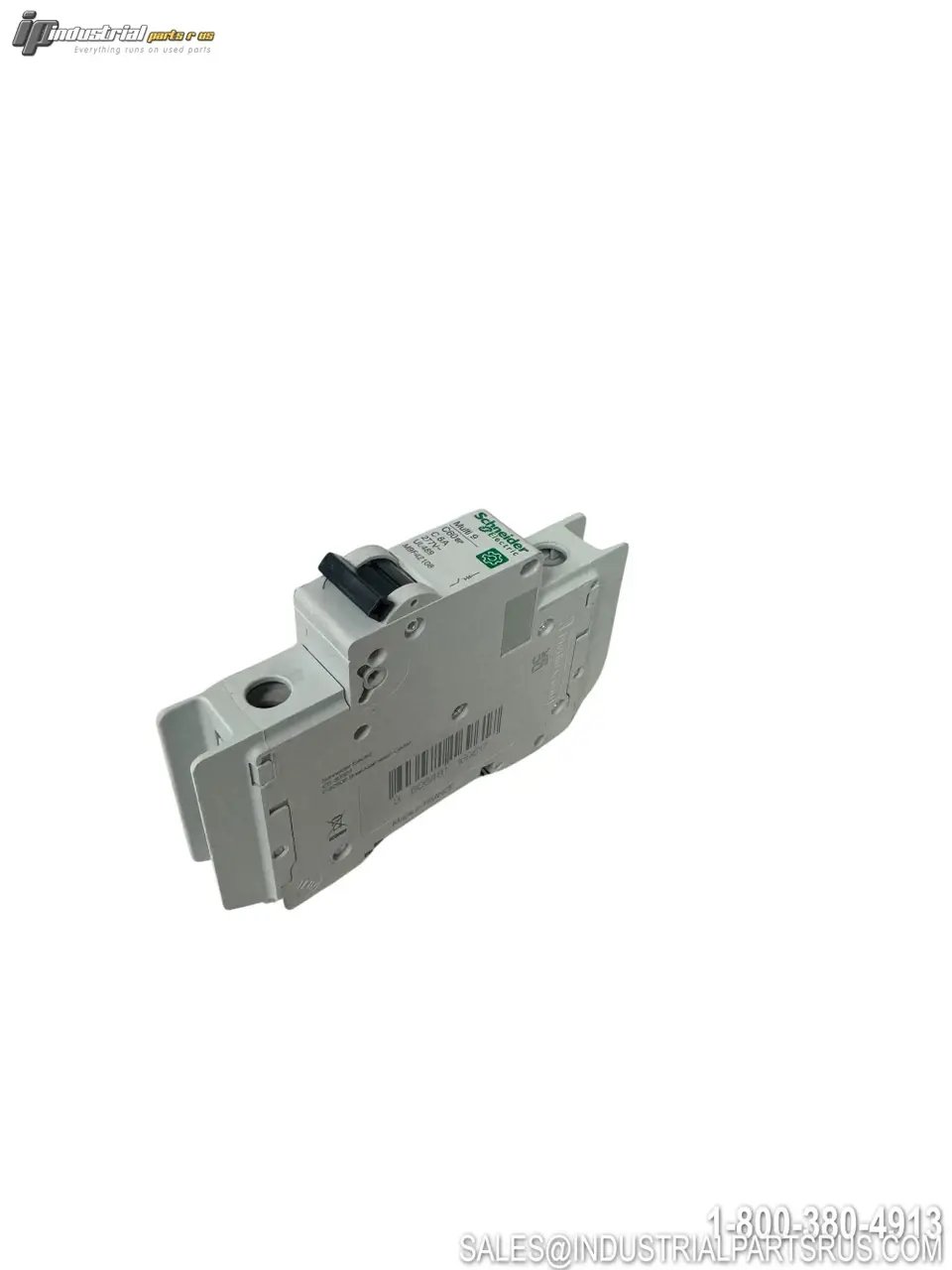

NEW SCHNEIDER MULTI 9 C60BP

The Schneider Electric Multi 9 C60BP is a low-voltage miniature circuit breaker (MCB) designed for branch circuit protection per UL 489 and industrial/residential standards EN/IEC 60947-2 and EN/IEC 60898-1. It provides protection against short circuits, overloads, and earth leakage, and is dedicated for use by OEMs and control panel builders in high-density DIN rail enclosures. The C60BP is available in 1P, 2P, and 3P configurations with tripping curves B, C, D, and K, and ampere ratings from 1A to 60A. The halogen-free thermoplastic housing (UL94 V-0) supports isolation duty and is compatible with auxiliary contacts and other Multi 9 accessories.
Specification
Value
Brand
Schneider Electric
Model / Device Short Name
Multi 9 C60BP
Product Range
Multi 9
Product Type
Miniature Circuit Breaker (MCB)
Device Application
Branch Circuit Protection (UL 489) / Distribution
Available Poles
1P, 2P, 3P
Ampere Range
1A to 60A (at 25°C per EN/IEC 60947-2)
Available Tripping Curves
B, C, D, K
Trip Unit Technology
Thermal-magnetic
Operational Voltage (Ue)
240VAC
Rated Insulation Voltage (Ui)
500VAC
Rated Impulse Withstand Voltage (Uimp)
6kV
Breaking Capacity (Icu) @ 240VAC
Up to 20kA (per EN/IEC 60947-2)
Breaking Capacity (Icu) @ 415VAC
Up to 10kA (per EN/IEC 60947-2)
Breaking Capacity (AIR) @ 240VAC
14kA (UL 489)
Breaking Capacity (AIR) @ 480Y/277VAC
10kA (UL 489)
Network Type
AC and DC
Mounting Type
DIN Rail (clip-on)
Width per Pole
18mm (2 pitches of 9mm per pole)
Dimensions 1P (W x H x D)
18mm x 103mm x 72mm
Dimensions 2P (W x H x D)
36mm x 103mm x 72mm
Dimensions 3P (W x H x D)
54mm x 103mm x 72mm
Degree of Protection (Terminals)
IP20 (IEC/EN 60529)
Degree of Protection (Modular Enclosure)
IP40 (IEC 60529)
Pollution Degree
3
Color
Light Grey (RAL 7035)
Operating Temperature
-30°C to 70°C
Electrical Endurance
10,000 cycles
Mechanical Endurance
20,000 cycles
Wire Connection Type
Tunnel type terminal (top or bottom)
Wire Size – Rigid / Ferrule
1–25 mm² (AWG 18–AWG 8)
Wire Size – Flexible
1–16 mm² (AWG 18–AWG 8)
Compliance Standards
UL 489, CSA C22.2 No.5, EN/IEC 60898-1, EN/IEC 60947-2, GB/T 14048.2
Target Application
OEM / Control Panel Builders
