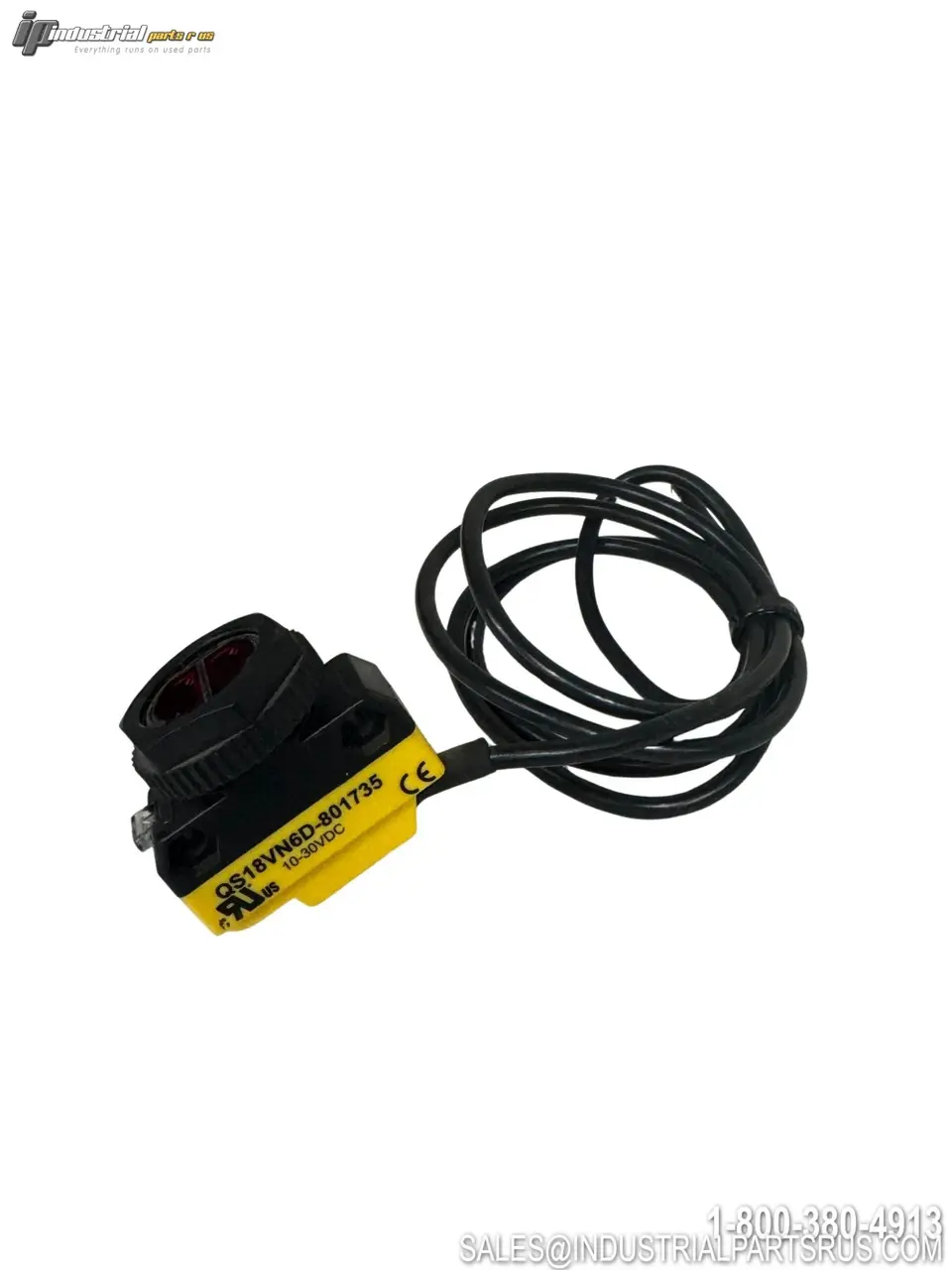

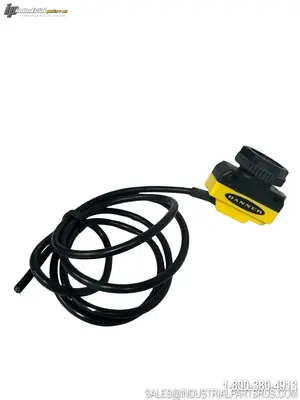

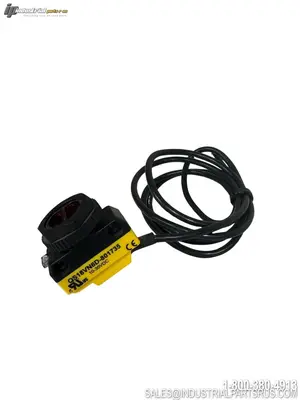

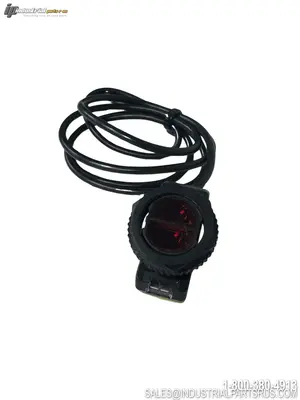

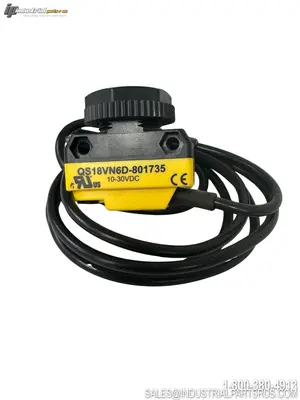

NEW BANNER QS18VN6D-801735

The Banner Engineering QS18VN6D-801735 is a WORLD-BEAM QS18 Series miniature self-contained diffuse-mode photoelectric sensor in a universal rectangular housing. It features a 450 mm sensing range using 940 nm infrared light, complementary NPN solid-state output (Light-ON / Dark-ON selectable), and a potentiometer for sensitivity adjustment. The sensor is pre-wired with a 2 m (6.5 ft) unterminated cable and is rated IP67 / NEMA 6, making it suitable for demanding industrial environments. Note: This part number (801735) is discontinued by Banner Engineering; contact Banner for a recommended replacement.
Specification
Value
Brand
Banner Engineering
Model / Part Number
QS18VN6D-801735
Series
WORLD-BEAM QS18
Sensor Type
Photoelectric — Diffuse Mode
Sensing Range
0 – 450 mm (0 – 18 in)
Light Source
940 nm Infrared (IR)
Supply Voltage
10–30 V DC (12 VDC / 24 VDC nominal)
Output Type
Complementary Solid-State NPN (NO/NC)
Output Current (max)
100 mA
Operating Mode
Light-ON / Dark-ON (selectable); Light Operate — No White Wire
Response Time
0.6 ms (less than 1 ms)
Sensitivity Adjustment
Potentiometer
Connection Type
Pre-wired, 2 m (6.5 ft) unterminated cable (bare end / flying leads)
Housing Material
Thermoplastic (ABS)
Lens Material
Acrylic
Housing Shape
Rectangular
Mounting Type
M18 Threaded Lens or Side Mount
Enclosure / IP Rating
IP67 / NEMA 6
Operating Temperature
-20°C to +70°C
Status Indicators
Bright LED, visible 360°
Power Type
DC
Product Status
Discontinued by Manufacturer
Banner Internal Part No.
61651 (individual unit); 801735 (catalog/order suffix)
We warranty all items for 30 days from date of purchase.
