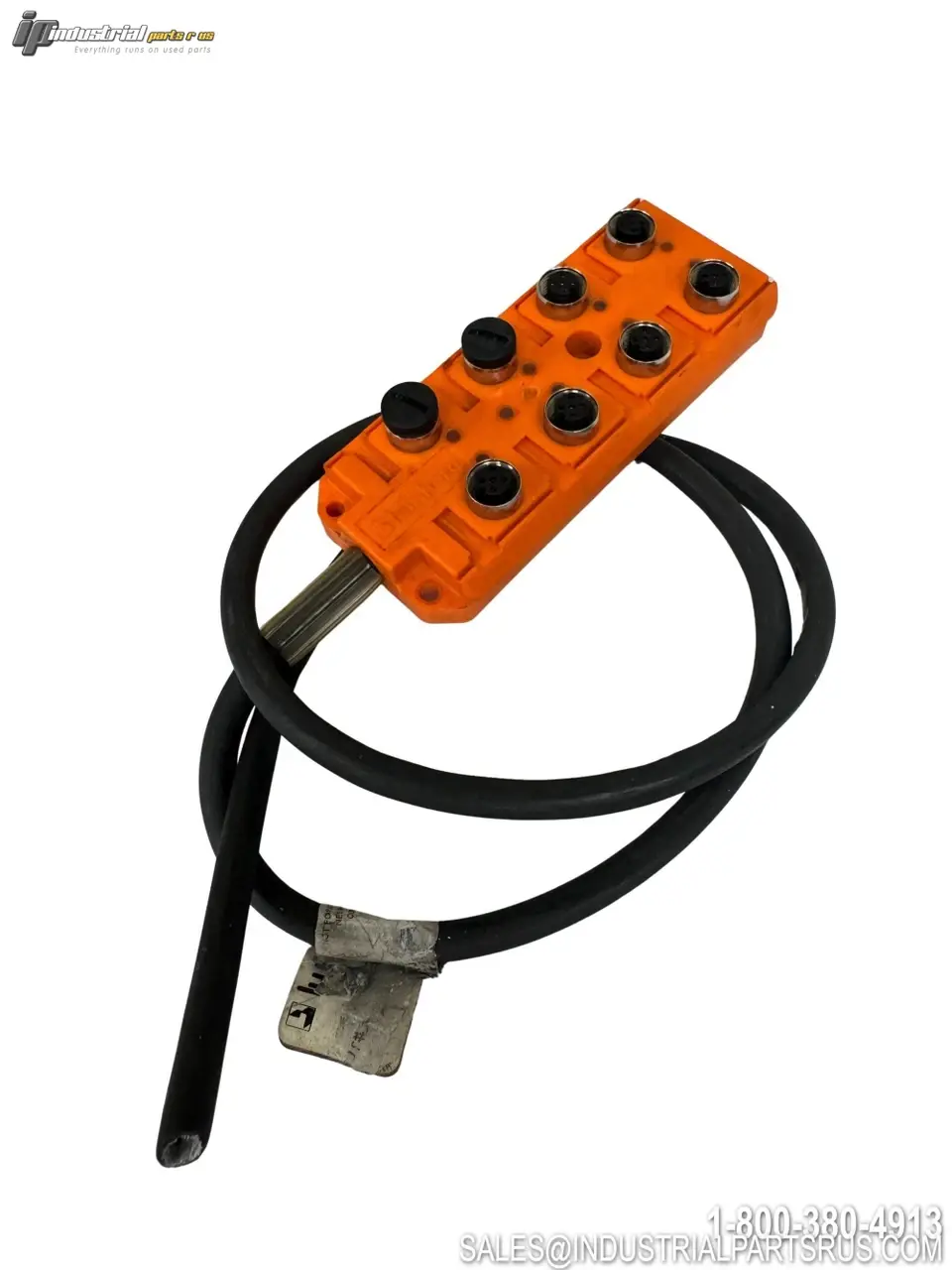

USED LUMBERG ASB 8/LED 5/4

The Lumberg ASB 8/LED 5/4 is a Micro M12 actuator/sensor distribution box designed for industrial automation applications. It provides 8 ports with M12, 5/4-pole, A-coded I/O connections, one signal per port, and features built-in LED indicators for system supply status (green) and individual port function (yellow). The unit is rated IP67 and NEMA 6P for reliable operation in demanding industrial environments. Digital signal type with M12 communication standard.
Specification
Value
Brand
Lumberg Automation
Model / Part Number
ASB 8/LED 5/4
Product Series
ASB Series
Product Type
Actuator/Sensor Distribution Box (Passive)
Number of Ports
8
Number of Poles (Ways)
4 (5/4-pole)
Signals Per Port
1
Output Connector Type
M12, A-coded, 5-pole female
Control Cable Interface
Open end / pigtail (no plug fitted)
LED Indicators
Green (system supply), Yellow (port status/function)
Operating Voltage
10 – 30 V DC
Max Measurement Voltage
32 V DC
Rated Current Per Port
4 A
Maximum Total Current
12 A
Contact Resistance
≤ 5 mΩ
Insulation Resistance
≥ 10 MΩ
IP Rating
IP67 / NEMA 6P
Pollution Degree
3
Operating Temperature
-15°C to +80°C
Housing Material
Plastic / TPE (TPU)
Housing Color
Orange
Contact Plating
Pre-nickelled and gold-plated
RoHS Compliant
Yes
Manufacturer
Lumberg Holding GmbH & Co. KG (Lumberg Automation / Belden)
We warranty all items for 30 days from date of purchase.
