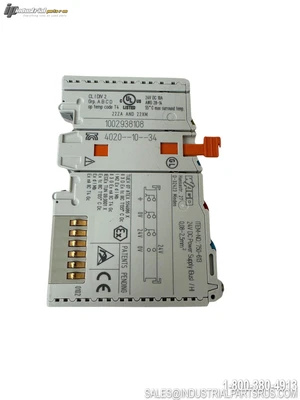

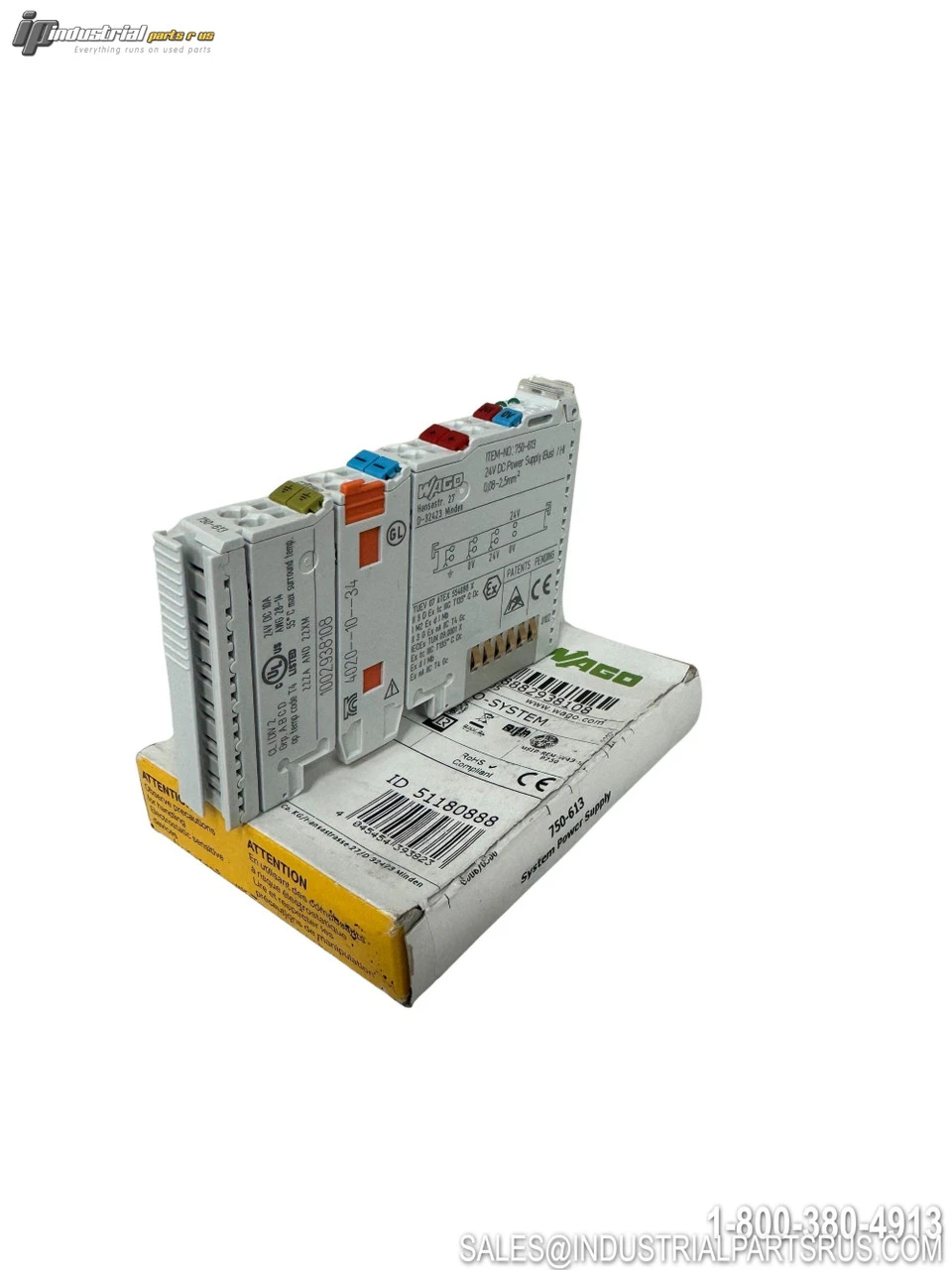

NEW WAGO 750-613

The Wago 750-613 is an internal system power supply module designed for the WAGO I/O System 750/753 series fieldbus nodes. It increases the internal system current supply capacity by 2A (48W max output), enabling high-current configurations where total module consumption exceeds the standard supply capability. The module accepts 24 VDC input via CAGE CLAMP spring connections, delivers 90% typical efficiency, and also passes field-side power to adjoining modules through integrated power jumper contacts.
Specification
Value
Brand
Wago
Model / Part Number
750-613
Product Family
WAGO I/O System 750/753
Description
System Power Supply; 24 VDC
Supply Voltage (Nominal)
24 VDC
Supply Voltage Range
18 – 31.2 VDC (−25% / +30%)
Input Current Max
500 mA
Total System Supply Current Output
2000 mA (2 A)
Field Supply Voltage
24 VDC (−25% / +30%); via power jumper contacts
Power Supply Efficiency (Typical)
90% at nominal load (24 V)
Signal Type
Voltage, DC 24 V
Termination Type
CAGE CLAMP® Spring Connection
Mounting Type
DIN-35 Rail (35 × 7.5 mm)
Module Width
12 mm
Module Height
64 mm
Module Length (Depth)
100 mm
Protection Rating
IP20
Operating Temperature
0°C to +55°C
Housing Material
Polycarbonate / Polyamide
Color
Light Gray
Jumper Contacts
3 Power Jumper Contacts
Mounting Position
Vertical
RoHS Compliant
Yes
Approvals
UL 508 (E175199), CE, ATEX, IECEx, DNV, ABS, BV, LR, KR, RINA, EAC, KC
Manufacturer Part Number (MFG)
51180888
We warranty all items for 30 days from date of purchase.
