USED 1996 MINSTER P2-150-60 PIECEMAKER

Tonnage: 150
Stroke: 5 inches
Shut Height: 29.5 inches
Adjustment: 5.5 inches
Bed Size: 60" x 40"
Ram Area: 60" x 40"
SPM: 45-120 VSPM

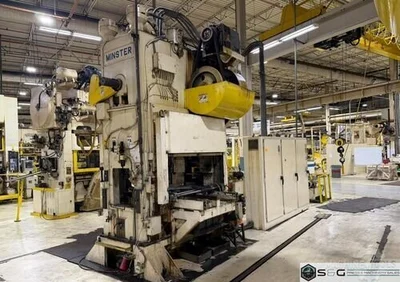

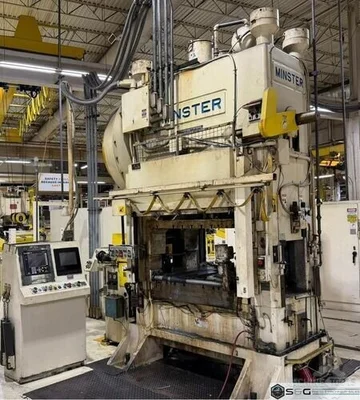

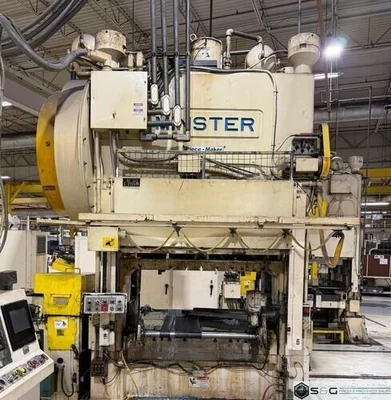

150-ton Minster P2-150-60 Geared Press For Sale
"Piece-Maker" Straight Side Metal Stamping Press
Includes Fully integrated Minster 10,000 lbs. x 20" Servo Coil Feed Line
Year 1996 - Can be Seen Under Power!

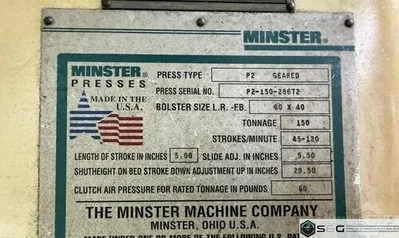

Standard Press SpecificationsMinster Press Serial Number P2-28672 Geared150-ton Capacity5" Stroke29.5" Shut Height on Bed (SDAU)23.5" Shut Height on Bolster (SDAU)5.5" Motorized Adjustment60" LR x 40" FB Bed Area60" LR x 40" FB Slide Area45-120 Variable Stroke Per MinuteEquipment and FeaturesMinster Combination Pneumatic Clutch and BrakeAir CounterbalancesMinster Monitor Flow Lubrications SystemSingle GearedAir Operated Flywheel BrakeTwo Point Eccentric ShaftEight adjustable bronze gibsT-Slotted Ram25 HP, 1800 RPM, 60 Cycle Main MotorHydraulic Tie Rod NutsPress Controls Include: Toledo Transducer PW4 Load Analyzer with four (4) strain links mounted on uprightsAllen Bradley PLC-5/30 programmable controllerAllen Bradley "Panel View" operator interface for the press and ancillary equipment

Tool storage (8 digit number) for 50 tools.
Limit switch settings stored with tool number.
Automatic press shut height and speed (SPM)  adjustment set from tool number.
All feed parameters including feed length, feed timing to press stroke, material acceleration, stock guide width, and material pass line setting set from tool number.
Straightener work roll and stock guide settings set from tool number.
Programming of die protection inputs (8 channels) to match die sensing for tool number
Programming of parts counters for tool numbers.
Programming of auxiliary equipment timing to press stroke such as air blowoffs, spray lubrication, and die functions.
Operator prompting and diagnostic capability.
Controls die clamping.

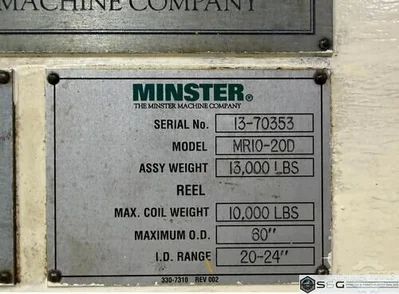

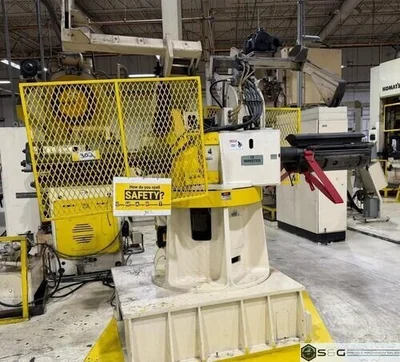

6" Thick Bolster Plate20" Wide WindowsFloor Standing with Vibro-Dynamic Floor PadsMinster Conventional Coil Feed Line Specifications:10,000 lbs. Coil Weight Capacity (per side)20" Maximum Coil Width.110" Capacity at Full Material Width.020" Minimum Thickness Material.200" Maximum Thickness at 5" Width20"-24" Coil I.D. Range60" Maximum Coil O.D.Left to Right Feed Direction60-600 IPM Line SpeedMinster Conventional Coil Feed Line Equipment and Features:Minster Pull Off Double End Coil Reel Model# MR10-20D, SN/ 13-70353Three leaf mandrel coil reel per sideCoil reel keeper arms Hydraulic mandrel expansionAir drag brakes mounted on main coil reel spindlesOutboard air regulators for drag brake adjustmentsHydraulic threading drives for jog forward and reverseHydraulic operated coil hold down armsMotorized coil hold down arm end wheelsAir operated turret locking pinHydraulic turret rotationSelf Contained Hydraulic Unit

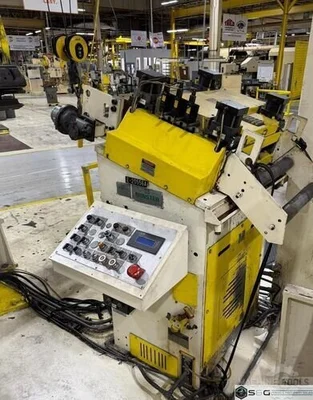

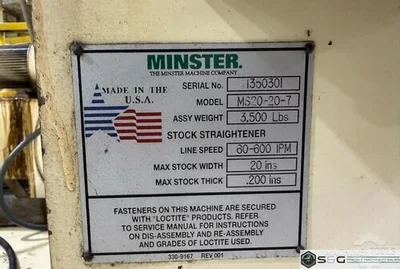

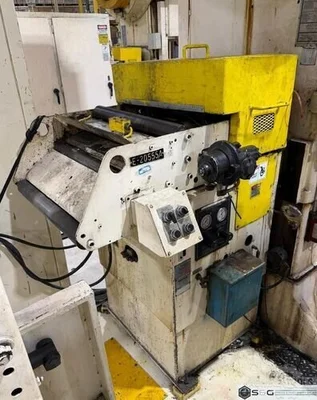

Minster Powered Coil Straightener Model# MS20-20-7, SN/ 13-50301
Entry and exit powered coil straightener pinch rolls with air operated adjustment
Outboard air regulator for upper powered coil straightener pinch roll air pressure adjustment
Seven coil straightening rolls x 2" diameter3.3" Diameter Air Actuated Pinch Rolls
Hydraulic upper straightener roll adjustments
Digital upper straightening roll depth displaysMotorized Stock Guide Adjustment with Digital Readout
Inclined powered coil straightening head
Cascade loop support section
Auto lubrication system
Variable speed powered coil straightener drive

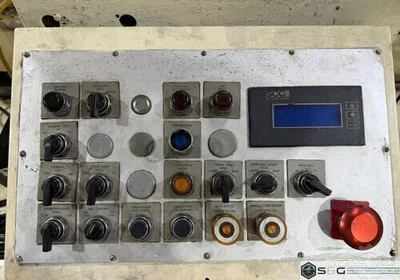

Common operator's control station for coil reel and powered straightener functions
Jog forward and reverse
Auto / Run cycle
Loop control
480 Volt

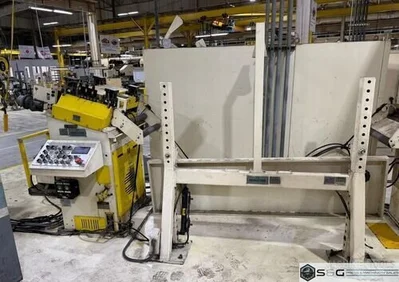

Minster Threading Table Model# MTT8-26S, SN/ 13-81111
Air ActuatedLength of Table 8' Long
Single Side - Bombay door styleUltrasonic Loop Control Sensor

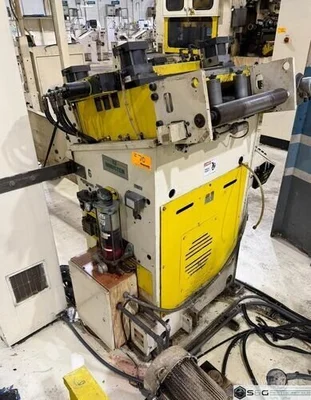

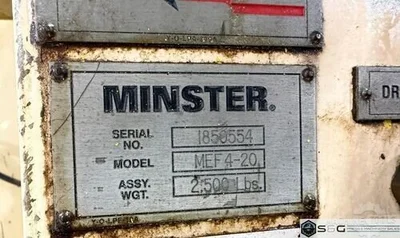

Minster Servo Roll Feed Model# MEF4-20, SN/ 18-50554
4 inch diameter upper and lower servo feed rolls48"-57" Pass Line Range
Air operated upper servo feed roll lift / pilot release
Cascade loop - material support rollersEnd Of Stock DetectorHydraulic Pass Line Mounting Clamps
Cabinet mounted with Motorized Pass Line Adjustment
Motorized Adjustable stock width edge guides
AC servo roll feed drive and controls
Job memory micro adjust batch count etc (Consult sales for complete details)

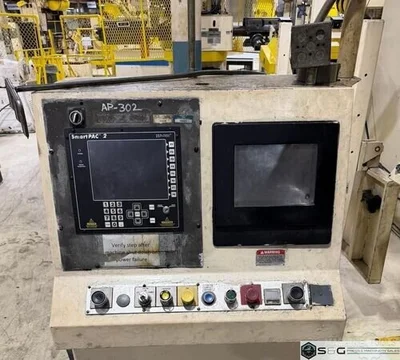

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
This 1996 150-ton Minster P2-150-60 "Piece-Maker" straight side stamping press offers a complete, production-ready solution featuring a fully integrated Minster 10,000 lbs. x 20" servo coil feed line. Built for precision and efficiency, the single-geared press delivers a 5" stroke, variable speeds from 45–120 SPM, and a 60" x 40" bed area with an 8-point gibbing system.

The system's fully integrated Allen-Bradley PLC controls store up to 50 tool programs, automatically adjusting shut height, SPM, and all feed parameters. The feed line includes a Minster MR10-20D double-end coil reel, an MS20-20-7 powered straightener, an 8' threading table, and an MEF4-20 AC servo roll feed. Available to be seen under power, this heavy-duty, floor-standing system is ideal for high-precision progressive die applications.
