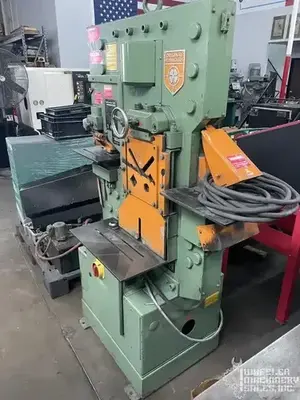

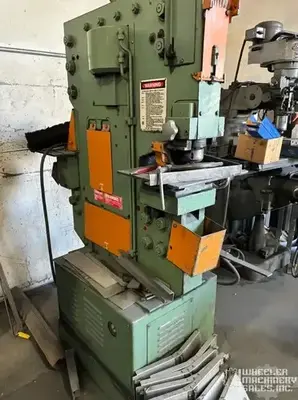

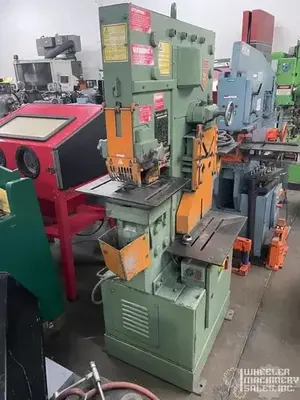

USED PEDDINGHAUS PEDDIWORKER 1050

Request a Quote
Add to Cart
Punching Capacity: 105 Ton
Throat Depth: 10"
Hole Capacity: 1-1/4″ to 3/4″
Punch Style: 152
Die Style: 131
Shear Cross Section Capacity: 3.31 sq. inches
Bar Stock Shear: Rounds – 3/4″ and 1-9/16″, Squares – 1″ and 1-9/16″
Flat Shear: Flat Stock – 16″ x 3/4″, Blade Length – 16-3/4″
Notcher with Square Coper: Flats thickness up to – 1/2″, Width of cut – 2″, Depth of cut – 2-3/4″, Angles & Tees – 3″ x 3/8″, Channels – 3″ to 5″, I-Beams – 3″ to 6″
Notcher with Triangular Notchers): Flats thickness up to – 1/2″, Depth of cut – 2-3/8″, Angles & Tees – 2-1/2″ x 3/8″, Channels – 3″ to 5″, I-Beams – 3″ to 6″
Bar Stock Shear: Flat Shear
Punching Station Attachment: Notcher
