USED HAAS VF-3SS
Specs

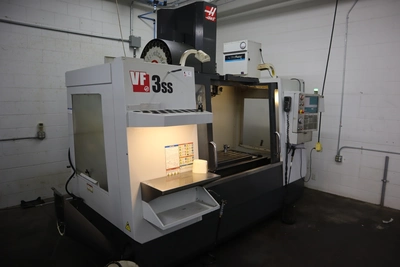

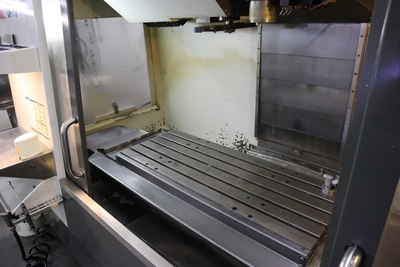

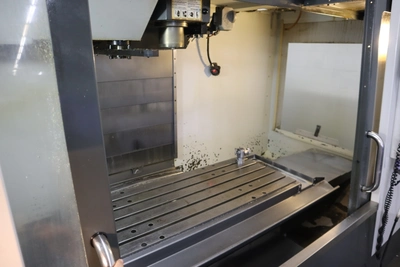

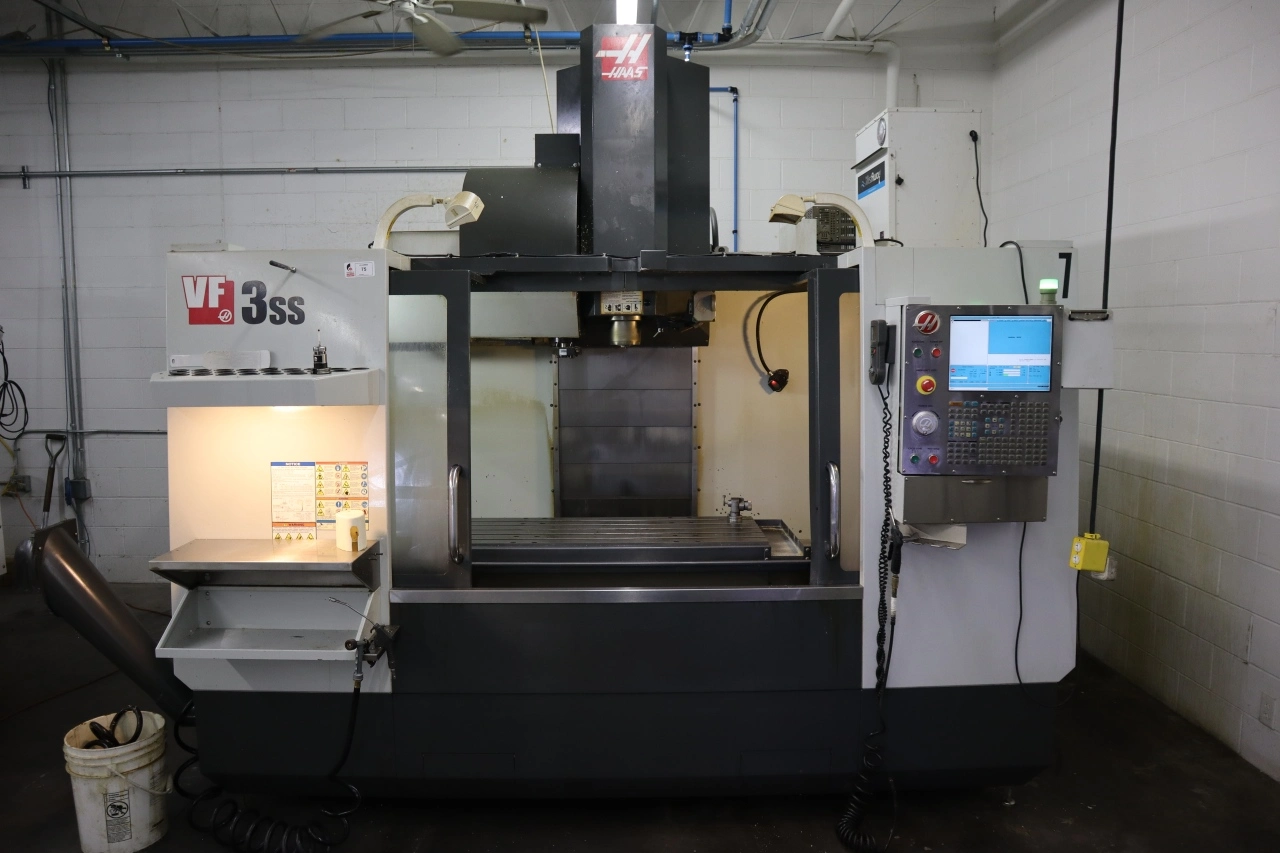

Lot 75: Haas VF-3SS CNC Vertical Machining Center, 12K RPM, Probing, TS Coolant, 4th and 5th Axis Drives - 2010
Electrics:
195-260 Volt, 3 Phase
Main Unit Approx Weight: 12500.00 lbs
Main Unit Dimensions (in inches): Length: 139.00" Width: 110.00" Height: 117.00"
Components:
Machine Shipping Dimensions: Length: 122.00" Width: 98.00" Height: 98.50"

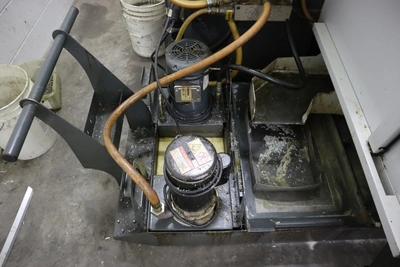

TS Coolant System: Length: 36.00" Width: 24.00" Height: 36.00"
Coolant Tank: Length: 80.00" Width: 20.00" Height: 18.00"
Specs:

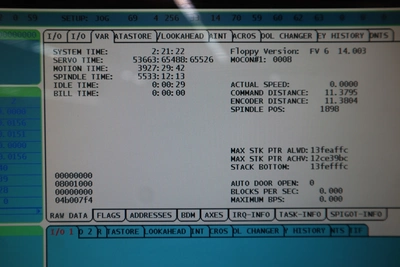

Machine Control: Haas MainCon CNC COntrol

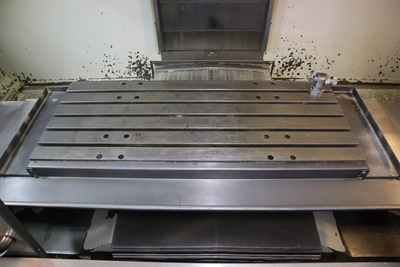

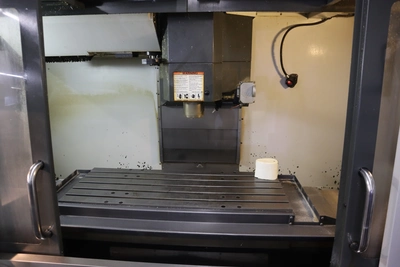

Table Size: 48" x 18"
Machine Travels (X/Y/Z): 40" x 20" x 25"
Spindle To Table Distance: 4.2"- 29.2"
Table Capacity: 1,750 LBS
Spindle Taper: CAT 40
Spindle Speeds: 12,000 RPM Max
Transmission: Direct Inline Drive
Rapid Traverse Rate (X/Y/Z): 1,400 IPM
Maximum Cutting Feed Rate: 833 IPM
Tool Changer Style: Side Mount, Twin Arm
Tool Changer Capacity: 24+1
Spindle Drive: 30 HP Vector Spindle Drive
Power Requirement: 208/240V, 3Ph
Seller Company: Columbia Precision Machine
Seller Contact: Machinesused Auction Phone: (763) 745-1166
Location Contact: Machinesused Auction Phone: (764) 745-1166
Inspection Date & Time: Friday, September 25, 2026, 9AM to 4PM or By Appointment
Dock Door: 118 "X x 107"H Ground Door, 84"W x 108"H Truck Level Dock Door
Loading Dock: Gound and Truck Level Doors
Removal Dates and Times: This item must be removed between Monday, October 5, 2026 and Thursday, October 8, 2026
Equipped With

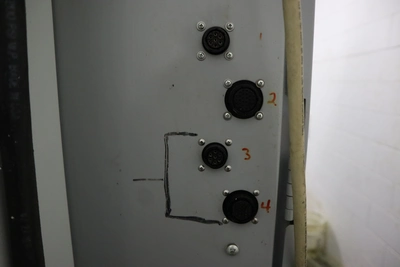

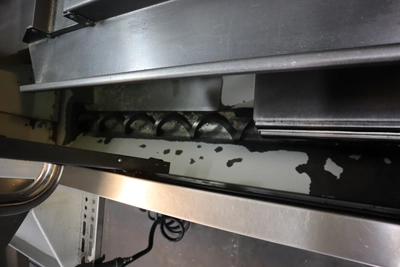

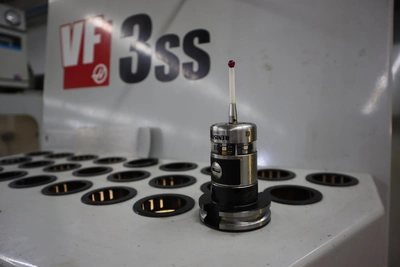

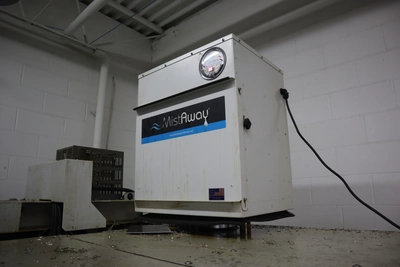

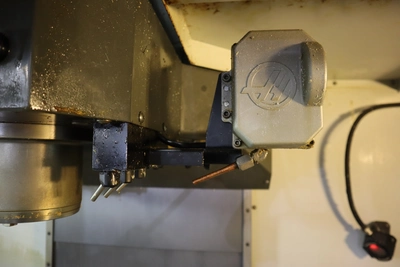

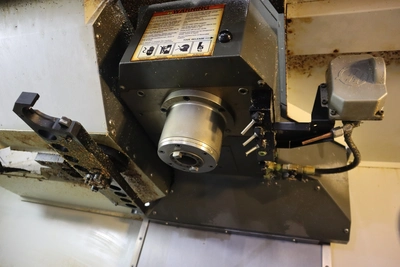

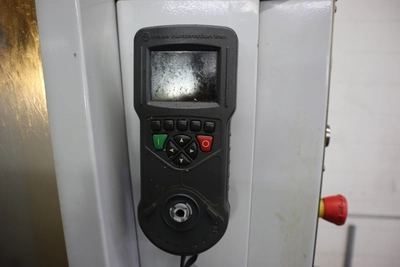

Haas MainCon CNC Control, 12K Max Spindle RPM, CT 40 Spindle Taper, 24+1 Automatic Twin-Arm Tool Changer, Haas Probing System with Renishaw Tool and Parts Probes, 300 PSI Thru-Spindle Coolant, 4th and 5th Axis Brushless Drives and Connectors, ChipAuger, Coolant System, Coordinate Rotation and Scaling, Spindle Orientation, Rigid Tapping, Programmable Coolant Nozzle, Chip Auger, Remote Jog Handhwheel (Remote Pendant knob needs repair), Macros, Mist Away Mist Collector. NOTE: Currently Haas X-Axis Drive Fault
