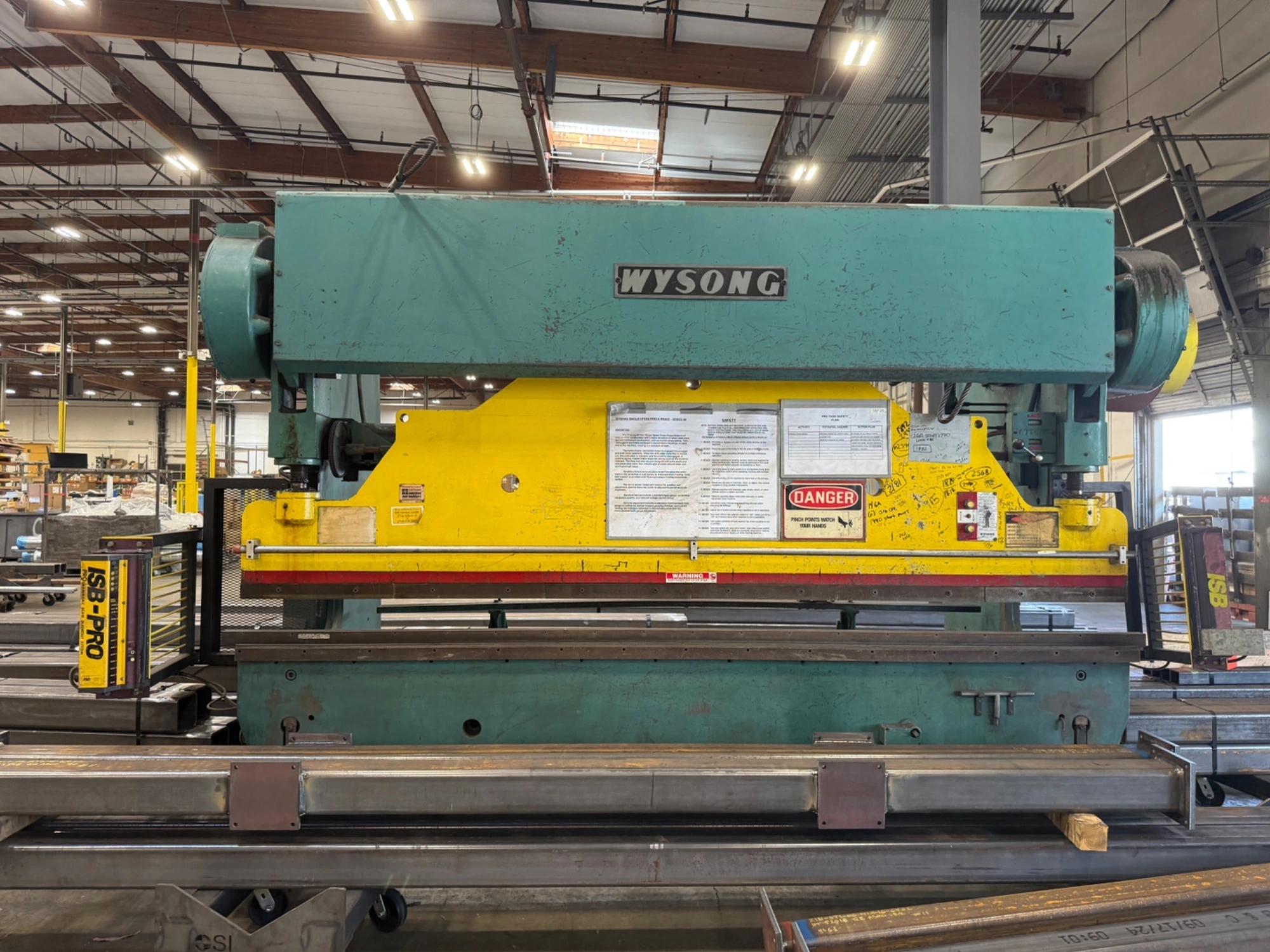

Wysong 90-10 mechanical press brake, 90-ton capacity, 12' overall length with 10' between housings, and a 3" stroke. Ideal for heavy-duty applications. Used condition.
| Tonnage | 90 T | 81.647 t |
| Type | MECH | MECH |
| Overall Length | 12' | 3.7 m |
| Between Housings | 10' | 3 m |
| Stroke | 3" | 76.2 mm |
WYSONG 90-10 Mechanical Press Brake #7795 #2
SPECIFICATIONS:
8' x 3/16" Mild Steel
10' x 10 Ga. Mild Steel
12' x 12 Ga. Mild Steel
Bending Capacity: 90 Ton
Overall Length: 144"
Between Housings: 126"
Length of Stroke: 3"
Adjustment: 4"
Max. Die Space: 12"
Main Motor: 5 HP
Electrics: 220 / 440 Volt, 3 Phase
Overall Dimensions: 185" x 66" x 99" H
Approx. Weight: 18,200 lbs.
EQUIPPED WITH:
ISB-PRO Light Curtains
Brake Monitor
32" Front Operated Manual Back Gauge
Motorized Ram Adjustment
